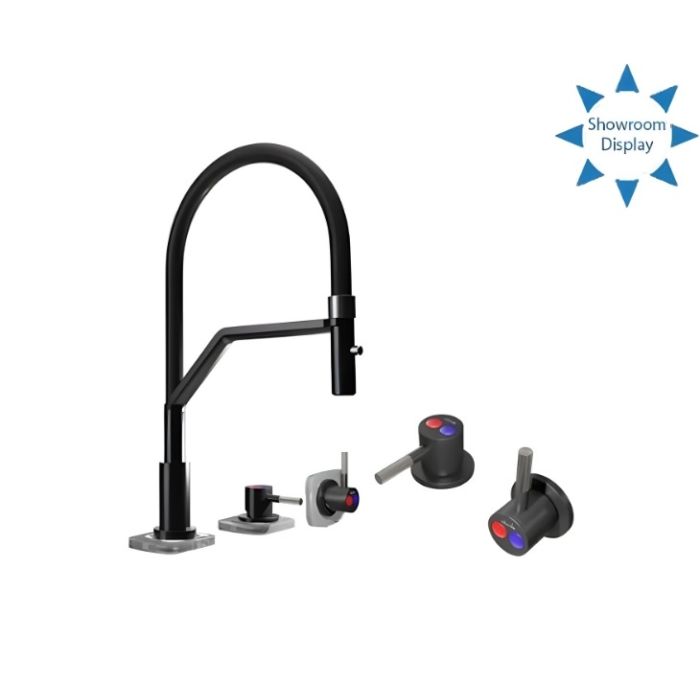

Abode LivInc - Semi Pro 2 Part

Abode LivInc was designed for inclusive living tap control valve can be mounted horizontally in the worktop / sink, or vertically in the front of a worktop lift, with braille temperature indicators and high-contrast touch points for the visually impaired.

The taps monobloc design features a flexible pull-out spray for extended reach, that magnetically parks in the tap frame.

Key benefits:

• Ergonomic closed fist operation
• High-grip surfaces for ensuring ease of use
• Vertical or horizontal control valve installation
• Braille temperature indicators
• High-contrast touch points
• Intuitive jet and spray function for ease and precision
• Flow limited design for water saving

Approvals:

• DDA-Compliant

Technical details:

• Overall Length (mm): 200
• Overall Height (mm): 420
• Overall Width (mm): 271
• Spout Exit Reach (mm): 225
• Spout Exit Height (mm): 162
• Spout Rotation: 0 - 120°C limited
• Tap Hole Size (mm): 35
• Tap Hole spacing (mm): 120-750
• Fixing Range (mm): 0 - 40
• Min. operating pressure: 0.5 bar
• Max. operating pressure: 5.0 bar
• Min. litres per minute: 1.7
• Max. litres per minute: 5
• Inlet connections (mm): 450 flexible hoses ½ BSP and M8
• Fitted with a 5 litres per minute flow limiter
• Supply: Suitable for high pressure systems
• Construction: Brass with black colour
• Currently undergoing testing for WRAS approval

Warranty:

• 5 year manufacturer warranty subject to terms and conditions
• 1 year decorative finish
• 1 year O-rings

Please note:

• 1x Tap Control Valve is supplied for Front or Deck mounting
