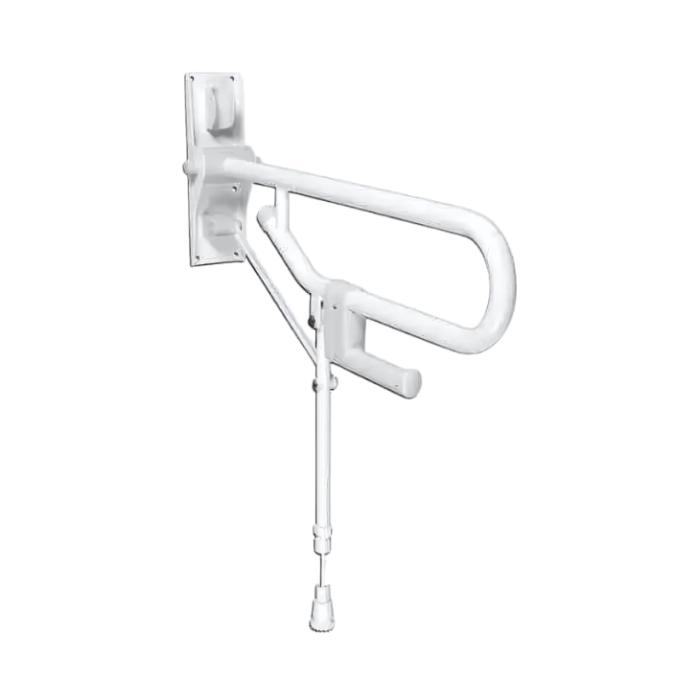

AKW 1800 Series - Hinged Fold-up DBL Hairpin Rail, TRH, ADJ Leg (32mm) White

Product Code: 01830WH

Delivery in 2–3 working days

Collection in Ready in 2 hours

£76.99 Incl. Vat
£64.16 Excl. Vat

The AKW 1800 Series 765mm long hinged fold-up double hairpin grab rail, adjustable leg and TRH. Constructed from high quality materials with a leg that provides additional strength and stability.

Key benefits:

  • Provides support for multi-user bathrooms
  • Designed to fold neatly back to the wall - Ideal when space is limited
  • Accommodates user-specific height requirements
  • Epoxy resin coating and rust inhibitor treatment - Ensures durability
  • Doc M compliant
  • Leg can be cutdown to length
  • Optional toilet roll holder
  • Matching AKW grabrails and accessories also available

Technical details:

  • Overall length (mm): 765
  • Rail diameter (mm): 32
  • Overall projection from the wall (mm): 765
  • Height to top of rail (mm): 680
  • Exposed fixings on wall plate
  • Tested to a maximum load of 30 stone / 200kg this refers to grabrail only

Warranty:

  • 1 year manufacturer warranty

Please note:

  • Fixings are not included and the installer should select the correct fixing based on wall type

Manufacturer AKW / Contour
Length (mm) 765
WC Projection (mm) 540/550
Colour White (RAL 9016)
Surface Finish Polyester epoxy resin powder coated
Type Hinged Arm Support w/ Leg & TRH
Material Mild Steel
Mounting Wall
Fixings Exposed
Adjustable Fixed Height (No Adjustment)

DEBUG: Installation guides section loaded

No content found for installation_guides attribute

Delivery timeReady in 2 hours if ordered by 1.30pm
Returns Status Returnable in 14 days

Reviews

Who Viewed This Also Viewed
Granberg Wall Mounted Motorised Workbench Module 6300LA-CT - Choice of Widths 790-1590mm
As low as £0.00 £0.00

Delivery in 2–3 working days

Collection in Ready in 2 hours

Geberit Sigma30 Flush Plate for Stop-and-Go Flush, Screwable - Black Matt/Gloss chrome-plated
£176.40 £147.00

Delivery in 2–3 working days

Collection in Ready in 2 hours

AKW Peg Lever Washbasin Taps - Chrome
£141.60 £118.00

Delivery in 2–3 working days

Collection in Ready in 2 hours

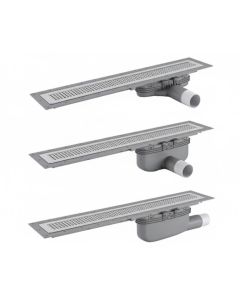

Purus Line Living Plus 600mm Linear Drain, Vinyl Floor, Stainless Steel Chess Design Grid - Outlet Choice
As low as £485.28 £404.40

Delivery in 2–3 working days

Collection in Ready in 2 hours

AKW MM4 (91166) Formerly Contour WF9 White Shower Enclosure, PET Glazing – MAX. A 2000 / B 1500mm
£390.00 £325.00

Delivery in 2–3 working days

Collection in Ready in 2 hours

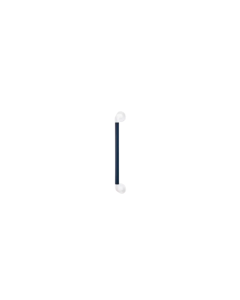

AKW - 300x32mm Straight Plastic Fluted Grab Rail - Dark Blue
£11.86 £9.88

Delivery in 2–3 working days

Collection in Ready in 2 hours

PBA Programma CAP 600mm Grey Concealed Drop Down Support Arm for Stud Walls
£735.60 £613.00

Delivery in 2–3 working days

Collection in Ready in 2 hours

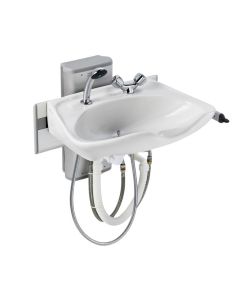

Armitage Shanks Salonex Hairdressing Kit with Lever Control, Manually Height Adjustable with Gas Cylinder - Wall
