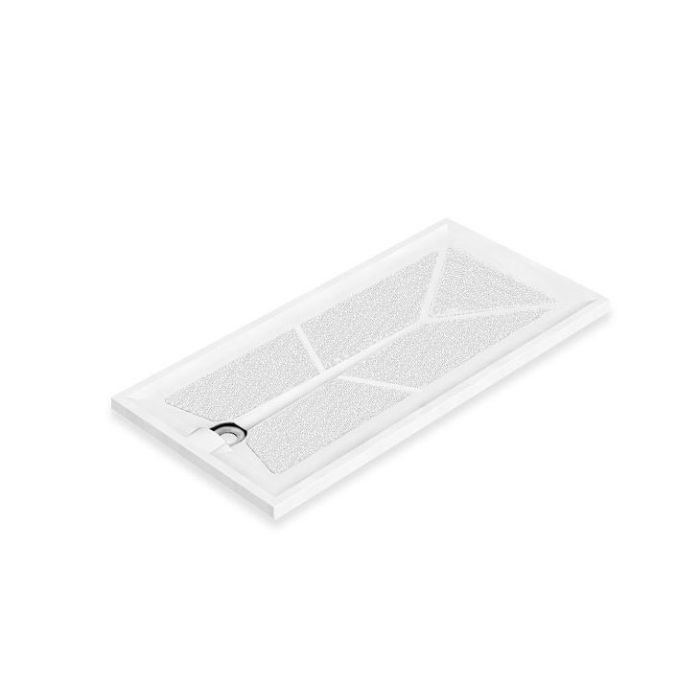

AKW Braddan Level Access, Recessed, Semi-recessed or Surface Mounted SHWR Tray - Choice of Size, Waste, OPT Ramps
Product Code: BRADDAN
AKW Braddan 40mm thick shower trays for corner and alcove full level-access, surface-mounted or step-in shower enclosures (order doors separately). The 1800mm long tray is supplied with a ‘trim to length’ kit, allowing up to 300 mm to be cut off (trimmed trays are suitable only for alcove installations, not corners). Slip resistance textured surface for added safety. A strong tray with integral added strength. Suitable for all floor types: timber/wooden, concrete and screed. No under-tray foaming required. Central waste position at the end of the tray, with a 35mm fall inside the tray. Includes 3x separate tiling upstands to ensure a watertight seal between tray and tiles and secure fitting of tray. Compatible with AKW shower enclosures and door sets from the Larenco, Level Best, Silverdale, and Standard screen ranges. Choice of gravity and pumped wastes and optional ramps.
- Product Code
- BRADDAN
Delivery in 2–3 working days
Collection in Ready in 2 hours
£432.00
Incl. Vat
£360.00
Excl. Vat
Incl. Vat
Excl. Vat
The AKW Braddan shower tray is available in a large range of sizes and offers easy installation. The tray is 40mm thick and can be installed in a corner or alcove and is suitable for concrete, screeded and wooden floors. Create a level access, semi-recessed or a surface-mounted, low-level threshold step-in shower tray area.
The trays are unhanded with a centre waste outlet with a choice of gravity and pumped wastes.
The 1800mm long trays are supplied with a ‘trim to length’ kit, allowing up to 300mm to be cut off. Note: trimmed trays are only suitable for alcove installations, not corners.
Create the perfect shower room with the addition of a compatible AKW shower enclosure or door set from the Larenco, Level Best, Silverdale® and Standard Screens ranges.
Key benefits:
- Suited to all floor types: Concrete, screeded and wooden floors
- Can be installed as a full level-access, semi-recessed or surface-mounted step-in shower enclosure (order shower doors or screen separately)
- The tray creates a visually defined showering area useful for those with visual impairment
- Slip resistance textured surface a safer showering experience for the user
- Excellent water drainage with a 35mm fall inside the tray
- 40mm thick multi-purpose tray
- Integral added strength for extra peace of mind
- No under tray foaming is needed for quick and easy installation
- Weight limit: 30 stone/190kg
- Non-handed shower trays for both left or right-handed installations
- Choice of gravity or pumped wastes
- The 1800mm trays can be cut down to 1500mm, supplied with a trim to length kit
- Three separate tiling upstands supplied. Ensures a watertight seal between tray and tiles and secure fitting of tray
- Pipe duct kits available to avoid the re-routing of existing pipework (order separately)
- Optional ramps: 20mm and 40mm straight/corner kits for semi-recessed and surface-mounted installations
Waste options:
19mm Standard Gravity Waste (GW19)
- AKW Product Code: 25125
- 19mm water trap
- Built in strainer - Catches hair and debris which can be removed for cleaning
- Top access, easy to clean
- Depth below tray: 93mm
- Lifetime Warranty
TDTW 50 Gravity Waste
- AKW Product Code: 25126
- 50mm water trap
- Built in strainer - Catches hair and debris which can be removed for cleaning
- Top access, easy to clean
- Depth below tray: 124mm
- Lifetime Warranty
Standard (15mm) pumped Waste
- AKW Product Code: 25122
- To be used in conjunction with a AKW DigiPump shower waste pump
- Top access, easy to clean
- 15mm John Guest Speedfit Outlet for easy installation
- Depth below tray: 36mm
- Pump not included
PW50 (22mm) JG Standard Pumped Waste
- AKW Product Code: 25405
- To be used in conjunction with a AKW DigiPump shower waste pump
- Top access, easy to clean
- 22mm outlet
- John Guest Speedfit Outlet for easy installation
- Depth below tray: 44mm
- Pump not included
Technical details:
- Tray height: 40mm
- Material composition:
- - GRP (Glass-reinforced plastic) all trays except:
- - SMC (sheet moulded compound) 1200x700; 1200x820; 1300x700 & 1420x700mm
- Weight limit: 30 stone/190kg
- Fall to Waste: 35mm
- Suitable for Gravity and Pumped wastes
- Screen Compatibility: Larenco, Level Best, Silverdale® and Standard Screens
- Product Code: 25000 - 20mm Straight Ramp (length 1800mm)
- Product Code: 25001 - 20mm Corner Ramp (for 900x900mm tray)
- Product Code: 25002 - 40mm Straight Ramp (length 1800mm)
- Product Code: 25003 - 40mm Corner Ramp (for 900x900mm tray)
Warranty:
- Lifetime Warranty (please refer to AKW’s terms and conditions)
Manufacturer Product Codes:
- Tray only Product Code: 16522, 16470, 16472, 16000, 16528, 16071, 16196, 16360, 16006, 16012, 16045, 16520, 16013, 16050, 16022, 16058, 16063, 16495, 16531, 16442, 16028, 16039, 16065, 16099
- Tray with GW50 Gravity Waste - Product Code: 16522W, 16470W, 16472W, 16000W, 16528W, 16071W, 16196W, 16360W, 16006W, 16012W, 16045W, 16520W, 16013W, 16050W, 16022W, 16058W, 16063W, 16495W, 16531W, 16442W, 16028W, 16039W, 16065W, 16099W
| Manufacturer | AKW / Contour |
|---|---|
| Brand / Model | AKW - Braddan |
| Cut to Length Range (mm) | 1500-1800 |
| Tray Size (mm) | 800x800, 820x820, 900x900, 1000x700, 1000x800, 1000x1000, 1100x800, 1200x650, 1200x700, 1200x760, 1200x820, 1200x900, 1300x700, 1300x820, 1400x900, 1420x700, 1420x820, 1500x700, 1500x820, 1600x700, 1700x700, 1800x700, 1800x820, 1800x900 |
| Handing | Unhanded |
| Entry Configuration | Front Entry (Alcove), Corner Entry |
| Step-in Height (mm) | Level Access - 0, Semi-recessed - 20, Low Level Step-in - 40 |
| Thickness of Tray (mm) | 40 |
| Waste Compatibility | Gravity Waste, Pumped Waste |
| Tray Edge for Floor Finish | Not Applicable |
| Ramp or Step Available | Ramp |
