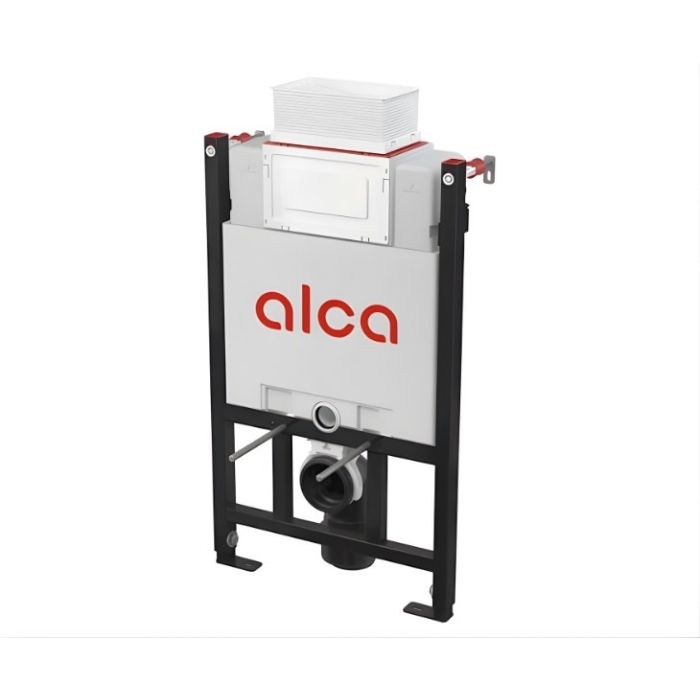

Alca 0.85m Pre-Wall Frame & Cistern, Top/Front Actuators, 170 to 250mm Max. Depth
Product Code: AM118/850
Alca self-supporting frame for mounting wall hung WC pans in front of a support wall or within a partition framed wall with a plasterboard finish and a floor thickness of 0-200mm. Installation depth of 170 to 250mm, frame width 510mm x 877mm high. For toilet pans with a connecting pitch of 180mm or 230mm, installed WC pan height to top of seat 410mm. The front and top actuators are compatible with ALCA Basic Flush Plates. Prepared for connecting a bracket with a DG 1/2” conversion for bidet seats, shower toilets, and sprays. Includes dispenser for water conditioning tablets. 15-year warranty.
- Product Code
- AM118/850
Delivery in 2–3 working days
Collection in Ready in 2 hours
£340.20
Incl. Vat
£283.50
Excl. Vat
Incl. Vat
Excl. Vat
Alca self-supporting frame for mounting wall hung WC pans with an Installation depth of 170 to 250mm, frame width 510mm x 877mm high, in front of a support wall or within a partition framed wall with a plasterboard finish and a floor thickness of 0-200mm.
The front and top actuators are compatible with ALCA Basic Flush Plates.
For toilet pans with a connecting pitch of 180mm or 230mm. Prepared for connecting a bracket with a DG 1/2” conversion for bidet seats, shower toilets, and sprays.
Key benefits:
- Dual flush independently adjustable with hygienic reserve
- Compatible with ALCA Basic Flush Plates; Not Sensor or NIGHT LIGHT
- Polystyrene insulation prevents condensation forming and dampens vibrations
- Installation depth 170mm
- Installation depth adjustable from 20-95mm
- Tilt the cistern for easy installation in timber frames
- Can be installed in a partition, in front of the bearing wall
- The fitted frame should be covered with a plasterboard panel
- Adjustable anchor feet and a spring-lock system, range of 0-200mm
- The service opening cover simplifies assembly and prevents the penetration of moisture and impurities
- Suitable for installation of remote or sensor flushing
- The cistern is made of one piece, thus ensuring 100% impermeability
- Sliding rail holder for the waste connector can be set to eight positions between 0-93mm
- Water supply from the rear/top
- Angle valve with the ability to connect to the Mepla piping system
- Dispenser for WC cistern tablets included
- Maintenance work without using any tools
- Frame material: powder-coated metal
Approvals:
- Kiwa Approved
- Fixings for WC pan: threaded rod 2x M12, 4x washers, 2x covers, 2x nuts, & 2x thread protectors
- Fixation set: 4x screws Ø8×60m, and 4x dowels Ø12
- Elbow waste connector HT 90/90 polyethylene, PE-HD
- 2-piece cover of the service opening is simply adjustable
- Cistern with fill and flush valve
- Waste reduction HT 90/110 polyethylene, PE-HD
- End-caps for protecting the connecting holes during installation of the system
- Set for inserting toilet tablets
- Self-supporting frame
- Fittings 1/2" water connection with the integrated angle valve Schell 1/2–3/8"
- Drainage seal, PP connector, connector seal
- Inlet seal, PP outlet, wrapping seal
Warranty:
- 15 year manufacturer
| Manufacturer | Alca |
|---|---|
| Flush Plate Type | Alca Flush Plate Basic , Not Alca Sensor Flush Plate, Not Alca Night Light Flush Plate |
| Frame Size (mm) | Frame Height: 877 |
| Wash/Dry Bidet/Toilet - Compatible | Yes |
| Style / Type | Wall-hung WC |
| Max. Load (kg / St) | 400 / 62.9 |
| Technical Info. | Water Connection: G1/2", Water Pressure: 0.05 - 1.6 MPa, Recommended Water Pressure: 0.3 - 0.5 MPa, Big Flush: 6 - 9 l, Small Flush: 2.5 - 3.5 l, Factory Setting - Large Flush: 6 l, Factory Setting - Small Flush: 3 l, Hygienic Reserve: 3 l, Cistern Water Volume: 9 l |
| Installed WC Pan Height (mm) | 410 |
| Warranty | 15 years |
| Flush Operation | Front or Top Actuator |
| Approvals | Kiwa Approved |
