AWS Grooved AL Trans. THR 139.7 W x 6.4 to 12.7mm H - Choice of Length 914 to 3048mm

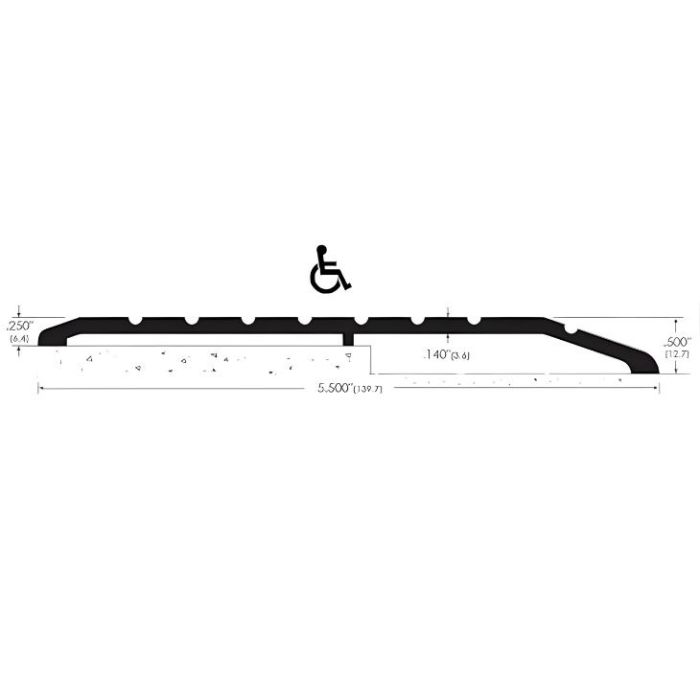

Aluminium grooved transition door threshold, that bridges from 12.7mm high on one side to 6.4mm high on the other, with a total width of 139.7mm (5.5").

The 3.6mm gauge aluminium allows you to drill and screw the threshold into concrete without the difficulties you are likely to find using lighter materials - such as buckling under heavy loads or loose fixing screws.

Key benefits:

• For internal and external doors
• Aluminium mill finish
• Grooved top
• Simple to install
• Fixing holes undrilled
• Suitable for DDA applications
• Ideal for commercial and domestic installations
• Non flammable

Technical details:

• Choice of Length: 914mm (3 ft), 1219mm (4 ft), 1829mm (6 ft), 2134mm (7 ft) and 3048mm (10 ft)
• Width: 139.7mm (5.5")
• Height: 6.4mm (0.25") on one side, 12.7mm (0.5") on the other
• Material: 3.6mm (0.14") thick medium gauge aluminium

Installation Instructions:

• Measure and cut threshold to size as required
• Notch as necessary, to suit door frame
• Caulk underneath and around edges of threshold for moisture control
• Attach threshold to floor surface with screws provided
