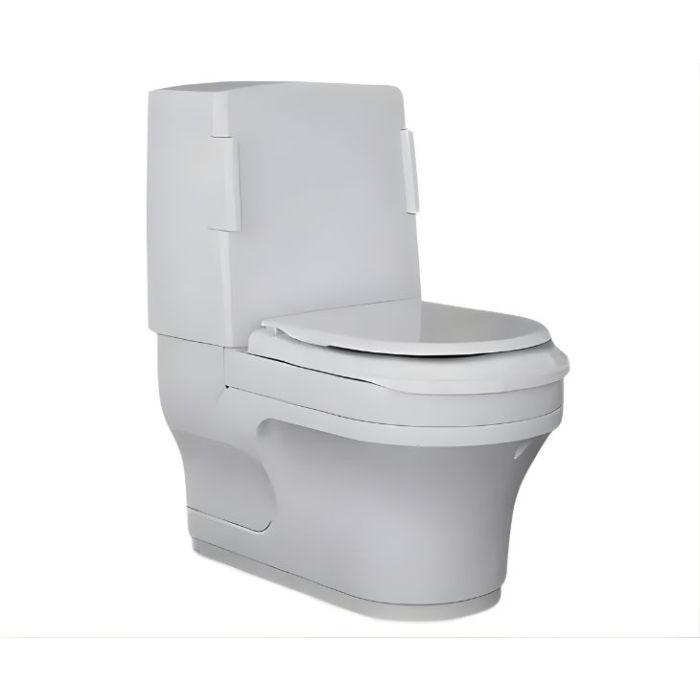

Closomat Palma Vita Shower Toilet, with Options

The Closomat Palma Vita is a floor standing automatic shower toilet that provides washing, flushing and warm air drying from one simple operation.

User-friendly, the Palma Vita is also ideal for those who have restricted use of their hands.

By reducing hand contact, it also improves hygiene for all users.

Key benefits:

• Combines functions of a WC and bidet with addition of drying air
• Improves personal hygiene - cleaning with warm water not paper
• Simultaneous flushing and washing (a unique feature)
• Unique one-touch system - allows the user to operate the toilet simply by pressing and releasing the elbow pads mounted either side of the cistern
• Customisable to suit each individual's needs
• Height adjustable skirt elegantly conceals the raised plinths
• Can be used at all times as a conventional WC
• UK made in a dedicated plant

Douche arm selection:

• Standard douche arm
• Extended single spray douche arm - for the larger user
• Extended twin spray douche arm - for female users
• All douche arm options are included in the price of the Palma Vita
• For more information, please refer to the 'Douche Arms Specification Guide' in the 'Installation and Help Guides' section above

Optional extras:

Integrated Fold-down Support Arms

• Robust and secure support arms designed and manufactured specifically for the Palma Vita
• The support arms fold out of the way to aid side transfer from a wheelchair and can further aid the user's stability
• The arms are ideal for installations where the wall construction is poor
• Safe working load: 190kg/30st
• Note: Maximum concealed plinth height 50mm when arms are fitted to ensure stability of the toilet
• The fold-down support arm brackets are pre-fitted, but the arms are supplied loose for site installation
• For more information, please refer to the 'Integrated Fold-down Support Arms - Technical Data Sheet' in the 'Installation and Help Guides' section

Soft Arm Sleeves

• Easy to fit, soft arm sleeves provide a comfortable and hygienic hand grip
• Dark blue in colour - aids the visually impaired
• For use in conjunction with the integrated support arms

Touch Sensitive Hand / Foot Switch (HTFS)

• This device is for users who are unable to use the standard elbow pads
• Air operated, no electricity is required to operate it, only very light pressure
• Includes wall mounting bracket
• Can be placed on the floor or handheld

Proxy Switch

• Making use of "passive technology", the proxy switch allows users with little or no grip to activate the unit, simply by pressing their hand / body part in front of the sensor

Infrared Remote Control

• This simplistic 'push and go' style infrared control provides a versatile option which is ideal for use by carers
• Includes wall mounting bracket

Concealed Floor Plinths

• Plinths for raising the toilet height
• For use with a shower chair or to aid direct wheelchair transfer
• The plinth is concealed by the toilet's height adjustable skirt
• Note: If ordering the Integrated Support Arms - The maximum allowable plinth height is 50mm

Rear Infill Panel

• The infill panel has been designed to aid installations where pipe-work inhibits the Palma Vita from being located against the wall
• The infill panel is 100mm taller than the Palma Vita - it must be cut from the bottom to suit the toilet height
• Available in a range of thickness sizes: 25, 50 and 75mm

Seat Upgrade Options:

• Upgrade options available are junior, adult, and adult horseshoe open fronted soft seats
• All soft seats are supplied in a dark blue colour to aid the visually impaired and with a white toilet seat lid
• For more information, please refer to the 'Toilet Seat Dimensions' in the 'Installation and Help Guides' section above

Junior soft seat:

• - Aperture 165mm wide x 250mm depth

Adult soft seat:

• - Aperture 225mm wide x 291mm depth

Adult horseshoe open fronted soft seat:

• - 83mm open front width. Aperture 223mm wide x 384mm overall depth

Warranty and commissioning:

• 1 year manufacturer warranty as standard
• Options to increase the warranty - please select above if desired
• Commissioning by Closomat is included in the price - once installed, please contact them directly to arrange a site visit
• Warranty period starts once commissioning has been completed

Technical details:

• Overall dimensions (mm): 869 H x 451 W x 730 D
• Standard installed height to the toilet pan rim (mm): 410
• Standard installed height to the Palma Vita ‘standard’ toilet seat (mm): 445
• Safe working load: 190kg/30st
• Electric supply: 220/240v 50hz single phase AC supply
• Supplied with 1000mm long, three core (live/neutral/earth) insulated 3183Y-1-white control flex-cable
• Compliant with current Electrical Regulations - Can be fitted in Zone 1 of a bathroom/wetroom
• Electric loading: 4.5A-4.9A, maximum power 1300 watts
• A 10A fused spur is required for isolation with an earth connection
• A fused spur is required for isolation with an earth connection
• IP Rating: IPX4
• WRAS approved
• Requires 15mm COLD inlet feed from mains supply or a storage vessel
• Flow rate - 8 litres/minute
• Cistern capacity (litres): 6-9, set at 6 litres
• Boiler capacity (litres): 1.7
• Overflow: Internal overflow which discharges into the WC pan
• Pan has a horizontal spigot standard 100mm diameter outlet, suitable for standard pan connection fittings
• In the event of a power failure, the Palma Vita operates like a standard flush toilet

Soil connections suitable for the Palma Vita (not included):

• S-Trap (vertical fall) wall to centre of pipe from 70-230mm max.
• P-Trap (horizontal) floor to centre of pipe 200mm max.
• The Palma Vita is suitable for all turned trap outlets, through purpose made removable side covers on lower level
• Download the PDF Installation Instructions for more information

Please note:

• Due to the custom nature of this item and hygiene reasons this product is non-returnable
• The Palma Vita must not be in direct line with the shower spray in a bathroom or shower room installation
• Some form of partition between a shower and the Palma Vita is advisable to prevent any water spraying directly onto the equipment
• A shower should not be used in conjunction with the Palma Vita - under no circumstances should a user shower whilst seated on the Palma Vita
