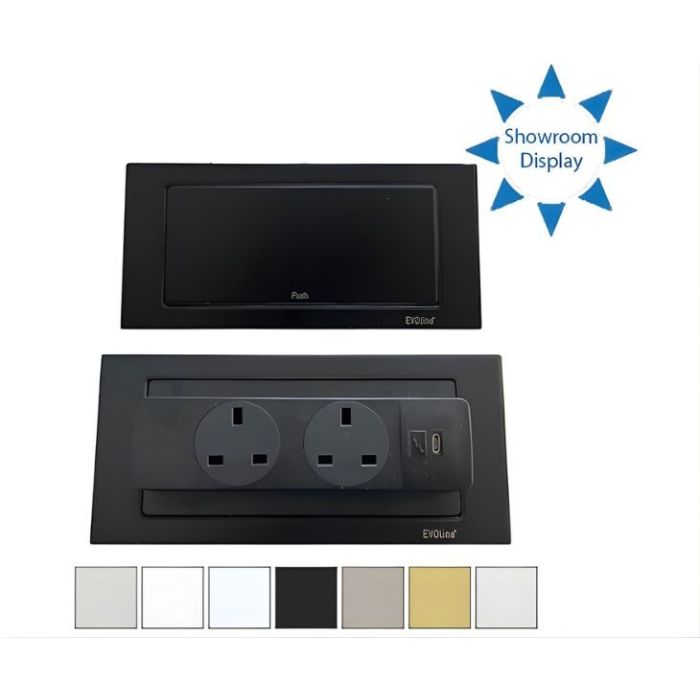

EVOline BackFlip - Choice of Colour

EVOline BackFlip, choice of colour. The thin panel allows the user with a light touch to turn, upwards or down wards the. Protected against water running in from the sides from the charger and power sockets location far above the panel.

Quick and easy to install due to the quick assembly process, snap in the mounting plate and it is done.

Key benefits:

• Thin panel for concealing
• Push lightly with a finger to flip
• USB charger and power sockets are protected against water
• Low installation depth allows for mounting above drawers or devices
• Easy to install due to the quick assembly process
• Possible for a flush mounted installation

Technical Details:

• Choice of colour - Please see image gallery for the range of colour combinations and materials
• Installation depth (mm): 53
• USB C
• 2 Socket
• Cut-out width (mm): 88
• Cut-out length (mm): 215
• The unit will not be installed flush with the worktop and will be raised by ca. 3-5mm when closed
• Nominal Current V AC: 230
• Nominal Current A: 5
• 1x USB type C; 5V/2.1A - Max 10.5W
• Input power W Max: 1150
• Protection rating: IP 20

Warranty:

• 1-year warranty

Note

• Please note that you should not pre-cut your cut-out prior to the delivery of the product to ensure a correct fit
