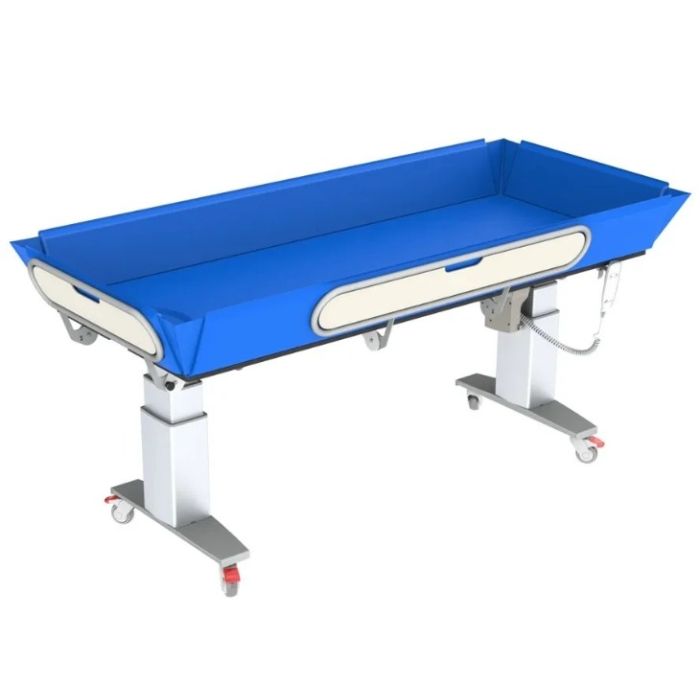

Granberg 346, Height ADJ, Mobile Shower Trolley, Rechargeable Battery - 1400x700mm

The Granberg 346 is a freestanding motorised, rechargeable battery powered 400mm height adjustable changing trolley with folding sides and a water-resistant washing / shower area.

It has been designed with space beneath the work surface for carers and for mobile hoist systems.

It can be connected to a drain via the flexible hose. The trolley is fully mobile with lockable castor wheels.

Key benefits:

• 1400mm wide freestanding shower table with lockable castor wheels
• Stable construction
• Easy-to-use hand control with flexible cable
• Electrically height adjustable 590 - 990mm above floor
• 4x Folding gates
• Metal parts, powder coated stainless steel
• Nursing bench in laminate with mattress
• Folding gates with locking function
• Water-resistant laminate tabletop with ABS edging
• Connects to drain via flexible hoses
• 30mm thick mattress - all-welded with sealed surface
• Electronic components approved according to EN 60601-1 for medical electrical equipment
• Rechargeable battery operation
• The shower trolley is delivered assembled on a pallet

Standard equipment:

• Mattress
• Hand control with flexible cable
• 4x Folding gates with locking function
• Drainage hose
• Battery operation

Technical details:

• Installation: Freestanding
• Internal width (mm): 1400
• Overall width - end gates extended (mm): 1625
• Internal depth (mm): 706
• External depth - side gates extended (mm): 925
• Border height (mm): 200
• Mattress W x D x H (mm): 1400 x 700 x 30
• Speed of operation: 18mm / sec
• Height adjustment range above the floor (mm): 590 - 990
• Operation: Corded hand control
• Electrical connection: 230 V ~ 50 Hz 230 VA
• IP-class: IPX6
• Drainage connection: Flexible hose, length 1200mm, exterior diameter 46mm
• Max. user weight (kg): 200

Battery box:

• Continuous connection to power supply is not needed with battery operation
• The battery box is located between control box and power point
• Capacity: 1.3 Ah 24V
• Size W x D x H (mm): 106 x 138 x 68

Materials:

• Nursing table panel: 12 mm white compact laminate with black core
• Sheet-metal parts: Powder coated stainless plate - Grey
• Electronics: Components approved according to EN 60601-1 for medical electrical equipment
• Mattress: All-welded with sealed surface

Warranty:

• 3 year manufacturer warranty
• This product comes with a 5-year warranty against manufacturing defects when registered on Granberg's website. Without registration, our standard 3-year warranty applies

Returns: Please note:

• Due health and hygiene and infection control this product is non-returnable
