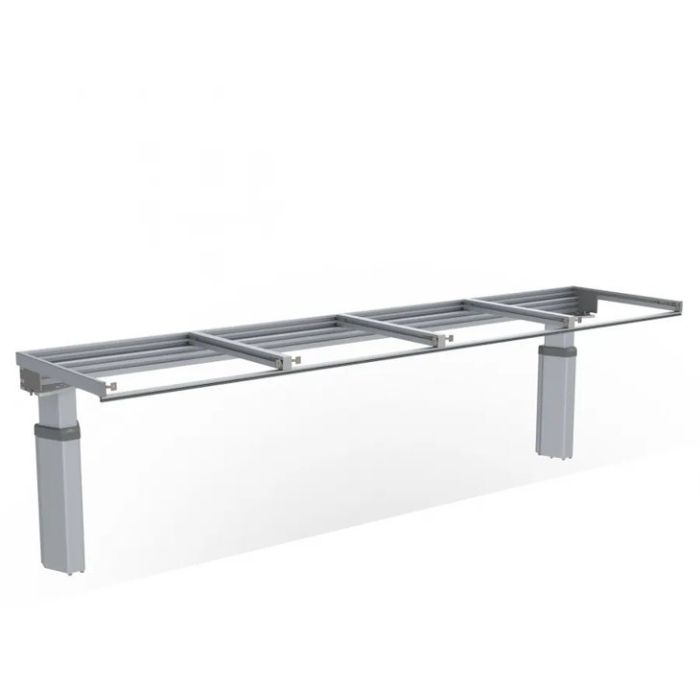

Granberg Baselift 6300LA, Wall, 40mm Front, ADJ Worktop Lift - 1801-2400mm

The Baselift 6300LA is an motorised wall mounted rise and fall worktop lift by renowned Swedish manufacturer Granberg.

The 40mm compartment frame height of the lift creates a height adjustable access solution to cater for both standing and seated users. The lift can be used separately or together with Granberg's wall cabinet lifts to totally adapt the kitchen. Open space is left below the work surface for the users knees and legs.

With a stepless height adjustment range of 300mm controlled by stylish mini-control buttons, changing the height of the lift is easy.

This version of the Baselift 6300LA can be custom made to any width from 1801-2400mm.

Key benefits:

• Discreet wall mounted design
• Clever compartment frame system with a reduced 40mm frame height for the installation of mini-control buttons, worktop and cooking hob
• Electric worktop lift with 300mm of continuous height adjustment, 700-1000mm above floor (excl. worktop)
• The frame depth is adjustable 560-590mm to fit adjoining cabinets
• The upper compartment is delivered pre-assembled the sides are adjustable sideways to suit the installation of cooking hobs
• The lifting system is adjustable at an angle to compensate for inclined walls / worktop
• 100mm free space under the leg motors for electrical installation and piping
• Frame supplied assembled for quicker installation
• Simple 'plug and play' setup for easy motor configuration
• Includes brackets and screws for installation of facia front and worktop
• Custom made to any width between 1801-2400mm

Integrated safety system:

• Each lift is supplied fitted with a safety stop strip located below the front edge of the worktop frame
• This strip prevents the lift from moving when contact is made with an external source
• Additional safety stop strips can be added for the sides of the lift, required if the worktop is situated adjacent to other furniture* or objects like a waste bin
• *If installed at the recommended height, the underside of the side frame will be 660mm off the floor at its lowest point and entrapment should be prevented

Choice of controls:

• Corded Mini Touch Control Buttons (Product Code: 61318)
• Safety Key Lock (Product Code: 61360)

Optional facia front:

• Factory fitted 40mm high aluminium compartment frame front cover
• Choice of finish / colour
• For a faster installation on site, the mini control buttons and key lock will be factory fitted

Recommended accessories:

• Protective panels are available in a range of sizes to enclose the underside of the lift, ideal when cooking hobs are fitted
• A factory fitted facia front can be supplied and key lock to prevent misuse
• Cover panels can be installed to hide the motor legs and electrical wiring providing a more stylish installation
• Aluminium rear edge protection for fixing to the rear of your worktop to prevent spillages running behind the lift
• For a full list of accessories, please refer to the 'Installation and Help Guides' above or contact us to discuss your requirements

Technical details:

• Height adjustment: Motor-driven, steplessly adjustable by 300mm (700 - 1000mm excl. worktop)
• Speed: 30mm / sec.
• Safety: Security strip, contact with the strip stops the lift
• Electrical connection: Mains plug for 230 V, max 5.0 A, 1150W
• Max. distributed load / Lifting force: 100kg (220lbs)
• IP-class: IP 20
• Frame depth: 560-590mm from wall
• For worktop depth: 565-630mm (15mm shallower than worktops on fixed cabinets)
• Front height: 40mm
• Fittings supplied: Attachments for facia front and worktop
• Clearance required to adjacent surfaces (mm): 5
• Gap to wall (for tiling): 15mm
• Tiling: From 700mm above floor (alternatively right down to floor)
• Material: Aluminium frame
• If fitting your own cover panels x2, dimensions required: Width = worktop width -10mm, height 438mm x thickness 12-20mm
• Order Granberg cover panels separately
• Order Fitting kit for cover panels separately

Warranty:

• 5 year manufacturer warranty
• This product comes with a 5-year warranty against manufacturing defects when registered on Granberg's website. Without registration, our standard 3-year warranty applies

Please note:

• Due to the custom nature of this product, it is made-to-order and is therefore non-returnable

Manufacturer product codes:

• 6300LA-189, 6300LA-190, 6300LA-199, 6300LA-200, 6300LA-209, 6300LA-210, 6300LA-219, 6300LA-220, 6300LA-229, 6300LA-230, 6300LA-239, 6300LA-240
