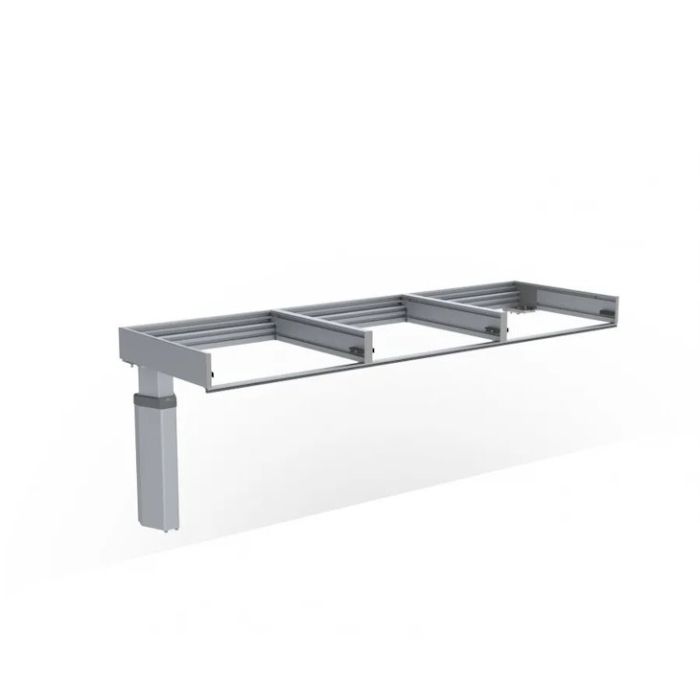

Granberg Baselift Plusmodule Left 6305HA, Wall, 103mm Front, ADJ Worktop Lift Extension - 1001-1800mm

The Baselift Plusmodule 6305HA is an electric rise and fall, wall mounted worktop lift extension by renowned Swedish manufacturer Granberg, with 300mm of stepless adjustment.

The 103mm deep top compartment frame can be equipped with Granberg Ergosteel 120mm deep shallow bowl kitchen sinks, full extension drawers and larger control buttons.

This lift must be paired with an electric wall mounted Baselift HA 6301, 6302, 6303 corner worktop lifts, this Plusmodule will neatly connect to the left-hand side.

The Plusmodule can also be used to extend the left-hand side of Granberg’s straight electric wall mounted Baselift 6300HA worktop lift, if you need a lift wider than 2400mm. Shorter width Baselifts should be used, to ensure the division between the lifts is as close to the middle as possible for even distribution of the leg motors and load.

The Plusmodule is controlled by the paired Granberg Baselift. Additional mini-control buttons can be added if required.

Left-handed, this version of the Baselift Plusmodule 6305HA can be custom made to any width from 1001-1800mm.

Key benefits:

• Discreet wall mounted design
• Clever compartment frame system with increased 103mm frame height allows for the installation of a large control buttons, drawers and sink
• Electric worktop lift with 300mm of continuous height adjustment, 700-1000mm above floor (excl. worktop)
• Extends the width of a straight wall mounted Baselift 6300HA worktop lift
• Add to the left-hand side of the wall mounted corner Baselift 6301HA, 6302HA and 6303HA worktop lifts
• Custom made to any width between 1001-1800mm
• Left-handed
• The frame depth is adjustable 560-590mm to fit adjoining cabinets
• The upper compartment is delivered pre-assembled, for quicker installation
• The lifting system is adjustable at an angle to compensate for inclined walls / worktop
• 100mm free space under the leg motors for electrical installation and piping
• Simple 'plug and play' setup for easy motor configuration
• Includes brackets and screws for installation of the facia fronts and worktop

Integrated safety system:

• Each Plusmodule includes the safety stop strip located below the front edge of the worktop frame
• This strip stops and prevents the lift from moving when contact is made
• An additional safety stop strip can be added for the side of the lift, required if the worktop is situated adjacent to other furniture* or objects like a waste bin
• *If installed at the recommended height, the underside of the side HA frame will be 597mm off the floor at its lowest point and entrapment should be prevented

Controls:

• When paired with a Baselift the control button operates the whole lift as one
• If required, you can add additional control buttons

Optional facia front:

• Factory fitted 103mm high aluminium compartment frame front cover
• Choice of finish / colour

Recommended accessories:

• Protective panels are available in a range of sizes to enclose the underside of the lift, ideal when cooking hobs are fitted
• Factory fitted facia front
• Hose covers or Cover panels can be installed to hide the motor legs and electrical wiring providing a more stylish installation
• Aluminium rear edge protection for fixing to the rear of your worktop to prevent spillages running behind the lift
• For a full list of accessories, please refer to the 'Guides & Manuals' or contact us to discuss your requirements

Technical details:

• Height adjustment: Motor-driven, steplessly adjustable by 300mm (700 - 1000mm excl. worktop)
• Speed: 30mm / sec.
• Safety: Security strip, contact with the strip stops the lift
• Electrical connection: Mains plug for 230 V, max 5.0 A
• Max. distributed load / Lifting force: 100kg (220lbs)
• IP-class: IP 20
• Frame depth: 560-590mm from wall
• For worktop depth: 565-630mm (15mm shallower than worktops on fixed cabinets)
• Front height: 103mm
• Fittings supplied: Attachments for facia front and worktop
• Clearance required to adjacent surfaces (mm): 5
• Gap to wall (for tiling): 15mm
• Tiling: From 700mm above floor (alternatively right down to floor)
• Material: Aluminium frame
• If fitting your own cover panels x2, dimensions required: Width = worktop width -10mm, height 438mm x thickness 12-20mm
• Order Granberg cover panels separately
• Order Fitting kit for cover panels separately

Warranty:

• 5 year manufacturer warranty
• This product comes with a 5-year warranty against manufacturing defects when registered on Granberg's website. Without registration, our standard 3-year warranty applies
