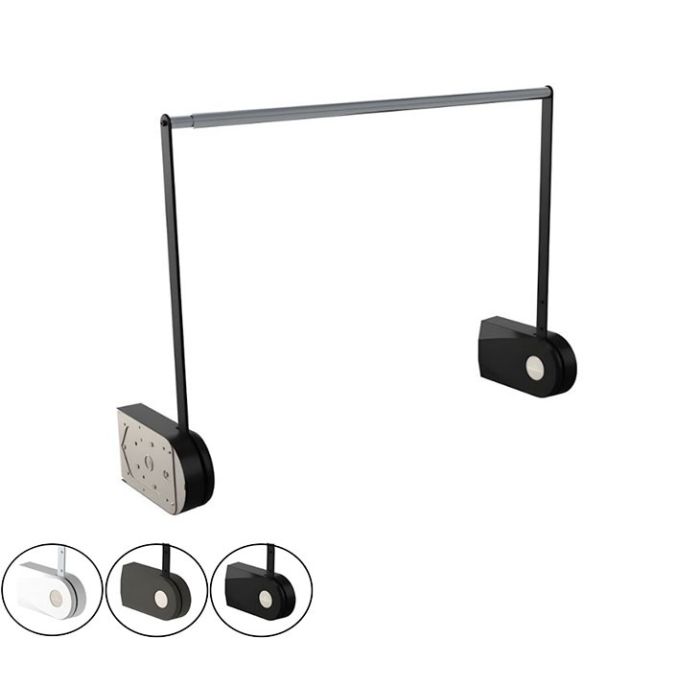

Granberg Electric Wardrobe lift BUTLER 730 - Cabinet Width 60.0 - 160.0 cm

The Granberg BUTLER 730 is a premium electric wardrobe lift that brings your hanging clothes within easy reach. Designed to be used in the top part of a wardrobe that would be inaccessible for a person in a wheelchair but with the help of BUTLER 730, the clothes can be lowered to a comfortable position simply by pressing a button.

The BUTLER 730 blends seamlessly into contemporary interiors while offering powerful functionality with its built-in safety stop feature, which prevents the lift's downward movement in the event of an obstruction. This compact system will fit wardrobes between 600–1600 mm wide.

Easy to install, Plug-and-play wardrobe lift system that delivers smooth, near silent operation, reliable performance with sleek Scandinavian styling.

The lift unit requires a single power outlet and draws a maximum of 10 amps, with the connection point located above the wardrobe.

Please note: The Butler is supplied with a Bluetooth control button as standard, choice of a single or multi-channel handheld remote for operating up to five Butler Wardrobe lifts.

Key benefits:

• Motorised Lift System: Lowers the hanging rail to a comfortable height at the push of a button
• Space-Saving Design: Ideal for tall wardrobes, maximising vertical storage without compromising accessibility
• Quiet Operation: Smooth operation, engineered for near-silent movement—perfect for bedrooms, dressing rooms and hotel environments
• Flexible Control options: Black Bluetooth mini control button, single or multi-channel handheld remote control
• Powerful: 30 kg maximum lifting load
• Safety: Integrated safety stop - stops movement on collision
• Adjustable Widths: Fits wardrobe interiors from 545 to 1568 mm

Includes:

• 1x Wardrobe lift, includes a choice of two chrome rails
• Bluetooth round control button, White symbols on Black (Product code: 61250-10)
• 1x Control unit with 2x motor cables - 2m length
• 1x Power supply unit with UK plug

Choice of Motor Covers and Straight Arm finishes:

• Jet Black (RAL 9005) plastic housing, Black anodized aluminium arms
• Umbra Grey (RAL 7022) plastic housing, Black anodized aluminium arms
• Signal White (RAL 9003) plastic housing, Natural anodized aluminium arms
• Telescopic clothes rod: Chrome-plated clothes rail

Technical details:

• Type of lift: Electric wardrobe lift that lowers the clothes rod in front of the wardrobe
• Adjustability: Motorised clothes rod, steplessly adjustable 704mm downwards, 591mm outwards
• Minimum internal cabinet height (mm): 700 to 810 if fitting above a shelf
• For wardrobes width (mm): 600–1600
• Wardrobe widths: 600-900mm
• For internal wardrobe dimensions of 545-868mm in width
• Telescopic rail dimensions 453-776mm in width
• Wardrobe widths: 1000-1600mm
• For internal wardrobe dimensions of 945-1568mm in width
• Telescopic rail dimensions 853-1476mm in width
• The depth of wardrobes depends on the type of clothes being hung
• Speed (mm / sec): 47
• Time for a lifting or lowering stroke, approx. 15 seconds
• Electrical connection: UK 3 pin plug for 230V, 50/60hz, 2.9A
• Maximum load on clothes rod (kg): 30
• The noise level (dB): 52
• Delivery package: LxWxH (mm): 900x490x90
• Delivered weight (kg): 18
• Bluetooth Control Button - Easily mounted with double-sided tape
• Bluetooth Control Button - Diameter (mm): 60
• Bluetooth Control Button - Height (mm): 8

Choice of wireless controls:

• Radio hand control, for 1 lifting system, Black (Product Code: 61385-10)
• Radio hand control, for 2 lifting system, Black (Product Code: 61387-10)
• Radio hand control, for 3 lifting system, Black (Product Code: 61388-10)
• Radio hand control, for 4 lifting system, Black (Product Code: 61389-10)
• Radio hand control, for 5 lifting system, Black (Product Code: 61390-10)
• Note: The Control box of the BUTLER will be supplied with the remote receiver (for each lift) to pair with the wireless button or remote hand control

Warranty:

• 5 year manufacturer warranty
• This product comes with a 5-year warranty against manufacturing defects when registered on Granberg's website. Without registration, our standard 3-year warranty applies

Planning - Please note:

• When installing in a wardrobe, make sure the wardrobe is properly anchored to the wall to avoid the risk of tipping forward when the clothes rail is lowered.
• Maximum load on lifting unit is 66 lb (30 kg) and dead load up to 110 lb (50 kg).
• Please check to ensure that the unit can be fixed to the wall and the wall can withstand the concentrated loads under the motor units, you may need to reinforce or adapt your walls to guarantee safety when in use for example making sure the structure is not porous
• Never place the lift so that there is a risk of crushing against other solid interior fittings.
