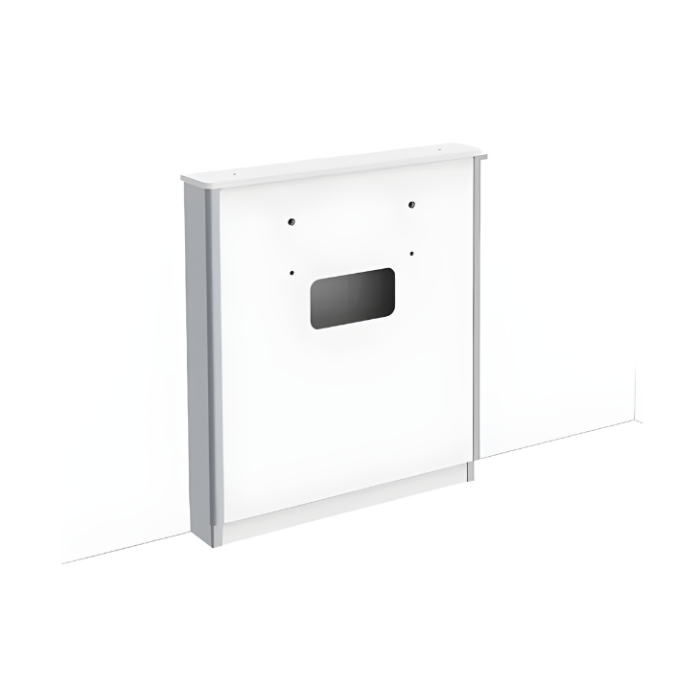

Granberg Electric Height Adjustable Washbasin System - BASICLINE 415-0 - White

The Granberg Basicline 415-0 is a height adjustable bracket mount for washbasins.

The system moves electrically to the required height using the corded hand control and or optional handheld remote control; it is ideal for situations where the height is frequently changed.

The system can be completed with a washbasin, tap, 500mm flexible hoses and waste (available separately).

Key benefits:

• Height adjustable bracket for washbasins
• 250mm continuously variable height
• Electric, steplessly adjustable washbasin unit, low profile
• Low level - can be installed beneath a mirror or cabinet
• Electric operation with corded hand control, and or optional handheld radio control (Product Code: 61386-10)
• Easy-to-use controller
• Plumbing connections are elegantly concealed in the lifting unit

Compatible washbasins:

• Max. weight (kg): 40
• Max. width (mm): 590
• Max. depth (mm): 600
• Washbasin centre-to-centre fixings (mm): 280

Technical details:

• Width of bracket (mm): 650
• Depth of bracket (mm): 107
• Height adjustment (mm): 250
• Speed (mm / second): 18
• Lifting force (kg): 100
• Electrical connection: Mains UK plug for 230 V, max 1.5A
• Note: If ordering the optional handheld remote control a double plug socket is required
• IP-class: IPX4
• Wired hand controller, IP65 rated, with support hook

Material construction:

• Back panel: 4 mm compact laminate with sides of anodised aluminium
• Top shelf: 12 mm compact laminate
• Installation cover: 4 mm compact laminate

Optional:

• 425-331 - Flexible drain hose with water trap
• 61386-10 - Remote Hand control (single channel)
• 425-403 - Safety stop switch - prevents the descent of the lift in the event of an obstruction
• Note: If selecting the optional handheld radio control, the safety switch is recommended

Warranty:

• 5 year manufacturer warranty
• This product comes with a 5-year warranty against manufacturing defects when registered on Granberg's website. Without registration, our standard 3-year warranty applies

Order separately:

• Washbasin, tap and 500mm flexible tap feeds
