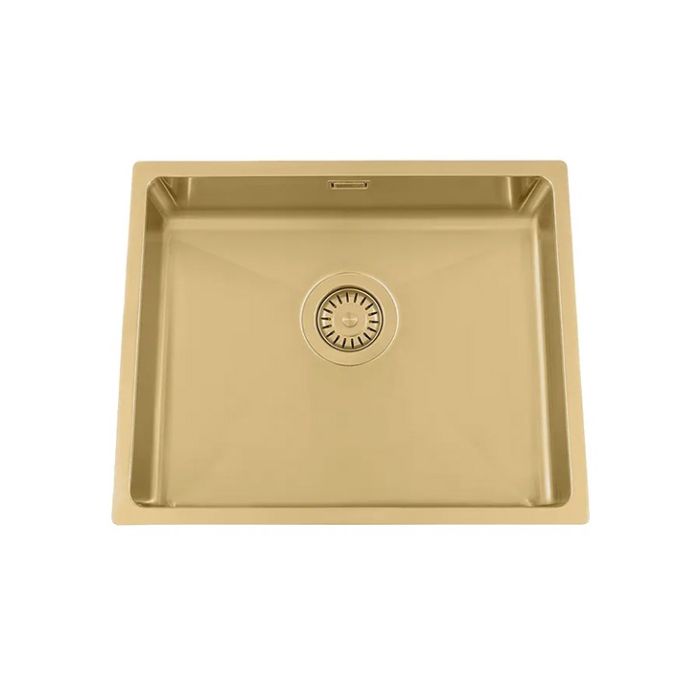

Granberg Ergosteel Trendline EST-500-03 Accessible Kitchen Sink, Gold PVD - 54.0 cm, Inc. Flexible Waste Kit

The Granberg Ergosteel Trendline EST-500-03. A single shallow bowl kitchen sink made from 1.2mm thick stainless steel with a durable gold PVD finish for a sleek and modern look.

Whether for a domestic kitchen or a commercial office tea station, this is a versatile and high-quality 120mm depth shallow bowl sink with an insulated underside, strainer waste and flexible waste kit.

This sink is ideal for insetting or undermounting within a height-adjustable worktop lift for full accessibility.

PVD (Physical Vapor Deposition) creates a thin coating on the stainless-steel surface. PVD coated sinks are ideal for any kitchen environment because of their durable design and ease of maintenance. The PVD coating process is eco-friendly due to the lack of harmful chemicals in the production process.

Key benefits:

• Provides added legroom under the sink. The specially designed waste/water trap is positioned towards the rear of the sink
• Insulated to protect the user's legs and knees
• Profiled base improves water flow
• Rear mounted overflow
• Shallow dishwashing bowl with a depth of 120mm
• Waste/water trap and overflow positioned to the rear of the sink bowl
• Shallow waste/water trap with 90mm dia. waste outlet
• Ideal for installing into a height adjustable worktop system
• Gold PVD coated Stainless Steel construction
• Universal flange allows it to be inset or under-mounted
• Includes manual basket waste, overflow and a shallow water trap
• Waste kit includes inlet options for washing machine and dishwasher waste feeds (See image gallery)
• Includes 200-520mm flexible waste kit (Product Code: 61801)
• Other PVD colours available: Black, Copper, Bronze and Champagne

Technical details:

• For cabinet size (mm): 600
• Plate thickness: 1.2mm, stainless steel
• Gold PVD Coated finish
• Inside corner radius (mm): 20
• Inner dimensions (mm): 500 x 400
• Outer dimensions (mm): 540 x 440
• Back to waste centre (mm): 145
• Bowl depth (mm): 120
• Overall Depth to waste outlet (mm): 125
• Mounting: Inset, under-mounted, under glueing and planar glueing
• Includes basket valve and water trap with flexible drain hose

Additional Trendline accessories:

• Small rinsing tray 200 x 430mm (Product code: 618-050-03)
• Large rinsing tray 355 x 440mm (Product code: 618-051-03)
• Large drying board 355 x 440mm (Product code: 618-052-03)
• Oak chopping board 320 x 420mm (Product code: 618-053)
• Single rotary valve for sink bowl (Product code: 618-060)
• The drain is opened and closed using a button that should be recessed into the work surface or fascia front

Mounting - Inset

• A hole is cut in the worktop and the inset sink is put in position from above. The inset sink is then fastened underneath with fittings while the outer edge lies on top of the worktop. This method is suitable for all types of worktop materials except natural stone. The hole should be cut-out on site by a fitter.

Mounting - Under-mounted

• A hole with an edge is milled out in the worktop from below. The inset sink is then glued on from underneath. The thickness of the visible material above the sink varies depends on the thickness of material. Only suitable for installation in solid surface materials.

Mounting - Planar gluing

• Attaches the sink to a worktop to the flat surface of the sink using adhesives to ensure a secure and watertight seal. Creates a seamless look with no visible edges. This mounting method is often used for undermount sinks. Only suitable for installation in solid surface materials.

Mounting - Under gluing

• Under glueing a sink involves attaching the sink to the underside of the worktop using an adhesive to secure the sink in place. Creates a watertight seal and a strong bond ensuring the sink is securely attached, creates a seamless look with no visible edges. Only suitable for installation in solid surface materials.

Heat Insulation Pad

• The heat insulation pad prevents leg/knee burns
• Materials: 4mm thick Cellular rubber
• Temperature resistant acrylic glue

Warranty:

• 3 years warranty
• The product is covered by a 3-year warranty against manufacturing defects
