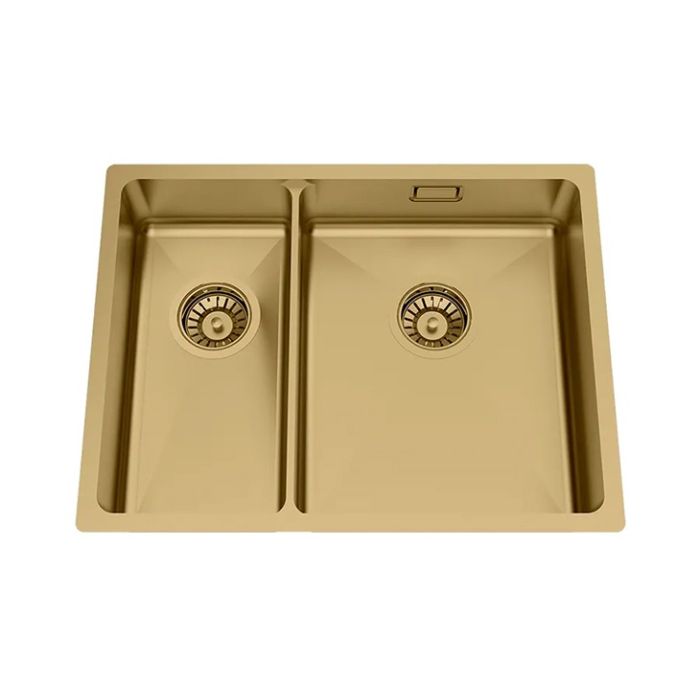

Granberg Ergosteel Trendline 53KH-03 Accessible Kitchen Sink, Gold PVD - 57.8 cm, Inc. Flexible Waste Kit

The Granberg Ergosteel Trendline EST-53KH-03 is an excellent one and a half shallow bowl kitchen sink, handmade from 1.2mm thick stainless steel with a gold PVD finish, a stylish sink for both domestic and commercial installations.

Two insulated sink bowls with a shallow depth of 120mm, this sink is ideal for insetting into a Granberg height adjustable island or worktop lift.

Key benefits:

• Provides added legroom under the sink, the specially designed waste/water trap is positioned towards the rear of the sink
• 1 1/2 sink bowls allow the user to do two separate tasks at once
• Insulated underside protects the users legs and knees
• Profiled base improves water flow
• Rear mounted single overflow in the main sink
• Both sink bowls 120mm depth
• Waste/water trap and overflow positioned to the rear
• Shallow waste/water traps with 90mm dia. waste outlets
• Ideal for installing into a height adjustable worktop system
• Gold PVD coated stainless steel construction
• Universal flange allows it to be inset or under-mounted
• Includes manual basket wastes, overflow and a shallow water traps
• Waste kit includes inlet options for washing machine and dishwasher waste feeds (See image gallery)
• Includes 200-520mm flexible waste kit (Product Code: 61801)
• Other PVD colours available: Black, Copper, Bronze and Champagne

Technical details:

• For cabinet size (mm): 600
• Plate thickness: 1.2mm, stainless steel
• Gold PVD coated finish
• Inside corner radius (mm): 20
• Inner dimensions (mm): 200 / 330 x 400
• Outer dimensions (mm): 578 x 440
• Back to waste centre (mm): 145
• Bowl depths (mm): 120
• Overall Depth to waste outlet (mm): 125
• Mounting: Inset, under-mounted, under gluing and planar gluing
• Includes basket valves and water traps with a flexible drain hose

Additional Trendline accessories:

• Small rinsing tray 200 x 430mm (Product code: 618-050-03)
• Oak chopping board 320 x 420mm (Product code: 618-053)

Mounting - Inset

• A hole is cut in the worktop and the inset sink is put in position from above. The inset sink is then fastened underneath with fittings while the outer edge lies on top of the worktop. This method is suitable for all types of worktop materials except natural stone. The hole should be cut-out on site by a fitter.

Mounting - Under-mounted

• A hole with an edge is milled out in the worktop from below. The inset sink is then glued on from underneath. The thickness of the visible material above the sink varies depends on the thickness of material. Only suitable for installation in solid surface materials.

Mounting - Planar gluing

• Attaches the sink to a worktop to the flat surface of the sink using adhesives to ensure a secure and watertight seal. Creates a seamless look with no visible edges. This mounting method is often used for under mount sinks. Only suitable for installation in solid surface materials.

Mounting - Under gluing

• Under gluing a sink involves attaching the sink to the underside of the worktop using an adhesive to secure the sink in place. Creates a watertight seal and a strong bond ensuring the sink is securely attached, creates a seamless look with no visible edges. Only suitable for installation in solid surface materials.

Heat Insulation Pad

• The heat insulation pad prevents leg/knee burns
• Materials: 4mm thick Cellular rubber
• Temperature resistant acrylic glue

Warranty:

• 3 years warranty
• The product is covered by a 3-year warranty against manufacturing defects
