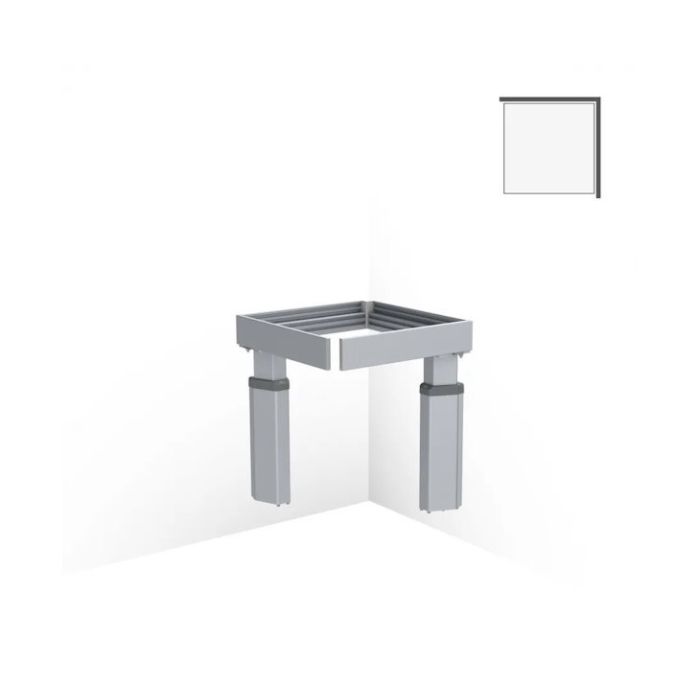

Granberg Kitchen Worktop Lift Baselift Corner 6303HA, 103mm Front, 90°- 90°, Wall-mounted

The Baselift 6303HA is an electric corner rise and fall worktop lift by renowned Swedish manufacturer Granberg.

Wall mounted, it creates a height adjustable access solution to cater for both standing and seated users.

The Baselift 6303HA is defined by a 90° front edge and a 90° corner at the wall. This corner module is perfect for making use of the dead space in the corner of the kitchen. Each side can be extended by up to 2400mm with the addition of Plusmodules (available separately).

Key benefits:

• Electric corner worktop lift with 300mm of continuous height adjustment
• Extend each side by up to 2400mm, with the addition of Plusmodules (available separately)
• Discreet wall mounted design
• The lifting system is adjustable at an angle to compensate for inclined walls / worktop
• Frame supplied assembled for quicker installation
• Simple 'plug and play' setup for easy motor configuration
• Includes brackets and screws for installation of the worktop

Safety system:

• The Plusmodules (not included) are required for each side extension of this corner lift module, include a safety stop strip located below the front edge of the worktop lift
• This strip prevents the lift from moving once it comes into contact with an external source

Choice of controls:

• With Plusmodules (not included) fitted either side, we will confirm with you the control button / key lock factory fitted locations if Alu. Fronts are ordered
• Corded Control Button in Alu-design (Product Code: 61320)
• Corded Mini Touch Control Buttons (Product Code: 61318)
• Safety Key Lock (Product Code: 61360)

Optional accessories:

• Plusmodules extend the corner frame on both sides, by up to 2400mm
• Cover panels can be installed to hide the motor legs and provide a more discreet installation, order 1x per side

Technical details:

• Overall size of module (mm): 595 x 595
• Height adjustment: Motor-driven, steplessly adjustable by 300mm (700 - 1000mm excl. worktop)
• Speed: 30mm / sec.
• Electrical connection: Mains plug for 230 V, max 10A, 2300W
• Max. distributed load / Lifting force: 100kg (220lbs)
• IP-class: IP 20
• Frame depth: 560-590mm from wall
• For worktop depth: 565-630mm (15mm shallower than worktops on fixed cabinets)
• Front height: 103mm
• Fittings supplied: Attachments for worktop
• Clearance required to adjacent surfaces (mm): 5
• Gap to wall (for tiling): 15mm
• Tiling: From 700mm above floor (alternatively right down to floor)
• Material: Aluminium frame
• If fitting your own cover panels x2, dimensions required: Width = worktop width -10mm, height 438mm x thickness 12-20mm
• Order Granberg cover panels separately
• Order Fitting kit for cover panels separately

Warranty:

• 5 year manufacturer warranty
• This product comes with a 5-year warranty against manufacturing defects when registered on Granberg's website. Without registration, our standard 3-year warranty applies

Please note:

• Due to the custom nature of this product, it is made-to-order and is therefore non-returnable
