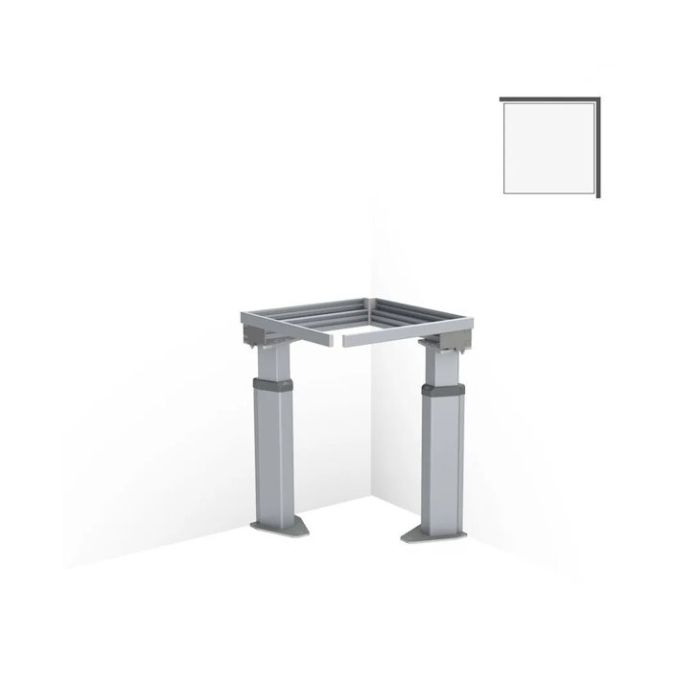

Granberg Kitchen Worktop Lift Baselift Corner 6313LA, 40mm Front, 90°- 90°, Floor-mounted

The Baselift 6313LA is an electric corner rise and fall worktop lift by renowned Swedish manufacturer Granberg.

Floor mounted, it creates a height adjustable access solution to cater for both standing and seated users.

The Baselift 6313LA is defined by a 90° front edge and a 90° corner at the wall. This corner module is perfect for making use of the dead space in the corner of the kitchen, extend each side by up to 2400mm with a Plusmodule (available separately).

Key benefits:

• Electric corner worktop lift with 300mm of continuous height adjustment
• Extend each side by up to 2400mm, with the addition of Plusmodules (available separately)
• Sturdy floor mounted design
• The lifting system is adjustable at an angle to compensate for inclined walls / worktop
• Frame supplied assembled for quicker installation
• Simple 'plug and play' setup for easy motor configuration
• Includes brackets and screws for installation of the worktop

Safety system:

• The Plusmodules (not included) are required for each side extension of this corner lift module, include a safety stop strip located below the front edge of the worktop lift
• This strip prevents the lift from moving once it comes into contact with an external source

Choice of controls:

• With Plusmodules (not included) fitted either side, we will confirm with you the control button / key lock factory fitted locations if Alu. Fronts are ordered
• Corded Mini Touch Control Buttons (Product Code: 61318)
• Safety Key Lock (Product Code: 61360)

Optional accessories:

• Plusmodules extend the corner frame on both sides, by up to 2400mm
• Cover panels can be installed to hide the motor legs and provide a more discreet installation, order 1x per side

Technical details:

• Overall size of module (mm): 595 x 595
• Height adjustment: Motor-driven, steplessly adjustable by 300mm (700 - 1000mm excl. worktop)
• Speed: 30mm / sec.
• Electrical connection: Mains plug for 230 V, max 10A, 2300W
• Max. distributed load / Lifting force: 100kg (220lbs)
• IP-class: IP 20
• Frame depth: 560-590mm from wall
• For worktop depth: 565-630mm (15mm shallower than worktops on fixed cabinets)
• Front height: 40mm
• Fittings supplied: Attachments for worktop
• Clearance required to adjacent surfaces (mm): 5
• Gap to wall (for tiling): 15mm
• Tiling: From 700mm above floor (alternatively right down to floor)
• Material: Aluminium frame
• If fitting your own cover panels x2, dimensions required: Width = worktop width -10mm, height 438mm x thickness 12-20mm
• Order Granberg cover panels separately
• Order Fitting kit for cover panels separately

Warranty:

• 5 year manufacturer warranty
• This product comes with a 5-year warranty against manufacturing defects when registered on Granberg's website. Without registration, our standard 3-year warranty applies

Please note:

• Due to the custom nature of this product, it is made-to-order and is therefore non-returnable
