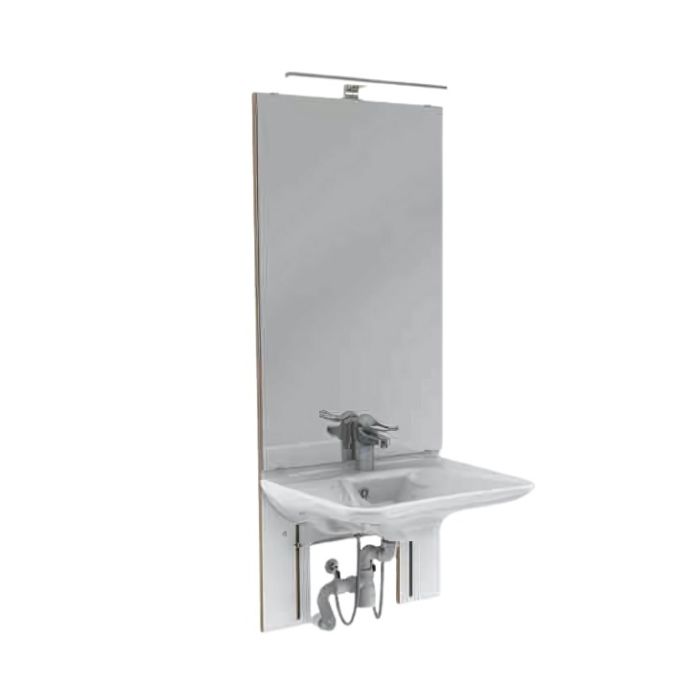

Granberg Manual Height Adjustable Washbasin - BASICLINE 401-01-05 - Incl. Mixer Tap with 150 mm Lever - White
Product Code: 401-01-05
Wall mounted height adjustable washbasin bracket. 250 mm height adjustment, in 50 mm steps with hook rail and bolt fixings for occasional use. Includes 425-001 washbasin with overflow and flexible drain hose with water trap. Includes 150 mm lever tap, which can upgraded to the 150 mm lever tap with hand shower with 1.5m hose, Infrared mixer tap with temperature control or the Granberg (WRAS approved) TMV3 sequential 190 mm lever tap.
- Product Code
- 401-01-05
Delivery in 2–3 working days
Collection in Ready in 2 hours
£1,892.40
Incl. Vat
£1,577.00
Excl. Vat
Incl. Vat
Excl. Vat
The Granberg Basicline 401 is a wall mounted manual washbasin bracket with integrated mirror and LED lighting, with 150 mm lever tap.
Stylish and discreet, the entire system can be manually moved to the required height in 50 mm increments and locked into place.
This version includes the 425-001 washbasin.
Key benefits:
- Complete height adjustable washbasin system with mirror and lighting
- Wheelchair accessible washbasin with shallow bowl and concave front edge
- Discreet styling
- Manual - intended for environments where only occasional height adjustment is required
- Provides 250 mm of adjustment in 50 mm increments, via hooks on back of panel and 2x securing bolts at bottom of panel
- Depth of leg room under the washbasin 527 mm
- Includes mirror and lighting which move in tandem with the washbasin
Includes:
- Granberg Basicline 401 washbasin bracket with mirror and lighting
- Granberg 425-001 porcelain washbasin with overflow and plug
- Granberg 425-331 flexible drain hose with water trap
- Granberg FMM 425-105 mixer tap (Shown product images), 150 mm lever and PEX hoses
Optional tap upgrades with 2x 500 mm PEX flexible hoses:
- Granberg 425-120 sequential TMV3 mixer tap, 190 mm lever (WRAS Approved)
- Granberg FMM 425-106 mixer tap, 150 mm lever, 1.5m hose hand shower and PEX hoses
- Granberg FMM 425-110 infrared mixer tap (6V battery), temperature control and PEX hoses
Please note:The FMM taps are not UK - TMV rated or WRAS approved for commercial applications
Technical details:
- Total width (mm): 600
- Depth of bracket (mm): 37
- Height when mounted at the recommended height (mm): 1696-1946 (adjustable)
- Total depth from front of washbasin to wall (mm): 527
- Width of washbasin (mm): 600
- Depth of washbasin (mm): 490
- Distance from front edge to mixer tap lever (mm): 265
- Height from top of washbasin to floor when mounted at the recommended height (mm): 627-877 (adjustable)
- Max load (kg): 100
Lighting technical details:
- Lighting: Aluminium/plastic, Colour: Chrome
- LED lighting 12V / 6-8W, 4000K (connected to an external switch)
- Transformer: Primary (in) 220-240 V, Secondary (out) 12V
Warranty:
- 5 year manufacturer warranty
- This product comes with a 5-year warranty against manufacturing defects when registered on Granberg's website. Without registration, our standard 3-year warranty applies
| Manufacturer | Granberg |
|---|---|
| Bracket Range | Granberg BASICLINE 401 |
| Bracket Operation | Manual |
| Bracket Adjustment | Bolt & Hook Adjustment |
| Height Adjustment (mm) | 250 |
| For Washbasin Range | BASICLINE 425-010 |
| Bracket Mounting | Wall |
| Safety Stop | No |
