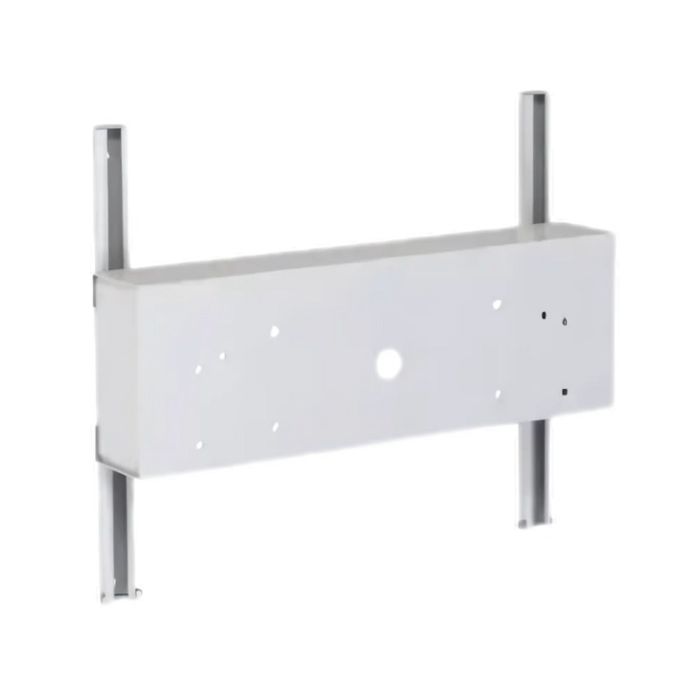

Granberg Manual Height Adjustable Washbasin System - BASICLINE 403-2, Depth 12.0 cm - White

The Granberg Basicline 403-2 is a height adjustable bracket mount for washbasins.

Manually adjustable, it is ideal for situations where the height is not to be adjusted every day.

This version of the Basicline has an increased depth of 120 mm to offset the washbasin further from the wall.

Key benefits:

• 300 mm Height adjustable bracket for washbasins
• Manual adjustment using a socket wrench
• Track design gives it step-less adjustment
• Includes nut and bolt fixings for mounting most common types of washbasins onto the bracket
• The system can be completed with a washbasin, tap, 500 mm flexible feeds and waste (available separately)
• Offsets the washbasin from the wall by 120 mm - ideal for when there are cabinets above

Technical details:

• Width of bracket (mm): 600
• Depth of bracket (mm): 120
• Height adjustment (mm): 300
• Washbasin centre-to-centre fixings (mm): 280
• Washbasin maximum depth (mm): 600 (available separately)
• Washbasin maximum width (mm): 600 (available separately)
• Free space below the bracket for plumbing connections (available separately)
• Maximum washbasin load (kg): 40

Warranty:

• 5 year manufacturer warranty
• This product comes with a 5-year warranty against manufacturing defects when registered on Granberg's website. Without registration, our standard 3-year warranty applies
