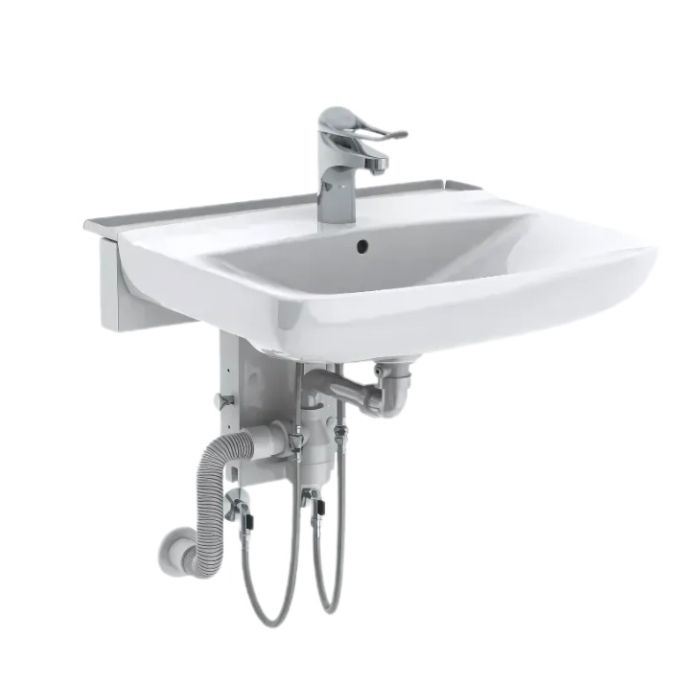

Granberg Manually Adjustable Washbasin with Gas Spring BASICLINE 406-11-05 - Incl. Mixer Tap with 150 mm Lever - White

The Granberg Basicline 406 is a wall mounted manual washbasin lift with gas spring with a rear shelf.

Stylish and discreet, the entire system can be manually moved to the required height and locked into place.

This version includes the 425-011 compact washbasin, with a 150 mm lever tap.

Key benefits:

• Complete height adjustable washbasin system
• Manual operation with gas spring - for occasional height adjustments
• Bracket provides 190 mm of adjustment in 12 mm increments
• Compact washbasin, ideal for children or tight spaces
• Depth of leg room under the washbasin 555 mm
• Practical storage shelf behind the washbasin 120 mm deep
• Free space below the unit for plumbing connections
• Can be installed beneath a mirror or cabinet

Includes:

• Granberg Basicline 406 washbasin lift
• Granberg 425-011 porcelain washbasin with overflow and plug
• Flexible drain hose with water trap 425-331
• Granberg FMM 425-105 mixer tap (Shown in product images), 150 mm lever and PEX hoses

Optional tap upgrades with 2x 500 mm PEX flexible hoses:

• Granberg 425-120 sequential TMV3 mixer tap, 190 mm lever (WRAS Approved)

Please note:The FMM taps are not UK - TMV rated or WRAS approved for commercial applications

• Granberg FMM 425-106 mixer tap, 150 mm lever, 1.5m hose hand shower and PEX hoses
• Granberg FMM 425-110 infrared mixer tap (6V battery), temperature control and PEX hoses

Technical details:

• Width (mm): 602
• Height when mounted at the recommended height (mm): 708 - 863 (adjustable)
• Total depth from front of washbasin to wall (mm): 555
• Width of washbasin (mm): 600
• Depth of washbasin (mm): 445
• Distance from front edge to tap lever (mm): 225
• Height from top of washbasin to floor when mounted at the recommended height (mm): 658 - 848 (adjustable)
• Note: Assistance is required to push the rear of the washbasin on the downward stroke
• The adjustment toggle, is left hand mounted (this cannot be changed)
• Washbasin maximum load (kg): 50

Warranty:

• 5 year manufacturer warranty
• This product comes with a 5-year warranty against manufacturing defects when registered on Granberg's website. Without registration, our standard 3-year warranty applies
