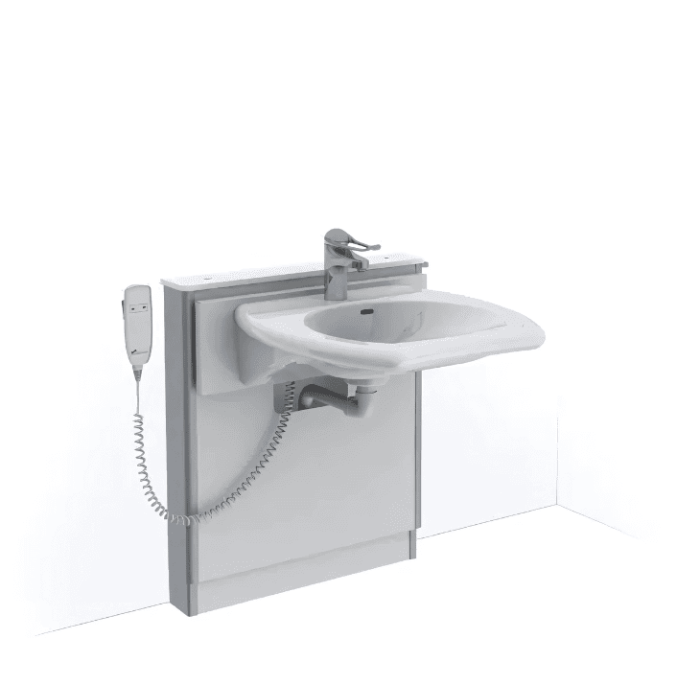

Granberg Motorised Washbasin Lift BASICLINE 415-03-05 - Incl. Mixer Tap with 150 mm Lever - White

The Granberg Basicline 415 is a floor mounted electric washbasin lift with a 150 mm lever tap, the pedestal has a clean white finish.

Stylish and discreet, the entire system moves to the required height using the corded hand control.

This version includes the 425-003 washbasin with safety system.

Key benefits:

• Complete height adjustable washbasin system
• 250 mm continuously variable height
• Low level, can be installed beneath a mirror or cabinet
• Electric operation with corded hand control
• Plumbing connections are elegantly concealed in the lifting unit
• Wheelchair accessible washbasin with shallow bowl, concave front edge and easy-to-grip sides
• Depth of leg room under the washbasin 586 mm
• Includes safety switch - the washbasin will stop lowering if it comes into contact with any obstacle or the user's legs
• Granberg FMM 425-105 mixer tap (Shown product images), 150 mm lever and PEX hoses

Includes:

• 415 Washbasin lift
• 425-105 Granberg FMM mixer tap (Shown product images), 150 mm lever and PEX hoses
• 425-410 Corded hand control
• 425-403 Safety switch for Basicline 415 washbasin lift
• 425-003 Washbasin with overflow and plug
• 425-331 Flexible drain hose with water trap

Optional tap upgrades with 2x 500 mm PEX flexible hoses:

• Granberg FMM 425-106 mixer tap, 150mm lever, 1.5m hose hand shower and PEX hoses
• Granberg FMM 425-110 infrared mixer tap (6V battery), temperature control and PEX hoses
• Please note: The FMM taps are not UK - TMV rated or WRAS approved for commercial applications
• If you require this washbasin lift system with a TMV3 / WRAS approved tap please Product Code: 415-03-20

Technical details:

• Total width (mm): 650
• Total height (mm): 712-962 (adjustable)
• Total depth from front of washbasin to wall (mm): 695
• Width of washbasin (mm): 600
• Depth of washbasin (mm): 550
• Distance from front edge to tap lever (mm): 324
• Height from top of washbasin to floor (mm): 664-914 (adjustable)
• Washbasin centre-to-centre fixings (mm): 280
• Speed of operation: 18 mm / sec
• Lifting force (kg): 100
• Washbasin max. load (kg): 50
• Wired hand control: IP65 rated with support hook
• Electrical connection: Mains UK plug for 230 V / Max. 1.5A
• IP-class: IPX4

Material:

• Back panel: 4 mm compact laminate with sides of anodised aluminium
• Top shelf: 12 mm compact laminate
• Safety switch: Powder-coated sheet steel
• Installation cover: 4 mm compact laminate

Warranty:

• 5 year manufacturer warranty
• This product comes with a 5-year warranty against manufacturing defects when registered on Granberg's website. Without registration, our standard 3-year warranty applies
