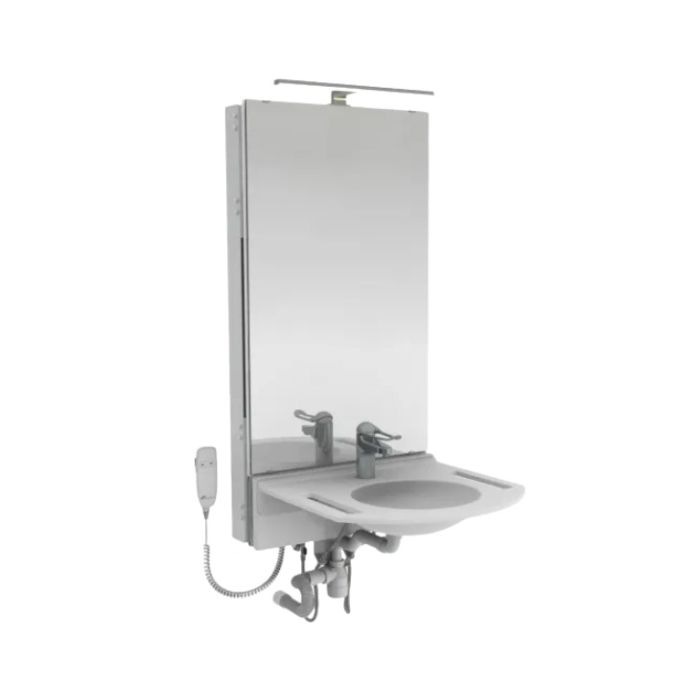

Granberg Motorised Washbasin Lift BASICLINE 433-15-05 - Incl. Mixer Tap with 150 mm Lever - White

The Granberg Basicline 433 is a wall mounted electric washbasin lift, integrated mirror with LED lighting above, and 150 mm lever tap.

Stylish and discreet, the entire system moves to the required height using the corded hand control.

This version includes the 425-015 washbasin with safety system.

Key benefits:

• Complete 250 mm wall mounted height adjustable system with mirror, lighting and washbasin
• Electric operation with corded hand control
• Mirror and lighting move in tandem with the washbasin
• Wheelchair accessible washbasin with shallow bowl and integrated gripping slots
• Depth of leg room under the washbasin 706 mm
• Ideal for infection control, the washbasin features as slotted waste - no overflow or waste plug
• Plumbing connections are elegantly concealed in the lifting unit
• Includes safety switch - prevents the descent of the lift in the event of an obstruction

Includes:

• 433 Washbasin lift, safety switch, mirror with LED light above
• 425-105 Granberg FMM mixer tap (Shown product images), 150 mm lever and PEX hoses
• 425-410 Corded hand control
• 425-015 Solid surface material with integrated grabrails, slotted waste - no overflow or waste plug
• 425-331 Flexible drain hose with water trap

Optional taps with 2x 500 mm PEX flexible hoses:

• Granberg FMM 425-106 mixer tap, 150 mm lever, 1.5m hose hand shower and PEX hoses
• Granberg FMM 425-110 infrared mixer tap (6V battery), temperature control and PEX hoses
• Please note: The FMM taps are not UK - TMV rated or WRAS approved for commercial applications
• If you require this washbasin lift system with a TMV3 / WRAS approved tap please Product Code: 433-15-20

Technical details:

• Total width (mm): 620
• Total height when mounted at the recommended height (mm): 1694-1944 (adjustable)
• Height of mirror (mm): 1000
• Total depth from front of washbasin to wall (mm): 706
• Width of washbasin (mm): 600
• Depth of washbasin (mm): 550
• Distance from front edge to tap lever (mm): 315
• Height from top of washbasin to floor (mm): 625-875 (adjustable)
• Speed of operation: 18 mm / sec
• Electrical connection: Mains UK plug for 230 V, max. 1.5A
• IP-class: IPX4
• Wired hand controller, IP65 rated, with support hook
• Lifting force (kg): 100
• Washbasin max. load (kg): 50

Material:

• Back panel: White melamine coated particleboard W899 with 2 mm ABS edging
• Mounting plate: Powder coated Alu-zinc coated steel, white RAL 9010
• Mirror: 1000 x 600 x 4 mm silver-coated float glass with polished edges
• Safety switch and other metal parts: Powder-coated steel sheet

Lighting technical details:

• Lighting: Aluminium/plastic, Colour: Chrome
• LED lighting 12V / 6-8W, 4000K (connected to an external switch)
• Transformer: Primary (in) 220-240 V, Secondary (out) 12V

Warranty:

• 5 year manufacturer warranty
• This product comes with a 5-year warranty against manufacturing defects when registered on Granberg's website. Without registration, our standard 3-year warranty applies
