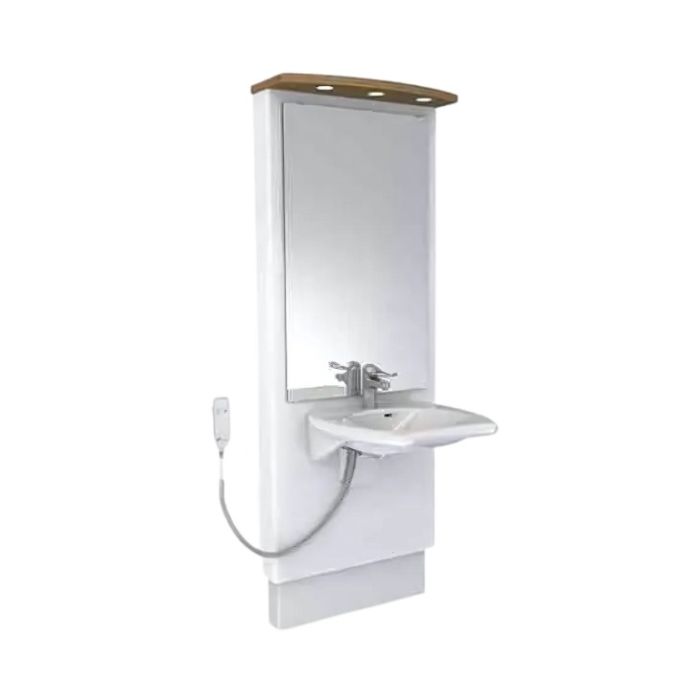

Granberg Motorised Washbasin Lift DESIGNLINE 417-03-05 - Incl. Mixer Tap with 150 mm Lever - White

The Granberg Designline 417 is an electric washbasin lift with integrated mirror with LED lighting above the pedestal that has a clean white finish.

Stylish and discreet, the entire system moves to the required height using the corded hand control.

This version comes in a clean white finish with the 425-003 washbasin with a 150 mm lever tap.

Key benefits:

• Complete height adjustable washbasin system with mirror and lighting
• 250 mm continuously variable height
• Electric operation by a corded hand control
• White laminate surround with solid oiled oak canopy and 3 x recessed LED spotlights
• Mirror and lighting move in tandem with the washbasin
• Wheelchair accessible washbasin with shallow bowl, concave front edge and easy-to-grip sides
• Depth of leg room under the washbasin 550 mm
• Plumbing connections are elegantly concealed in the lifting unit
• Granberg FMM 425-105 mixer tap with 150 mm lever and PEX hoses

Includes:

• Designline 417 Washbasin lift with mirror and lighting
• 425-410 Corded hand control
• 425-003 Porcelain washbasin with overflow and plug
• 425-331 Flexible drain hose with water trap
• 425-105 FMM mixer tap with 150 mm lever and PEX hoses
• Please note: The FMM tap is not UK - TMV rated or WRAS approved for commercial applications

Optional safety system:

• 425-401 Safety switch - prevents the descent of the lift in the event of an obstruction

Technical details:

• Total width (mm): 715
• Total depth (mm): 672
• Total height (mm): 1770-2020 (250 mm adjustable)
• Height of mirror (mm): 1000
• Width of mirror (mm): 600
• Width of washbasin (mm): 600
• Depth of washbasin (mm): 550
• Distance from front edge to tap lever (mm): 324
• Height from top of washbasin to floor (mm): 666-916 (adjustable)
• Speed of operation: 18 mm / sec
• Lifting force (kg): 100
• Washbasin max. load (kg): 50
• Wired hand controller, IP65 rated, with support hook
• Electrical connection: Plug to 230 V, max 1.5A
• Enclosure IP-class: IPX4

Material:

• Back panel: Plywood coated with high-pressure White laminate (Formica F7949, white)
• Mirror: 1000 x 600 x 4 mm silver-backed float glass with ground edges incl. mirror clips
• Mounting cover: White plastic
• Safety switches and other metal parts: Powder-coated steel sheet

Lighting technical details:

• Lighting: Solid oiled oak with 3 x recessed spotlights (connected to external power switch)
• Spotlights: LED 3W, 3000K
• Transformer: Primary (in) 230V, Secondary (out) 12V

Warranty:

• 5 year manufacturer warranty
• This product comes with a 5-year warranty against manufacturing defects when registered on Granberg's website. Without registration, our standard 3-year warranty applies
