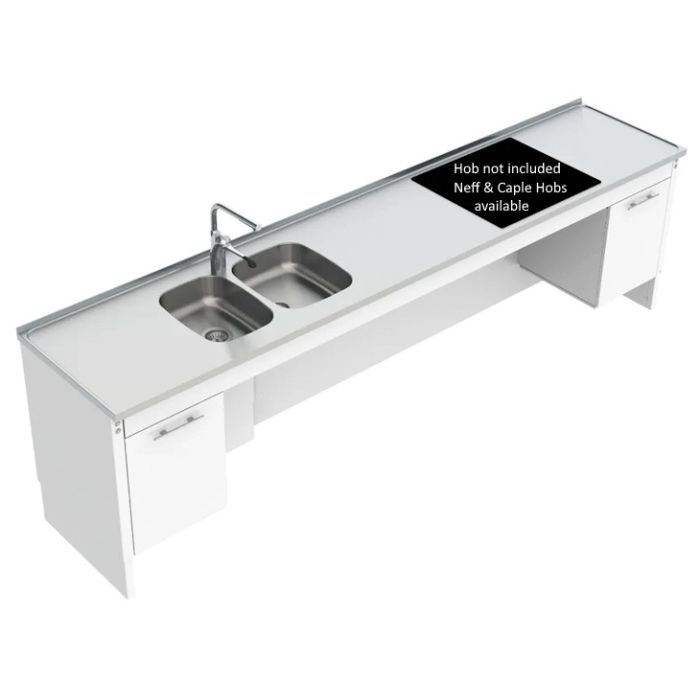

Granberg Sidelift 6400 Combi Kitchen Module 6400-ESHS4 SS, w/ CAB Left & Right - White, RAL 9003

This Granberg Sidelift 6400 module is equipped with the ESHS stainless steel workbench / drying area with two shallow sink bowls with a depth of 120mm, with the hob space cut-out to your dimensions with a white Front.

2x 400mm hanging cabinets on the left and right-hand ends which can be removed, free space below the rest of the worktop.

The worktop lift is powered by heavy duty motors with 400kg of lifting power located at either end on the short sides.

The motors work steplessly with 300mm of adjustment height, moving the worktop quickly and quietly to the desired height from a range of 700-1000mm from the floor, excluding the worktop.

The lift is supplied with a safety strip along the front edge and safety plates located under each hanging cabinet. The lift stops all movement if any object comes in contact.

The module is delivered complete, (except hob, mixer tap and hoses), and is available in left or right configuration.

The lifting system is available in White RAL 9003.

Key benefits:

• Motorised, straight worktop lift with side motors
• Electric operation, with Mini control buttons located on the motor units
• 400kg lifting power
• Cabinets Left-Right
• Safety plates under the cabinets
• Height-adjustable 70-100 cm above the floor (excl. top board)
• Simple "plug and play" electronics and motor system
• Choice of Left or Right-hand sink, select as required
• Specify your hob-cut dimensions, as required
• Sidelift 6400 colour - White RAL 9003
• Hanging cabinet materials: Frame in white melamine
• Hanging cabinet materials: Door white-lacquered (NCS 0500-N)

Includes:

• 1x SIDELIFT 6400HA - 2890mm width (Product Code: 6400HA-289)
• 2x Fitting kits for hanging cabinet
• 1x Hanging cabinet with drawers, 400mm (Product Code: 760-040-01)
• 1x Hanging cabinet with waste sorting bins, 400mm (Product Code: 761-040-01)
• 2x Cutlery compartment for inner drawer, 400mm (Product Code: 460-040)
• 2x Safety plate SIDELIFT 6400, 400mm (Product Code: 6253-040-01)
• 1x Cover panels, Sidelift 6400 (Product Code: 6262-240-01)
• 1x Fittings set for cover panels, Sidelift (Product Code: 6260-008)
• 1x 2890mm Rear edge trim ALU for worktop (Product Code: 6943-06)
• 1x Stainless steel workbench, 2x bowls, hole for hob, 2890mm (Product Code: 617ESHS-289)

Recommended accessories:

• Additional hanging cabinets
• Additional fittings for hanging cabinet
• Cooking hob
• Mixer tap
• Flexible water hoses

Technical details:

• Installation: Floor mounted
• Height adjustment: Motorised, steplessly adjustable 300mm (700-1000mm excl. worktop)
• Speed level (mm/sec): 20
• Operation: Mini control buttons, located on the left and right side of motor units
• Electrical connection: 2x 230V socket outlets / 50Hz / 2 x 5A
• Safety: Continuous safety stop strip located under the front facia
• Safety: Plates under the hanging cabinets
• Plumbing connections: Flexible wastewater hose
• Lifting force (kg): 400
• IP-class: IP 20
• Width worktop: Width = width of the lift
• Worktop depth: 15mm shallower than worktops on fixed cabinets
• Frame depth (mm): 561
• Required space to wall / adjoining cabinet (mm): 5
• Required space to wall (for tiles) (mm): 15
• Tiling: From 700 mm above floor (alternatively all the way down to the floor)
• Delivery modules: 1 package with motor units. 1 package with length-dependent beams
• Materials: Motor units in lacquered steel (S235JRG2). Aluminium beams

Warranty:

• 3 year manufacturer warranty
• This product comes with a 5-year warranty against manufacturing defects when registered on Granberg's website. Without registration, our standard 3-year warranty applies

Please note:

• Note: The cooking hob, mixer tap and hoses shown in the images are not included
• Due to the custom nature of this product, it is made-to-order and is therefore non-returnable
