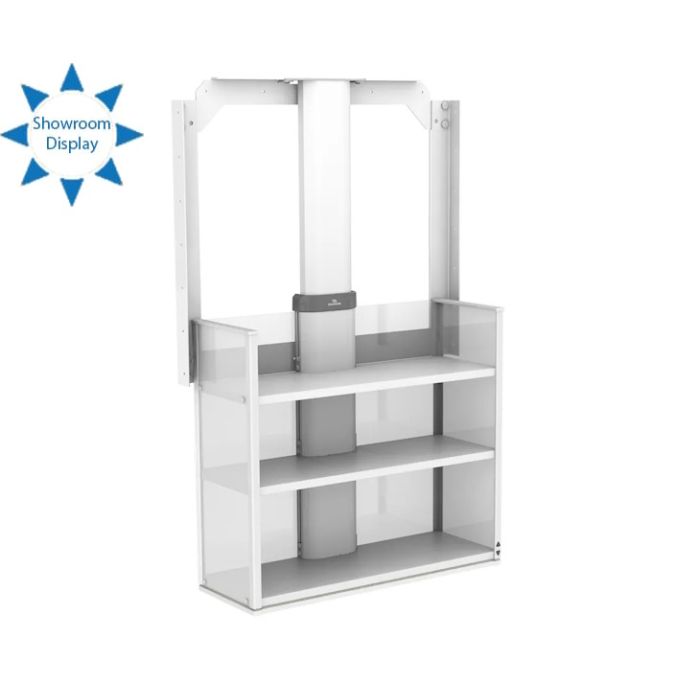

Granberg Wall Cabinet Lift Verti 840KA, 26.2 cm Depth, CAB W 40-100 cm x 70-84 cm H - White

[mgz_pagebuilder]{"elements":[{"row_type":"full_width_row","content_position":"top","gap_type":"padding","content_align":"center","device_type":"all","background_type":"image","background_style":"auto","background_position":"center-top","parallax_speed":0.5,"mouse_parallax_size":30,"mouse_parallax_speed":10000,"lg_background_type":"image","lg_background_style":"auto","lg_background_position":"center-top","md_background_type":"image","md_background_style":"auto","md_background_position":"center-top","sm_background_type":"image","sm_background_style":"auto","sm_background_position":"center-top","xs_background_type":"image","xs_background_style":"auto","xs_background_position":"center-top","type":"row","id":"mpjxcsm","elements":[{"device_type":"all","background_type":"image","background_style":"auto","background_position":"center-top","parallax_speed":0.5,"mouse_parallax_size":30,"mouse_parallax_speed":10000,"lg_background_type":"image","lg_background_style":"auto","lg_background_position":"center-top","md_background_type":"image","md_background_style":"auto","md_background_position":"center-top","sm_background_type":"image","sm_background_style":"auto","sm_background_position":"center-top","xs_background_type":"image","xs_background_style":"auto","xs_background_position":"center-top","md_size":"","xl_offset_size":"","xl_size":"","lg_offset_size":"","lg_size":"","md_offset_size":"","sm_offset_size":"","sm_size":"","xs_size":"","type":"column","id":"s8fr2oe","elements":[{"content":"

The Granberg Verti 840KA is a height adjustable wall cabinet lift for the kitchen, finished in white. For wall cabinets 700-840mm in height.

\n

Fitted inside the cabinet, the lift lowers the cabinet shelves and contents by 485mm in a vertical motion to the worktop below.

\n

This version of the Verti is suitable for cabinets with 267-311mm internal depth and comes with a choice of controls and optional factory fitted LED spotlights.

\n

Key benefits:

\n

\n
• Electric height adjustable wall cabinet lift
\n
• Lowers the cabinet's shelves and contents in a vertical motion to the worktop below
\n
• Quiet motors and discreet styling
\n
• Integrated safety feature prevents the movement of the lift in the event of an obstruction
\n

\n

Choice of controls:

\n

\n
• Recessed - Corded Control Button in ALU-design, with 5m Control Cable (Product Code: 61310)
\n
• Recessed - Corded Mini Control Buttons, with 5m Control Cable (Product Code: 61315)
\n
• Recessed - Wireless Mini Control Buttons (Product Code: 61376)
\n
• Recessed - Wireless Control Button in ALU-design (Product Code: 61371)
\n
• Surface mounting - Wireless Control Button in ALU-design with Extension Frame (Product Code: 61371 + 61355)
\n
• Single Channel Remote Control (Product Code: 61385-10)
\n
• Multi-channel remote controls are also available if you are installing multiple systems, contact us to discuss your requirements
\n

\n

Integrated safety system:

\n

\n
• Each lift is supplied fitted with a safety stop panel located below the bottom shelf
\n

\n

Optional lighting:

\n

\n
• Factory fitted LED spotlights x 2, located below the safety stop plate
\n
• LED strip lights are also available, with matching LED lights for fixed height cabinets - available separately (Product Codes: 61932 and 61931)
\n

\n

Wall cabinet requirements:

\n

\n
• Internal widths (mm): 306, 406, 506, 606, 706, 806 and 906
\n
• Suits cabinet heights (mm): 700-840
\n
• Lift actual height (mm): 680
\n
• Wall cabinets over 700mm in height may require an internal fixed shelf above the lift
\n
• Internal depth (mm): 267 - 311
\n
• Side thickness (mm): 16 - 20
\n

\n

Technical details:

\n

\n
• Colour: White
\n
• Width of shelves (mm): 306, 406, 506, 606, 706, 806 and 906
\n
• Depth of shelves (mm): 240mm
\n
• Unit height (mm): 680
\n
• Gap from wall for tiling space (mm): 22
\n
• Vertical adjustment, max. 485mm
\n
• Speed level: 41mm / sec.
\n
• Bottom safety stop: White finished MDF panel with micro-switches located beneath lowest shelf. When the panel is touched the lift stops
\n
• Electrical connection: Mains plug for 230 V, max 0.5A
\n
• Power consumption: Max 5A (1150 W)
\n
• IP-class: IP 20
\n
• Note: The Wireless and Remote-Control options require an additional plug socket for the remote receiver
\n
• The plug sockets for the Verti should be located 50mm above the wall unit
\n
• Control Voltage: 5 V
\n
• Lighting Voltage: 24 V
\n
• Weight including shelves, max. size: 28kg
\n
• Max. Load in a cabinet / Lifting force: 60kg
\n
• Noise pressure: Less than 70 dB(A)
\n

\n

Materials:

\n

\n
• Shelves: (19mm) White melamine
\n
• Safety plate: 12mm MDF
\n
• Sides: Crylone Softone
\n
• Metal Parts: Powder-lacquered (White RAL 9003)
\n
• Sliding rail: Aluminium
\n

\n

Warranty:

\n

\n
• 5-year manufacturer warranty
\n
• This product comes with a 5-year warranty against manufacturing defects when registered on Granberg's website. Without registration, our standard 3-year warranty applies
\n

\n

Manufacturer product codes:

\n

\n
• 840KA-040, 840KA-050, 840KA-060, 840KA-070, 840KA-080, 840KA-090, 840KA-100
\n

\n

Please note:

\n

\n
• For the installation of the Verti 840 lifting system, you must remove the shelves and base of the wall cabinet.
\n
• Please note, the Verti-840KA is not compatible with an “In-frame” wall cabinet. There is a pinch / entrapment risk with the front frame.
\n
