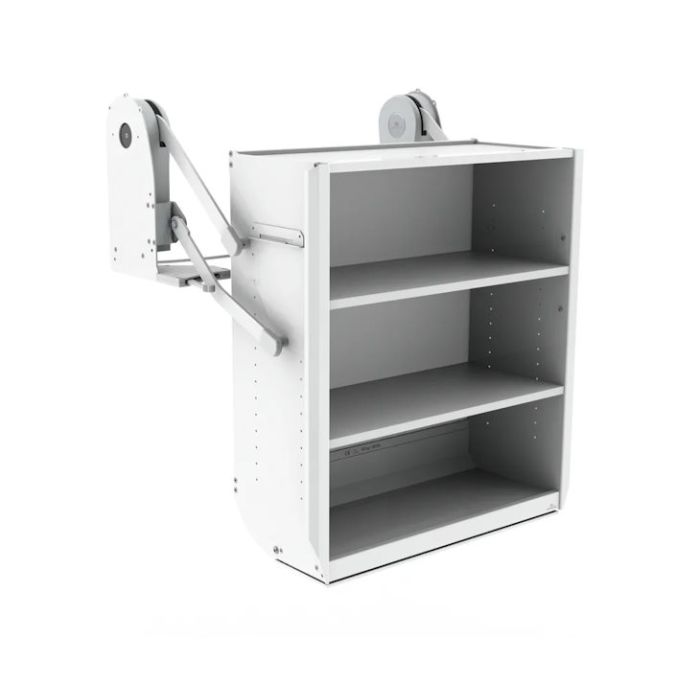

Granberg Wall Cabinet Lift InDIAGO 510SA - 81 cm Height, 26 cm Depth

The Granberg InDiago 510SA is a height adjustable wall cabinet lift for the kitchen.

Fitted inside the cabinet, the lift lowers the cabinet shelves and contents in a diagonal motion to the worktop front below.

This version of the InDiago is suitable for cabinets with an internal depth of 260-309mm and an overall height of 850mm or above. The width of the intended cabinet can be selected above, along with a choice of control options.

Key benefits:

• Motorised, steplessly adjustable 540mm downwards and 373mm outwards electric height adjustable wall cabinet lift
• Lowers the cabinet's shelves and contents in a diagonal motion to the worktop front below
• Shelf depth 230mm
• Quiet motors and discreet styling
• Integrated safety feature prevents the movement of the lift in the event of an obstruction
• Doors open automatically as lift is operated - doors can also be opened manually if required

Choice of controls:

• Recessed mounting Granberg Corded Control Button in ALU-design, with 5m Control Cable (Product Code: 61210)
• Recessed mounting Granberg Corded Mini Control Buttons, with 5m Control Cable (Product Code: 61316)
• Recessed mounting Granberg Wireless Mini Control Buttons (Product Code: 61375)
• Recessed mounting Granberg Wireless Control Button in ALU-design (Product Code: 61370)
• Surface mounting Granberg Wireless Control Button in ALU-design with Extension Frame (Product Code: 61370 + 61355)
• Granberg Single Channel Remote Control - Black (Product Code: 61385-10)
• Multi-channel remote controls are also available if you are installing multiple systems, contact us to discuss your requirements

Integrated safety system:

• Each lift is supplied fitted with a safety switch located below the bottom shelf
• This safety switch prevents the lift from moving if it comes into contact with an external source
• The lift also prevents movement if the doors cannot be fully opened
• An audio signal is sounded if the unit encounters any operational issues

Wall cabinet requirements:

• Cabinet width (mm): 500 to 1000
• Cabinet height (mm): 850 or higher
• Fits cabinets with inner depth (mm): 260 - 309
• For cabinet side thickness (mm): 16 - 20

Technical details:

• Mechanism height (mm): 810
• Mechanism depth (mm): 260
• For cabinet side thickness (mm): 16 - 20
• Max load (kg): 40
• Speed (mm / s): 23
• Height adjustment: Motorised, steplessly adjustable 540mm downwards, 373mm outwards
• Electrical connection: Mains plug for 230 V, max 2.0A
• IP-class: IP 30
• Electronics and motor system "Plug and Play"
• No additional power sockets are required for the remote receiver for the Wireless and Remote Control options

Materials:

• Cabinet lifting system in powder-lacquered aluminium (white)
• Back and ceiling of HDF. Shelves of white melamine (16mm)
• Powder-lacquered sheet metal parts (white)

Warranty:

• 5-year manufacturer warranty
• This product comes with a 5-year warranty against manufacturing defects when registered on Granberg's website. Without registration, our standard 3-year warranty applies

Manufacturer product codes:

• 510SA-050, 510SA-060, 510SA-070, 510SA-080, 510SA-090, 510SA-100

Please note:

• Please note, the InDiago is not compatible with an “In-frame” wall cabinet, the mechanism will collide with the front frame
• For the InDiago to function two doors on the cabinet are required
• Compatible with soft close hinges
