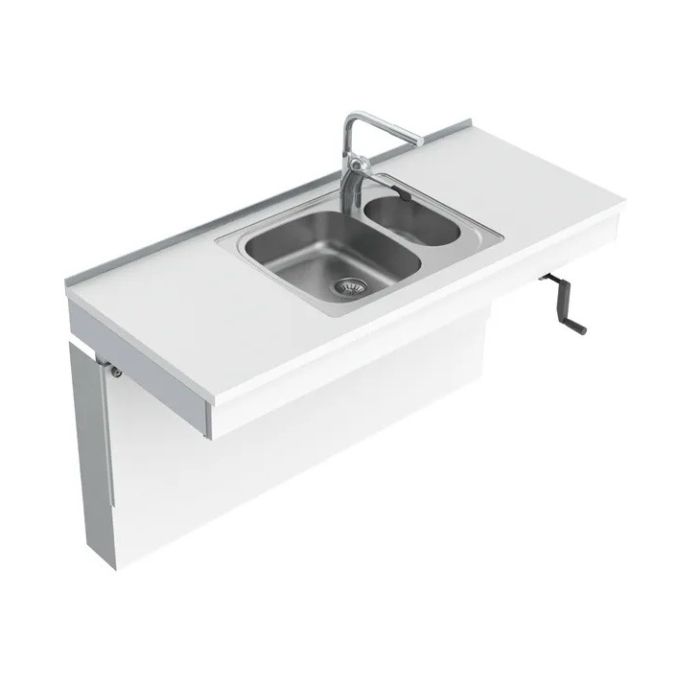

Granberg Wall Mounted Cranked Sink Module 6350-ES20 - Centre, Choice of Widths 790-1590mm

Granberg’s Sink Module 6350-ES20C wall mounted with 300mm of step less height adjustment by a cranked winding handle. Central insulated ES20 under-glued inset kitchen sink with 1+1/2 shallow depth 120mm sink bowls with overflows and a 30mm White laminate worktop. The sinks insulated underside prevents scalding and burns to the user.

Choice of optional Granberg FM Mattsson kitchen monobloc mixer taps, 190mm easy to reach lever with a swivel spout - with or without dishwasher cut-off valve.

Folding crank handle, prevents removal and theft, that can be ordered left or right hand mounted.

Compatible with any kitchen manufacturer this complete manual worktop lifting system is easy and quick to install.

The modules are manufactured 10mm shorter in width, to allow for a 5mm clearance gap at both ends for safe movement, ideal for the direct replacement of 800 to 1600mm width cabinets. The module has a reduced depth of 15mm to accommodate splashbacks and wall tiles.

Electric floor standing systems or Manual wall mounted variations are also available.

Key benefits:

• Centred kitchen sink module with 300mm of hand cranked height adjustment, 700-1000mm above floor, plus the 30mm worktop
• Worktop décor - K1040 Un 30mm White Laminate finished with a brushed aluminium rear edge trim
• Ingenious folding crank handle, prevents removal and theft
• Tilt able worktop plane for adjustment
• Full extension drawers can be added, as a factory fitted option - (Contact us if required)
• Range of widths 790, 990, 1190, 1390 and 1590mm to suit standard kitchen base unit spaces: 800, 1000, 1200, 1400 and 1600mm
• The modules are 10mm shorter in width to allow for a 5mm gap both sides of the unit for the up/down movement
• Adjustable depth 576-606mm including the Alu. front to suit adjoining cabinets and worktops
• 100mm free space below the foot of each leg for services
• Quick solution, top frame supplied pre-assembled for fast site installation
• White Powder Coated RAL 9003 aluminium 103mm facia front with plastic end caps
• Centre mounted insulated ES20 kitchen sink with one shallow bowl and one shallow rinse bowl; with overflow. Inset and under-glued into the worktop
• Optional Granberg FM Mattsson (FMM) kitchen monobloc mixer tap with 190mm easy reach lever and swivel spout that can be adjusted to 60°, 85°, 110°, 360° or fixed
• Pair of flexible Water Hoses 2-pack, 3/8", length 500mm with Tap connectors for FMM taps

Optional choice of tap style:

• - 60210 FMM Inc. dishwasher shut off valve (Not WRAS approved)
• - 60211 FMM Excl. dishwasher shut off valve (Not WRAS approved)
• All components available separately

Sink Module 6350-ES20 Centre includes:

• Wall mounted Manulift 6350 with 2x legs
• Folding crank handle, prevents removal and theft, left or right hand located - as per the product image
• 2x 12mm matt white melamine cover panels hide service installations under the worktop
• White aluminium front facia
• Worktop décor - K1040 Un 30mm White Laminate
• Brushed aluminium rear edge strip
• Centre mounted insulated ES20 under-glued inset sink with dual shallow traps, strainer wastes and a flexible drain hose
• Optional choice of Granberg FMM Mixer tap with long lever with or without dishwasher cut-off valve, and flexible water hoses
• Note: Tap hole undrilled - Tap hole cutter included

Recommended accessories:

• Full extension, push-to-open integrated drawers
• Cutlery trays
• Mini cabinet on wheels
• FMM long lever kitchen mixer taps, tap hole cutter and flexible hoses

Technical details:

• Height adjustment: Manually cranked steplessly adjustable by 300mm (700 - 1000mm excl. worktop)
• Crank handle inset from left- or right-hand side of the worktop end by 235mm
• Folding crank handle, prevents removal and theft
• 1x turn for height adjustment of 10mm
• Frame depth: 576 - 606mm from the wall (Incl. front)
• Tilt able worktop plane for adjustment
• Front height: 103mm
• All fittings for assembly supplied, wall fixings not included
• Space to adjoining wall / cabinet side (mm): 5
• Space to wall (for tiles): 15mm
• Tiling: From 700 mm above the floor (alternatively tile down to floor level)
• Worktop frame Material: Aluminium frame
• ES20 sink overall size: 616mm width x 496mm depth
• Main bowl size: 340mm width x 400mm depth x 120mm deep
• Rinse bowl size: 160mm width x 295mm depth x 120mm deep
• Plate thickness: 0.8 mm, brushed stainless steel
• Shallow traps, strainer wastes and a flexible waste kit

Warranty:

• 3 year manufacturer warranty
• This product comes with a 5-year warranty against manufacturing defects when registered on Granberg's website. Without registration, our standard 3-year warranty applies

Please note:

• Due to the custom nature of this product, it is made-to-order and is therefore non-returnable
• The Tap hole is not pre-drilled
