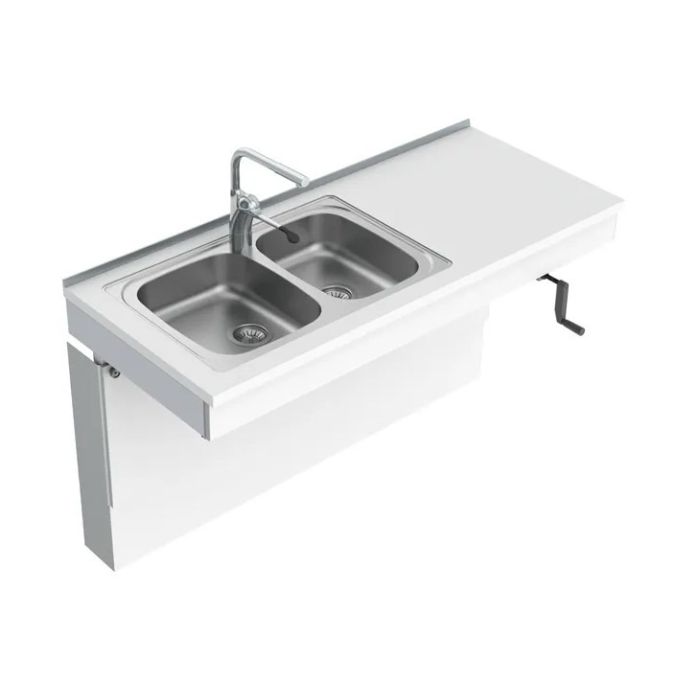

Granberg Wall Mounted Cranked Sink Module 6350-ES30 - Left, Choice of Widths 990-1590mm

Granberg’s Sink Module 6350-ES30L wall mounted with 300mm of step less height adjustment by a cranked winding handle. Left hand insulated ES30 under-glued inset kitchen sink with two shallow 120mm depth bowls, with overflows and a 30mm White laminate worktop. The sinks insulated underside prevents scalding and burns to the user.

Choice of optional Granberg FM Mattsson kitchen monobloc mixer taps, 190mm easy to reach lever with a swivel spout - with or without dishwasher cut-off valve.

Folding crank handle, prevents removal and theft, that can be ordered left or right hand mounted.

The modules are manufactured 10mm shorter in width, to allow for a 5mm clearance gap at both ends for safe movement, ideal for the direct replacement of 1000 to 1600mm width cabinets. The module has a reduced depth of 15mm to accommodate splashbacks and wall tiles.

Electric floor standing systems or Manual wall mounted variations are also available.

Key benefits:

• Left hand kitchen sink module with 300mm of hand cranked height adjustment, 700-1000mm above floor, plus the 30mm worktop
• Worktop décor - K1040 Un 30mm White Laminate finished with a brushed aluminium rear edge trim
• Folding crank handle, prevents removal and theft
• The wall mounted legs are concealed by 2x matt white sliding cover panels with 2x dark grey coloured steel end plates
• Tilt able worktop plane for adjustment
• Full extension drawers can be added, as a factory fitted option - (Contact us if required)
• Range of widths 990, 1190, 1390 and 1590mm to suit standard kitchen base unit spaces: 1000, 1200, 1400 and 1600mm
• The modules are 10mm shorter in width to allow for a 5mm gap both sides of the unit for the up/down movement
• Adjustable depth 576-606mm including the Alu. front to suit adjoining cabinets and worktops
• 100mm free space below each leg for services
• Quick solution, top frame supplied pre-assembled for fast site installation
• White Powder Coated RAL 9003 aluminium 103mm facia front with plastic end caps
• Left hand mounted insulated ES30 kitchen sink with twin 120mm depth shallow bowls, with overflow. Inset and under-glued into the worktop
• Optional Granberg FM Mattsson (FMM) kitchen monobloc mixer tap with 190mm easy reach lever and swivel spout that can be adjusted to 60°, 85°, 110°, 360° or fixed
• Pair of flexible Water Hoses 2-pack, 3/8", length 500mm with Tap connectors for FMM taps

Optional choice of tap style:

• - 60210 FMM Inc. dishwasher shut off valve (Not WRAS approved)
• - 60211 FMM Excl. dishwasher shut off valve (Not WRAS approved)
• All components available separately

Sink Module 6350-ES30 Left includes:

• Wall mounted Manulift 6350 with 2x legs
• Folding crank handle, prevents removal and theft, left or right hand located - as per the product image
• 2x 12mm matt white melamine cover panels hide service installations under the worktop
• White aluminium front facia
• Worktop décor - K1040 Un 30mm White Laminate
• Brushed aluminium rear edge strip
• Left hand mounted insulated ES30 under-glued twin bowl inset sink with dual shallow traps, strainer wastes and a flexible drain hose
• Optional choice of Granberg FMM Mixer tap with long lever with or without dishwasher cut-off valve, and flexible water hoses
• Note: Tap hole undrilled - Tap hole cutter included

Recommended accessories:

• Full extension, push-to-open integrated drawers
• Cutlery trays
• Mini cabinet on wheels
• FMM long lever kitchen mixer taps, tap hole cutter and flexible hoses

Technical details:

• Height adjustment: Manually cranked steplessly adjustable by 300mm (700 - 1000mm excl. worktop)
• Crank handle inset from left- or right-hand side of the worktop end by 235mm
• Folding crank handle, prevents removal and theft
• 1x turn for height adjustment of 10mm
• Max. distributed load / Lifting force: 100kg (220lbs)
• Frame depth: 576 - 606mm from the wall (Incl. front)
• Tilt able worktop plane for adjustment
• Front height: 103mm
• All fittings for assembly supplied, wall fixings not included
• Space to adjoining wall / cabinet side (mm): 5
• Space to wall (for tiles): 15mm
• Tiling: From 700 mm above the floor (alternatively tile down to floor level)
• Worktop frame Material: Aluminium frame
• ES30 sink overall size: 766mm width x 496mm depth
• Main bowl size: 340mm width x 400mm depth x 120mm deep
• Rinse bowl size: 293mm width x 400mm depth x 120mm deep
• Plate thickness: 0.8 mm, brushed stainless steel
• Shallow traps, strainer wastes and a flexible waste kit

Warranty:

• 3 year manufacturer warranty
• This product comes with a 5-year warranty against manufacturing defects when registered on Granberg's website. Without registration, our standard 3-year warranty applies

Please note:

• Due to the custom nature of this product, it is made-to-order and is therefore non-returnable
• The Tap hole is not pre-drilled
