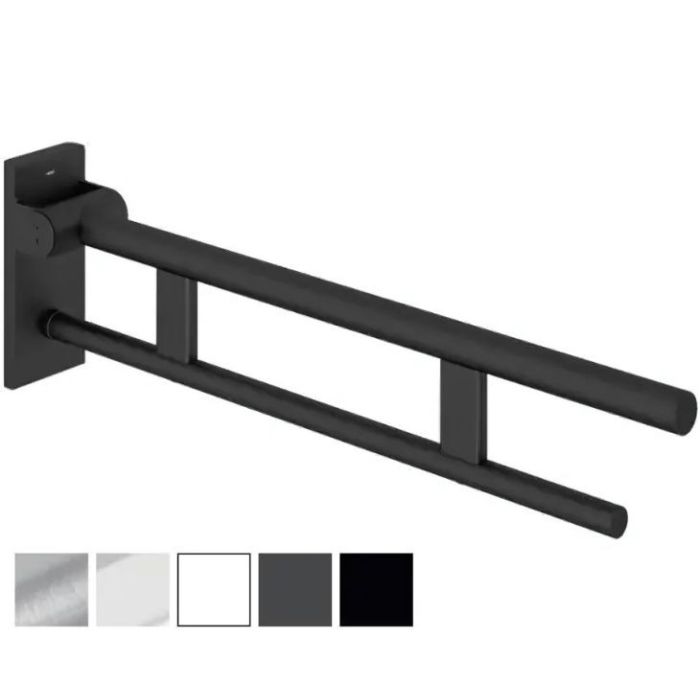

HEWI System 900 - 900mm Mobile Hinged Support Rail Duo, OPT Leg & Cover Plates - Choice of Finish

The HEWI Duo Mobile support rail, with two parallel round gripping levels arranged on top of each other, made of quality stainless steel. Folding support arm with a friction hinge, and 900mm projection. Fixings are concealed, creating a modern appearance. Permanently smooth and easy moving joint. With a choice of five stylish finishes.

The HEWI System 900 mobile support rail can be dismounted from the wall. Specifically beneficial for fitting into hotels, Airbnb’s, B&B’s, and domestic properties creating flexible usage when the rail is not in use or is not required.

Once the rail has been removed the wall mounting plate can be concealed with an optional colour matching cover plate. The mounting plates and covers are also available separately.

Optional colour matching HEWI floor supports legs, are also available in two lengths 565 and 645mm, for retrofitting onto the rails to increase stability when the support rail is in use.

Using the System 900 you can create a stylish and flexible handrail installation.

Key benefits:

• Suitable for both wet and dry environments
• Friction hinge for assisted use
• Folding rail
• Easy installation
• Pore-free surfaces
• Doc M compliant
• Choice of five finishes / Product Code:
• - Matt Black / 900.50.40560DC
• - Powder Coated Matt White / 900.50.40560DX
• - Satin Finished / 900.50.405XA
• - Chrome Plated / 900.50.40540
• - Matt Dark Grey Pearl Mica / 900.50.40560SC

Technical details:

• Top rail 33.7mm diameter
• Load tested to 100kg (220lb)
• Bottom rail 25mm diameter
• 900mm length
• 210mm high and 101mm wide
• Secured by fixing screw to prevent unintentional removal

Optional Floor Support:

• Two length options: 565mm or 645mm
• Choice of five matching finishes to support rails
• Diameter of 16mm
• Height adjustment within +/- 15mm range

Warranty:

• 1 year manufacturer warranty

Please note:

• The fixing screws/bolts/wall plugs that are not included - the installer should select the correct HEWI System 900 - fixing based on wall type
• Please refer to the installation instructions for more information
