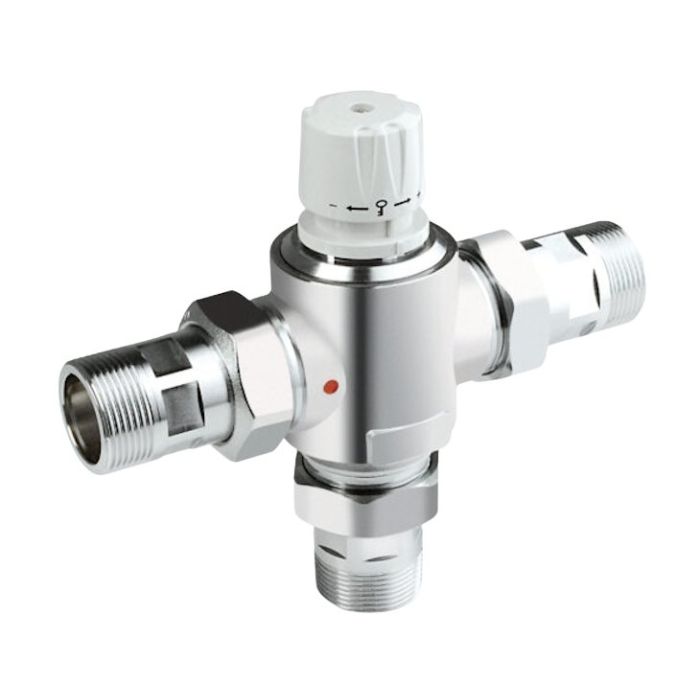

Inta Intamix Pro 1" TMV Screwed Male Iron with Check Valves & Filters

The Intamix Pro 1" with male union connections is engineered for installations where a high volume of water (see flow chart) is required at the outlet, such as shower blocks and centralised mixing systems. Designed to deliver consistently high flow rates at a stable temperature.

Systems of this type demand accurate and consistent temperature control, particularly where user demand causes fluctuations in flow rates.

In hard water areas, it is strongly recommended that a water softener—such as ActivFlo or ActivFlo Lite is installed to minimise the risk of calcium scale build-up and maintain long-term performance.

Intamix Pro reflects the proven quality and reliability of the wider Intatec washroom solutions range.

Key benefits:

• Thermostatic protection for safe, controlled water temperature
• Tamper-proof head for added security
• Single-piece thermostatic cartridge for durability and reliability
• High flow rate with minimal pressure drop
• Adjustable outlet temperature
• Temperature stability: ±2°C
• Can be installed in any orientation, either vertically or horizontally

Technical details:

• Intamix Pro 1” with male union connections MxMxM
• Supplied with check valves and filters
• Temperature range: 30°C - 65°C
• Max. working pressure: 10 bar - Static
• Max. working pressure: 5 bar - Dynamic
• Min. working pressure: 0.2 bar
• Max inlet temperature: 90°C
• Max. inlet ratio (H/C or C/H): 2:1
• Accuracy: ±2%

Installation Guidance:

• The following are shown on the mixer body:
• - Hot water inlet, denoted by the letter ‘H’
• - Cold water inlet, denoted by the letter ‘C’
• - Mixed water outlet, denoted by the letters ‘MIX’

Warranty:

• 1 year manufacturer warranty

Please Note:

If the thermostatic mixing valve is not installed, commissioned and maintained properly, according to the instructions contained in this manual, it may not operate correctly and may endanger the user.
