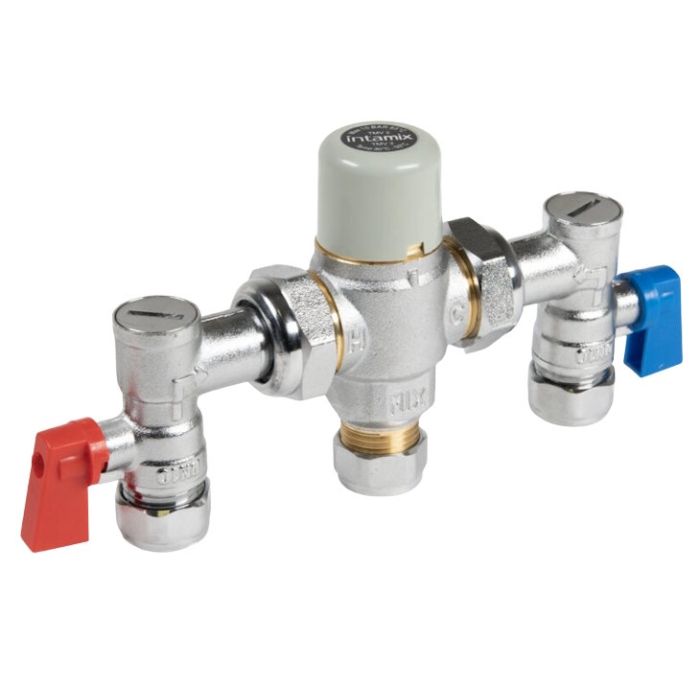

Inta Intamix TMV 2/3 Thermostatic Mixing Valve with 15mm Service Valves

Inta Intamix 15mm thermostatic failsafe mixing valve with service valves.

The Intatec range of thermostatic mixing valves are designed primarily for single outlet use.

It delivers safe, blended hot water to water outlets, making it ideal for use in commercial properties.

Key benefits:

• One valve to suit all applications
• One-piece cartridge construction for ease of maintenance and replacement
• High flow rates with low pressure drops
• Integral check valves
• Building Regulations Part G compliant
• Robust and reliable
• Easy installation
• Anti-scald technology
• Highly resistant to scaling
• Tamper proof head

Approvals:

• TMV2 approved
• TMV3 approved
• WRAS approved

Technical details:

• Temperature adjustment range: 30°C - 50°C
• Temperature stability: ±2°C
• Max inlet temperature: 85°C
• Max operating pressure: 10 bar static
• Min inlet pressure: 0.2 bar dynamic
• Min temperature to achieve failsafe: 10°C
• Max pressure inlet differential: 5:1

Warranty:

• 1 year manufacturer warranty
