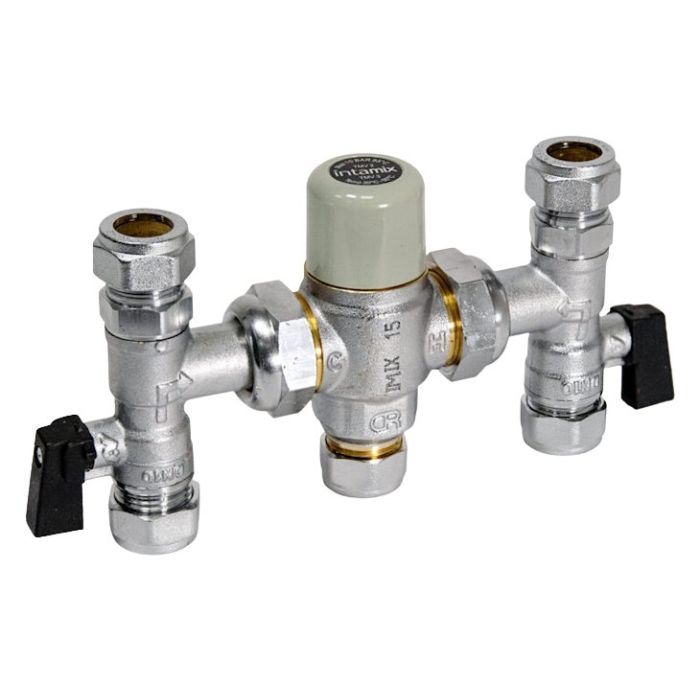

Inta Intamix Thermostatic Mixing Valve 22mm with Service Valves & Test Point

Inta Intamix 22mm thermostatic failsafe mixing valve mixing valve with integral check valves, isolating ball valves and inspection points.

The Intatec range of thermostatic mixing valves are designed primarily for single outlet use.

It delivers safe, blended hot water to water outlets.

Key benefits:

• One valve to suit all applications
• One-piece cartridge construction for ease of maintenance and replacement
• High flow rates with low pressure drops
• Robust and reliable
• Easy installation
• Anti-scald technology
• Highly resistant to scaling
• Tamper proof head

Safety:

• Anti-scald failsafe technology

Technical details:

• Temperature adjustment range: 30°C - 50°C
• Temperature stability: ±2°C
• Max inlet temperature: 85°C
• Max operating pressure: 10 bar static
• Min inlet pressure: 0.2 bar dynamic
• Min temperature to achieve failsafe: 10°C
• Max pressure inlet differential: 5:1

Warranty:

• 1 year manufacturer warranty
