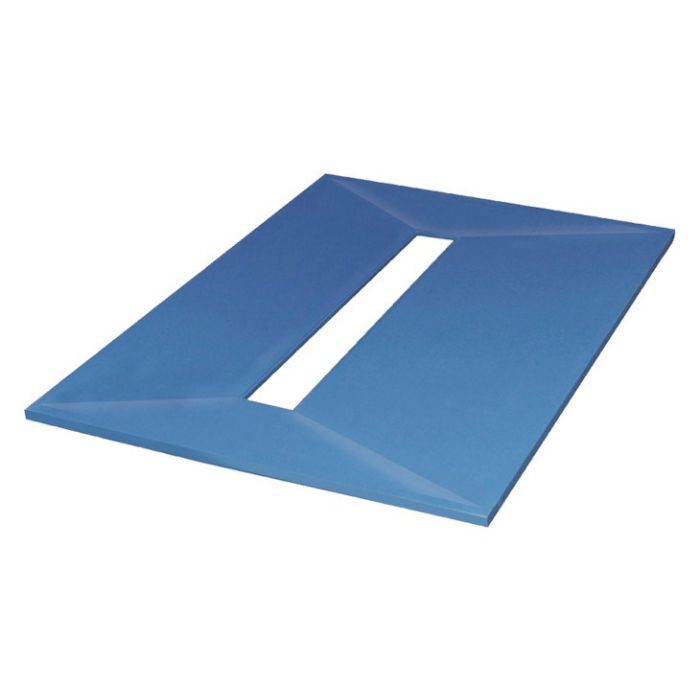

Maxxus Linear Floor Former – Multiple Sizes Available (Tray Only)

Maxxus linear bare shower floor former deck, without the waste or fitting kit. For tiled, microcement and vinyl floor finishes, depending on the Purus waste you are fitting.

Available in a range of sizes with either 600 or 800mm width outlets for your Purus linear drain, which are available with a range of three outlets, 52mm Low side, 105mm Side and 105mm End Parallel / side side outlet.

Can be used with tiled, microcement and vinyl floor finishes, depending on the Purus waste you are fitting and tanking system you are installing.

Complete kits are also available.

Key benefits:

• Can be used with tiled, microcement and vinyl floor finishes - subject to your wet room tanking system
• Suitable for timber and concrete floors
• Strong and durable base yet only 22 or 24mm thick - refer to plan drawings for information
• Vacuum formed GRP
• Made from 50% recycled materials and is 100% recyclable
• Solid right through - no pockets or hollow cavities
• Creates a level access floor with no step
• Built in gradients for water removal to the waste
• Accepts 470kg (75 stone) loading over 400mm joist centres
• Self-supporting - no requirement for additional support underneath
• May be trimmed down to any size
• Suitable for underfloor heating
• Choice of size

Installation:

• Fast former installation - laid straight on joists no under boarding needed
• Totally flat underside and recessed screw holes allow for easy fixing

Warranty:

• Maxxus floor formers come with a 25 year manufacturer guarantee

Manufacturer product codes:

• MT6821983, MT6821988, MT6821984, MT6821987, MT6821985, MT6821989, MT6821981, MT6821986, MT6821982
