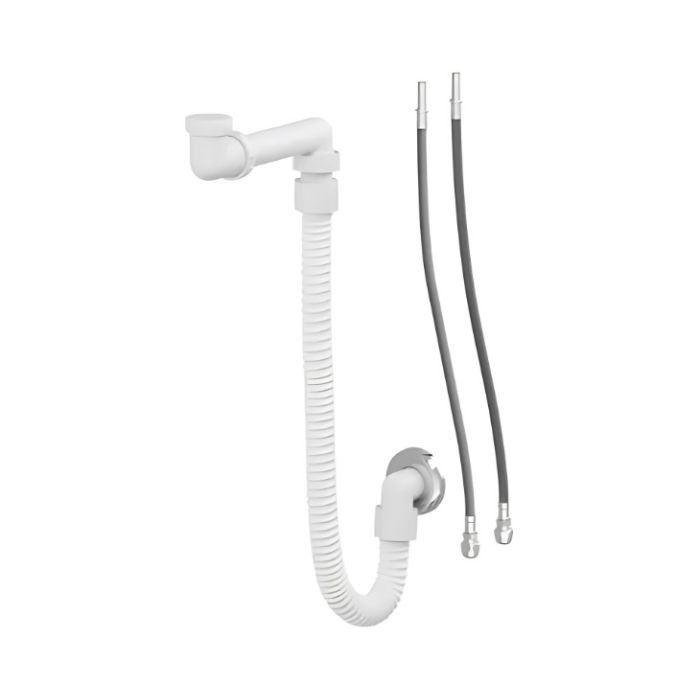

Pressalit 500mm Flexible Feeds & 700mm Flexible Waste System - Washbasin Lifts

Product Code: R2071

Delivery in 2–3 working days

Collection in Ready in 2 hours

£280.02 Incl. Vat
£233.35 Excl. Vat

Pressalit 500mm flexible hot and cold feeds with a 700mm flexible waste pipe for use with the Pressalit height adjustable washbasin lifts.

The flexible feed and waste systems are needed to allow adjustment of the washbasin and shower mixer.

To maximise product flexibility, it is important that the plumbing connections are correctly positioned and do not obstruct movement.

These flexible feed and waste systems can be further supplemented with the water trap R2058 and air relief kit R2059.

Key benefits:

  • Flexible feeds / waste system for the UK
  • 500mm flexible hot and cold feeds, braided stainless steel hoses with 1/2" brass couplings at either end
  • 2x right-angled isolating valves for connecting to the water supply
  • Ø 32mm x 210mm overall length, waste pipe elbow (can be cut to length)
  • Supplied female inlet nut with 1¼" to 32mm ISO Thread washbasin waste outlet connector
  • 700mm flexible 32mm waste pipe with adaptor to fit to 40mm compression coupling
  • Note: The 40mm waste connection will fit UK plumbing with the aid of a compression fitting (not included)
  • Maximum temperatures of use are 80°C (continuous use) and 90°C (temporary use)
  • WRAS approved

Materials:

  • Feed pipes: SPX plastic, braided with stainless steel
  • Waste pipe: Flexible, corrugated white PVC with a diameter of 32mm, supplied 40mm adaptor
  • Elbow with removable connector: PP (polypropylene) with a seal of TPE (thermoplastic elastomer)
  • Seal: The seal is made from EPDM

Warranty:

  • 5 year manufacturer warranty

Please note:

  • Pressalit recommend fitting the waste wall connection and isolating valves on the feed connections at 90° angles, pointing downwards
  • Avoid the use of petroleum products and solvents with this waste kit

Manufacturer Pressalit
Component Flexible Feeds, Flexible Waste, Waste Kit - Wash Basin
Hose Length (mm) / Application 500 & 700 / Feeds & Waste
Technologies Isolating Valves
Approvals WRAS Approved

DEBUG: Installation guides section loaded

No content found for installation_guides attribute

Delivery timeReady in 2 hours
Returns Status Returnable in 14 days

Reviews

Who Viewed This Also Viewed

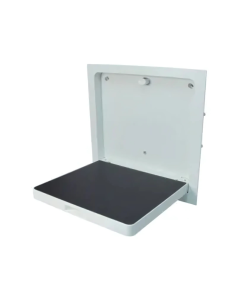

PBA Programma CAP White Concealed Shower Seat with Fitting Kit for Stud Walls
£858.00 £715.00

Delivery in 2–3 working days

Collection in Ready in 2 hours

Vauth-Sagel VS COR Wheel Pro, Three Quarter Carousel, Pole Free, Grey Base & Silver Rails - 900mm CAB
£384.00 £320.00

Delivery in 2–3 working days

Collection in Ready in 2 hours

AKW Low Depth GW90 Gravity Waste
£17.59 £14.66

Delivery in 2–3 working days

Collection in Ready in 2 hours

Showerwall Acrylic Wall Panels - Vintage China Blue
As low as £568.80 £474.00

Delivery in 2–3 working days

Collection in Ready in 2 hours

PBA Programma CAP 700mm White Concealed Drop Down Support Arm for Stud Walls
£782.40 £652.00

Delivery in 2–3 working days

Collection in Ready in 2 hours

Methven Waipori Satinjet Kit
£77.10 £64.25

Delivery in 2–3 working days

Collection in Ready in 2 hours

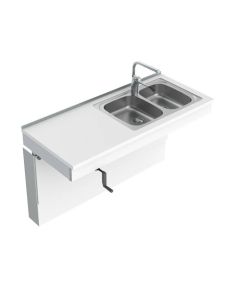

Granberg Wall Mounted Cranked Sink Module 6350-ES30 - Right, Choice of Widths 990-1590mm
As low as £0.00 £0.00

Delivery in 2–3 working days

Collection in Ready in 2 hours

Granberg EST-500 Shallow Bowl Kitchen Sink with Trap and Flexible Waste Kit - 540 x 440 x 120mm
£1,448.40 £1,207.00

Delivery in 2–3 working days

Collection in Ready in 2 hours

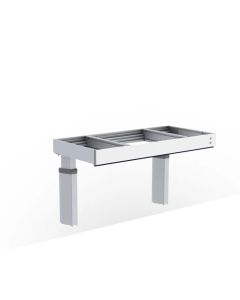

Granberg Baselift Module 6300HA-BM, Wall, 103mm Front, ADJ Worktop Lift 1190-1790mm
