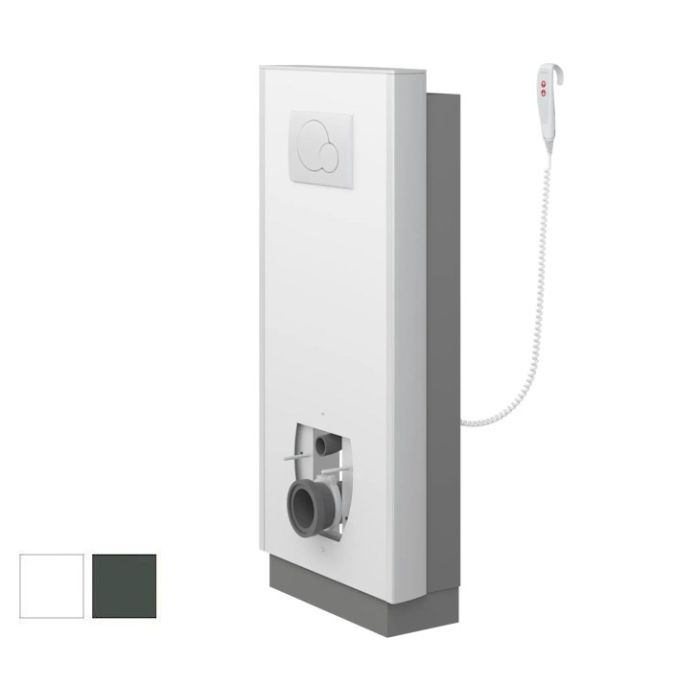

Pressalit SELECT TL1 Toilet Lifter, ELECT ADJ, Wired Hand Control, Wall Outlet - Choice of Colour

Electric height adjustable toilet lifter from the Pressalit SELECT range.

The toilet lifter provides 400mm of continuous adjustment, via the wired hand controller, between 425 - 825mm.

The lifter can be at different heights to suit different users/transfer techniques, powered adjustments with an easy to use controller where frequent adjustments are essential.

The SELECT toilet lifter can be further complimented with fixed or removable backrests or a shower toilet for a bespoke solution.

Includes a Geberit concealed cistern with dual flushing, pre-set at 3/6 litres. The toilet lifters front cover is available in a choice of colours.

This slim version has no support arms and has a rear / wall waste outlet.

Key benefits:

• SELECT TL1 toilet lifter, electrically height adjustable, even with the user seated
• The toilet can be raised and lowered 400mm using the wired hand control
• Designed with a minimum of grooves, slots and holes making cleaning fast and effective
• Geberit cistern with dual flushing system pre-set at 3/6 litres
• The toilet pan and toilet seat are not included (order separately)
• Pressalit backrests fixed and removable can be fitted to the front plate (order separately)
• Choice of colour

WC pan compatibility:

• Toilet lifter WC pan fixings 180mm c/c
• Compatible with the Pressalit Wall hung toilet pans with a 540mm or 700mm projection
• Please contact us to check for compatibility with a shower toilet.

Technical details:

• Overall width (mm): 555
• Overall depth (mm): 215
• Height Min-Max (mm): 1230-1630
• Height adjustment (mm): 400
• Height adjustment range (mm): 425-825
• Geberit cistern with dual flushing system pre-set at 3/6 litres
• Geberit dual flushing plate, surface mounted
• Wall waste outlet
• Weight (kg): 60.0
• Maximum user weight (kg): 200
• Maximum load, including user mass and accessories (kg): 235
• Speed, up (mm/s): 12
• Speed, downwards (mm/s): 12
• Noise level (dB): 48
• WRAS Approved

Electrical technical details:

• Please refer to the PDF download for the installation instructions
• Mains connection (V): 230
• Mains cable length to Transformer (mm): 3500
• Hz: 50-60
• Electrical rating (IP): IPX6
• Power consumption (max. load) (W): 70
• Power consumption (standby) (W): 2
• Actuator (motor): LA31 Careline, (Linak), 4000N, IPX6
• Control box: CB9 Careline, (Linak), IPX6
• Wired remote control: HB3 (Linak), IP66
• Wired controller cable length from control box / transformer (mm): 3500
• Note: Upon installation the 2-pin plug must be removed and hard wired to a fused spur, as per electrical regulations

Materials:

• Materials: Toilet lifter is mainly constructed of anodised aluminium
• Materials: Front plate and the bottom plate are made of polystyrene (PS)

Declaration of conformity:

• Complies with the requirements of Council Directive 93/42/EEC concerning medical devices, as last amended by Council Directive 2007/47/EC of 5 September 2007
• It also complies with all relevant requirements in the Council Directive 2006/42/EC (of 17 May 2006) on machinery and the Council Directive 2011/65/EC on RoHS

Warranty:

• 5 year manufacturer warranty

Manufacturer product codes:

• R8222000, R8222112

Returns: Please note:

• Due health and hygiene and infection control this product is non-returnable
