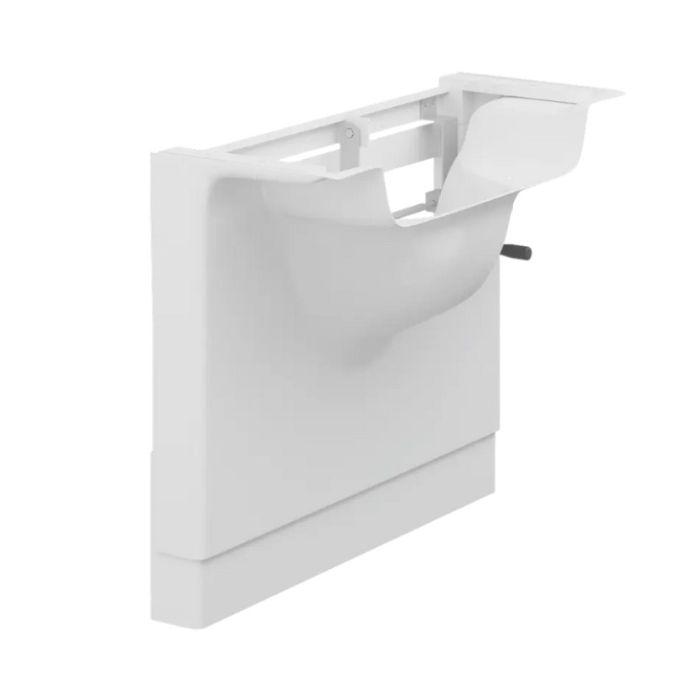

Pressalit MATRIX Manual Washbasin Unit, for Matrix Medium Washbasins R2120 & R2121

Manual height adjustable washbasin lift from the Pressalit MATRIX range with hand cranked adjustment for mounting the Pressalit Matrix Medium vanity washbasins.

The cranked handle provides 200mm of continuous step-less adjustment, between 510-710mm when mounted at floor level.

Wall mounted, with a white installation cover, concealed flexible feed / waste system and a shallow trap for a hygienic installation.

Key benefits:

• 200mm Stepless manual adjustment
• Hand cranked up/down control - allows the user to adjust the height of the washbasin themselves
• The hand crank is located to the right hand side of the washbasin lift
• Suitable for regular height adjustments - ideal for multi-user environments
• Concealed plumbing
• Smooth surfaces are easy to clean and attractive to look
• The sleek design greatly facilitates cleaning
• Includes WRAS approved flexible feeds and waste kit
• Includes fixing kit for the washbasin (excludes wall fixing kit)

Only compatible with ergonomic Matrix Medium vanity washbasins (Order separately):

• Both the sinks have grab handles at the front, that also function as a towel rail
• Product Code: R2120000 - with Overflow
• Product Code: R2121000 - without Overflow

Technical details:

• Height adjustment range (mm): 200
• Width (mm): 760
• Min. Height of bracket (excluding washbasin) (mm): 510
• Max. Height of bracket (excluding washbasin) (mm): 710
• Total projection from the wall (excluding washbasin) (mm): 325
• Depth of lower pedestal (mm): 82
• Weight (kg): 19.26
• Max user weight, including the washbasin (kg): 206
• Note: Care should be taken to avoid entrapment either side of the washbasin lift

Materials:

• Washbasin lifter: Powder-coated steel
• Front and the bottom covers: Made of White polystyrene (PS)

Declaration of conformity:

• This product is in compliance with all relevant requirements of regulation (EU) 2017/745 on medical devices
• It also complies with all relevant requirements in the Council Directive 2006/42/EC (of 17 May 2006) on machinery

Warranty:

• 5 year manufacturer warranty
