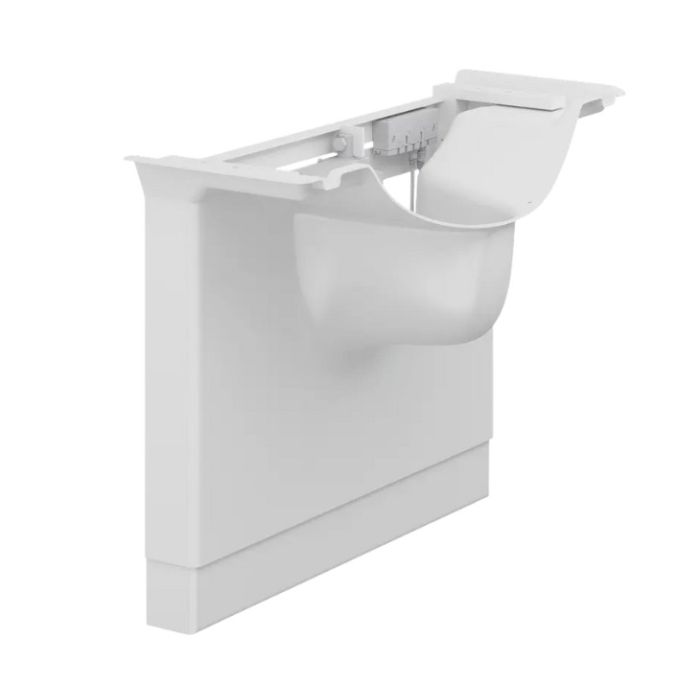

Pressalit MATRIX Powered Washbasin Unit, for Matrix Square Washbasins R2170 & R2172

Powered height adjustable washbasin lift from the Pressalit MATRIX range. Operated via the up/down buttons located in the right hand front edge of the Pressalit Matrix Square wash basins (order separately).

Electric height adjustable 200mm of continuous step-less adjustment, between 510-710mm when mounted at floor level, excluding the washbasin.

Wall mounted, with a white installation cover, concealed flexible feed / waste system and a shallow trap for a hygienic installation.

Key benefits:

• 200mm Stepless manual adjustment
• Electrically height adjustable - allows the user to adjust the height of the basin themselves
• Up/Down buttons are located in the right hand side of the MATRIX Square washbasins
• Suitable for regular height adjustments - ideal for multi-user environments
• Concealed plumbing
• Smooth surfaces are easy to clean and attractive to look
• The sleek design greatly facilitates cleaning
• Includes WRAS approved flexible feeds and waste kit
• Includes fixing kit for the washbasin (excludes wall fixing kit)

Only compatible with ergonomic Matrix Square washbasins (Order separately):

• Both the sinks electric up/down buttons are located on the front right hand side and have a safety stop strip on the underside of the front edge
• Product Code: R2170000 - with Overflow
• Product Code: R2172000 - with Overflow

Technical details:

• Height adjustment range (mm): 200
• Width (mm): 852
• Min. Height of bracket (excluding washbasin) (mm): 525
• Max. Height of bracket (excluding washbasin) (mm): 725
• Total projection from the wall (excluding basin) (mm): 328
• Depth of lower pedestal (mm): 82
• Weight (kg): 19.26
• Max user weight, including the washbasin (kg): 146
• Speed, up (mm/s): 11
• Speed, down (mm/s): 5
• Noise level (dB): 48
• Note: Care should be taken to avoid entrapment either side of the washbasin lift

Electrical technical details:

• Please refer to the PDF download for the installation instructions
• Mains connection (V): 230
• Mains cable length to Transformer (mm): 3500
• Current (A): 3.7
• Hz: 50-60
• Electrical rating (IP): IPX64
• Power consumption (max. load) (W): 70
• Power consumption (standby) (W): 1.5
• Actuator (motor): LA31 Careline, (Linak), 1500N, IPX6
• Control box: CB9 Careline, (Linak), IPX6
• Note: Upon installation the 2-pin plug must be removed and hard wired to a separate switched circuit not exceeding 30 mA, as per electrical regulations

Materials:

• Washbasin lifter: Stainless steel
• Front and the bottom covers: Made of White ABS with acrylic

Declaration of conformity:

• This product is in compliance with all relevant requirements of regulation (EU) 2017/745 on medical devices
• It also complies with all relevant requirements in the Council Directive 2006/42/EC (of 17 May 2006) on machinery and the Council Directive 2011/65/EC on RoHS

Warranty:

• 5 year manufacturer warranty
