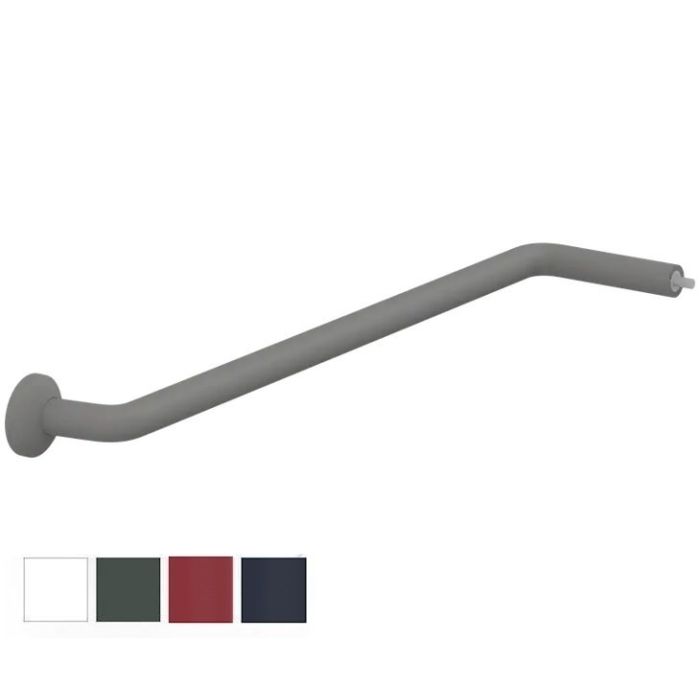

Pressalit PLUS Anglehandrail Section 762x154mm, Incl. Wall Rosette - Choice of Colour

Pressalit PLUS angled handrail section with horizontal 90° 762 x 154mm, 33mm diameter, with one wall rosette.

With connecting unit male joint, a wall mounting (Product code: RT360) has to be installed at all joints of tubes, not included.

When installed correctly with other components from the Pressalit PLUS handrail system, the rail will have a 50mm projection from the wall making it easier to take hold of the rail.

Key benefits:

• Horizontal angled handrail section (mm): 762 x 154
• Reversible right/left
• Diameter (mm): 33
• Projection from wall (mm): 50
• Connecting unit male
• For fixed mounting
• Easy and quick assembly
• Rail materials: Aluminium, with Polyester lacquer coating, Rosette cover cap: Cycoloy plastic
• Create rails for exact requirements/shape as needed
• Please note that (Product code: RT360xxx) PLUS handrail wall mounting with strap must always be installed at all joints of tubes or every 1200mm
• Maximum weight (with a span up to 1000mm): 210kg
• Maximum weight (with a span up to 1300mm): 150kg
• Range of colours available

Warranty:

• 5-year manufacturer warranty

Manufacturer product codes:

• RT345000, RT345035, RT345108, RT345112
