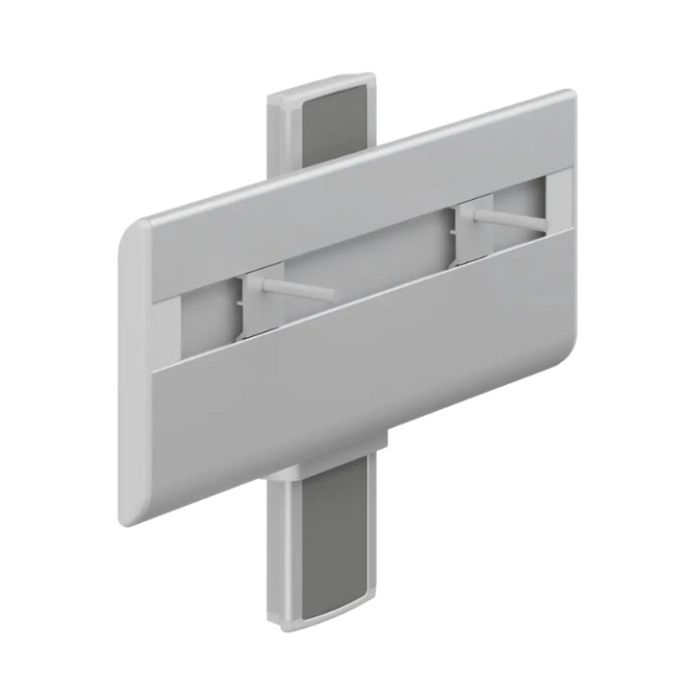

Pressalit PLUS Washbasin Bracket, Lever Control, Manually Height ADJ

Pressalit PLUS height adjustable washbasin bracket mounted on a vertical wall track with anthracite grey cover plate, for mounting the Pressalit Matrix Curve, Matrix Curve II and Matrix Small wash basins.

The bracket is operated via a manual lever, making it suitable for occasional height adjustments.

With the bracket mounted at the recommended height, the washbasin can be adjusted by 240mm from 728mm to 968mm above floor level.

Key benefits:

• Adapts to the progressive needs of individuals
• Suitable for occasional height adjustments up to 240mm
• Manually operated height adjustment, with lever control
• Note: Height adjustment requires 2 people and involves supporting the weight of the washbasin and part of the bracket
• Vertical Plus wall track with anthracite grey cover plate
• The wash basin bracket suits all types of bolt-mounted wash0basin
• The rounded, sleek design greatly facilitates cleaning
• Includes fixing kit for washbasin (excludes fixing kit for wall)

Technical details:

• Height adjustment range (mm): 240
• Width of bracket (mm): 618
• Height of bracket (mm): 235
• Total projection from the wall, excluding washbasin (mm): 72
• Width of wall track (mm): 128
• Height of wall track (mm): 424
• Weight (kg): 5.65
• Maximum load (kg): 135
• Suitable for washbasins that weigh (kg): 16-22
• Colour: Anthracite grey cover

Materials:

• Washbasin bracket primarily made of 10-micrometre anodized aluminium
• Bracket ends are capped with ABS polymer

Declaration of conformity:

• CE UK MDR This product is in compliance with all relevant requirements of:
• - Regulation (EU) 2017/745 on medical devices
• For the UK: - Medical Device Regulation (MDR) 2002 on medical devices

Pressalit recommended optional; WRAS waste kit:

• 700mm Flexible Feeds and 700mm Flexible Waste System (Product Code: R2075)
• 900mm Flexible Feeds and 900mm Flexible Waste System (Product Code: R2077)

Warranty:

• 5 year manufacturer warranty

Former manufacturer code:

• The Pressalit PLUS range has superseded several former Pressalit products
• This item has replaced: R4140
• Please check for any changes to the product specification
