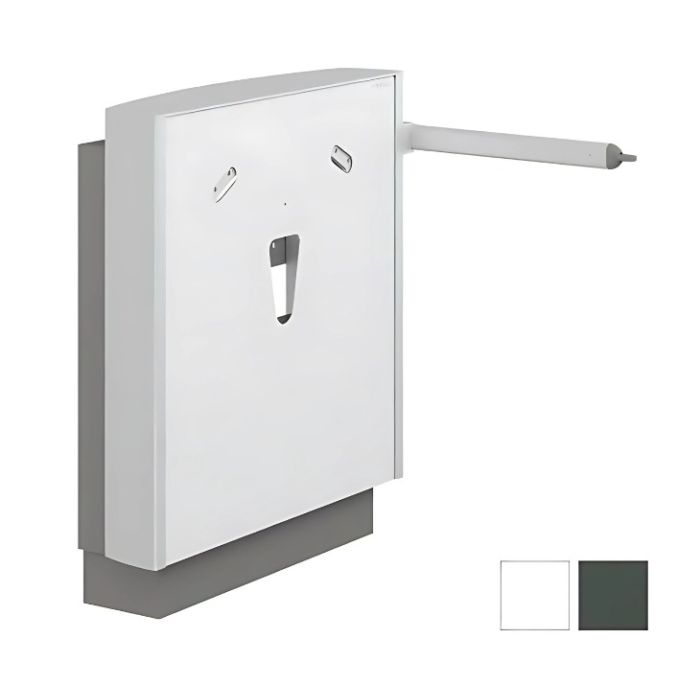

Pressalit SELECT Washbasin Bracket, Lever Control - Colour Choice

Electric height adjustable washbasin lift from the Pressalit SELECT range with lever control for mounting the Pressalit Matrix Curve, Matrix Curve II or Matrix Small washbasins.

Lever controlled, it provides 300mm of continuous step-less adjustment, between 670-970mm when mounted at floor level.

The washbasin lift front panel is available in 2 colours, Anthracite grey and White.

Key benefits:

• 300mm Stepless electrical adjustment
• Electrically operated with lever control - allows user to adjust the height of the washbasin themselves
• The height of the washbasin is easily adjusted by means of the lever control
• The lever control is placed by the front of the washbasin
• The lever control can be placed on the left or right-hand side of the washbasin
• Suitable for regular height adjustments - ideal for multi-user environments
• The arm that holds the lever control can also function as a towel rail
• The lever control is strong enough to be used as an extra support
• Hygienic concealed plumbing (Optional extra - Product code: R2075 feed and waste kit)
• Smooth surfaces are easy to clean and attractive to look
• The sleek design greatly facilitates cleaning
• Includes fixing kit for washbasin (excludes wall fixing kit)

Compatibility:

• Compatible with the Pressalit MATRIX CURVE, MATRIX CURVE II and MATRIX SMALL washbasins
• Possibly compatible with other washbasin manufacturers, please refer to the installation guidance and technical specifications

Technical details:

• Height adjustment range (mm): 300
• Width (mm): 666
• Min. Height of bracket (mm): 750
• Total projection from the wall (excluding washbasin) (mm): 170
• Length of lever control arm (mm): 390
• Weight (kg): 28.5
• For washbasins weighing (kg): 16-22
• Max load (including washbasin) (kg): 150
• Speed, up (mm/s): 21
• Speed, downwards (mm/s): 21
• Noise level (dB): 45
• Note: Care should be taken to avoid entrapment either side of the basin lift

Electrical technical details:

• Please refer to the PDF download for the installation instructions
• Duty cycle: The motor can be used for a maximum of 2 minutes of continuous operation, followed by 18 minutes pause
• Mains connection (V): 230
• Mains cable length to Transformer (mm): 3500
• Current (A): 3.7
• Hz: 50-60
• Electrical rating (IP): IPX4
• Power consumption (max. load) (W): 75
• Power consumption (standby) (W): 1.5
• Actuator (motor): LA31 Careline, (Linak), 1500N, IPX4
• Control box: CB9 Careline, (Linak), IPX6
• Note: Upon installation the 2-pin plug must be removed and hard wired to a fused spur, as per electrical regulations

Materials:

• Washbasin lifter: Mainly constructed of anodised aluminium
• Front plate and the bottom plate: Made of polystyrene (PS)
• Lever control: ABS polymer switch at the end of an anodized aluminium arm

Declaration of conformity:

• CE UK MDR-MASK-RoHS This product is in compliance with all relevant requirements of:
• Regulation (EU) 2017/745 on medical devices
• It also complies with all relevant requirements in the Council Directive 2006/42/EC (of 17 May 2006) on machinery and the Council Directive 2011/65/EC on RoHS
• Medical Device Regulation (MDR) 2002 on medical devices
• Supply of Machinery (Safety) Regulations 2008
• Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2012

Optional Pressalit recommended waste kit

• 700mm Flexible Feeds and 700mm Flexible Waste System (Product Code: R2075)

Warranty:

• 5 year manufacturer warranty

Manufacturer product codes:

• R4950000, R4950112
