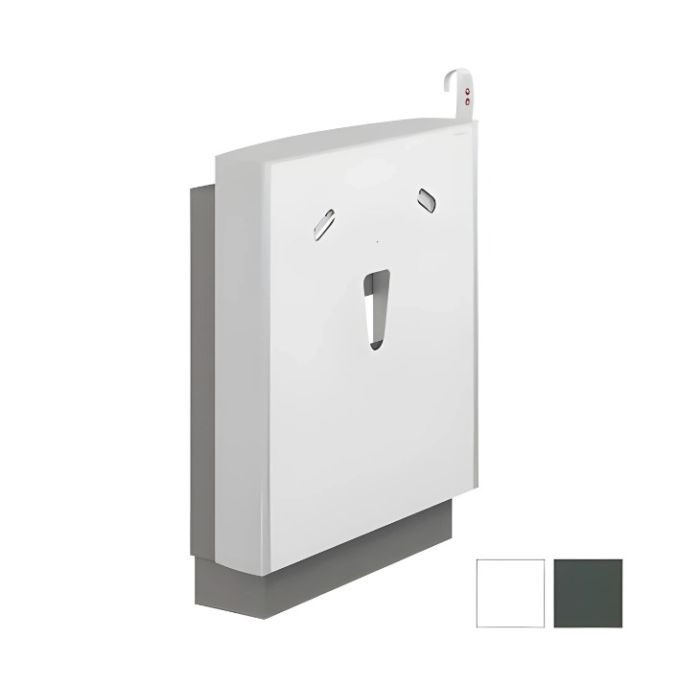

Pressalit SELECT Washbasin Bracket, Wired Hand Control - Colour Choice

Electric height adjustable washbasin lift from the Pressalit SELECT range with a wired hand control. For mounting the Pressalit Matrix Curve, Curve II or Matrix Small washbasins.

Wired hand controlled, it provides 300mm of continuous step-less adjustment, between 670-970mm when mounted at floor level.

The washbasin lift front panel is available in 2 colours, Anthracite grey and White.

Key benefits:

• 300mm Stepless electrical adjustment
• Electrically operated with wired hand control - allows user to adjust the height of the washbasin themselves
• The height of the washbasin is easily adjusted by means of the wired hand control
• Suitable for regular height adjustments - ideal for multi-user environments
• Hygienic concealed plumbing (Optional extra - Product code: R2075 feed and waste kit)
• Smooth surfaces are easy to clean and attractive to look
• The sleek design greatly facilitates cleaning
• Includes fixing kit for washbasin (excludes wall fixing kit)

Compatibility:

• Compatible with the Pressalit Matrix Curve, Curve II and Matrix Small washbasins
• Possibly compatible with other washbasin manufacturers, please refer to the installation guidance and technical specifications

Technical details:

• Height adjustment range (mm): 300
• Width (mm): 666
• Min. Height of bracket (mm): 750
• Total projection from the wall (excluding washbasin) (mm): 170
• Hand control cable length (mm): 3500
• Weight (kg): 28
• For washbasins weighing (kg): 16-22
• Max load (including washbasin) (kg): 150
• Speed, up (mm/s): 21
• Speed, downwards (mm/s): 21
• Noise level (dB): 45
• Note: Care should be taken to avoid entrapment either side of the basin lift

Electrical technical details:

• Please refer to the PDF download for the installation instructions
• Duty cycle: The motor can be used for a maximum of 2 minutes of continuous operation, followed by 18 minutes pause
• Mains connection (V): 230
• Mains cable length to Transformer (mm): 3500
• Current (A): 3.7
• Hz: 50-60
• Electrical rating (IP): IPX4
• Power consumption (max. load) (W): 75
• Power consumption (standby) (W): 1.5
• Actuator (motor): LA31 Careline, (Linak), 1500N, IPX4
• Control box: CB9 Careline, (Linak), IPX6
• Wired remote control: HB3 (Linak), IP66
• Note: Upon installation the 2-pin plug must be removed and hard wired to a fused spur, as per electrical regulations

Materials:

• Washbasin lifter: Mainly constructed of anodised aluminium
• Front plate and the bottom plate: Made of polystyrene (PS)
• Wired hand control: Encased in polypropylene

Declaration of conformity:

• CE UK MDR-MASK-RoHS This product is in compliance with all relevant requirements of:
• Regulation (EU) 2017/745 on medical devices
• It also complies with all relevant requirements in the Council Directive 2006/42/EC (of 17 May 2006) on machinery and the Council Directive 2011/65/EC on RoHS
• Medical Device Regulation (MDR) 2002 on medical devices
• Supply of Machinery (Safety) Regulations 2008
• Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2012

Optional Pressalit recommended waste kit

• 700mm Flexible Feeds and 700mm Flexible Waste System (Product Code: R2075)

Warranty:

• 5 year manufacturer warranty

Manufacturer product codes:

• R4951000, R4951112
