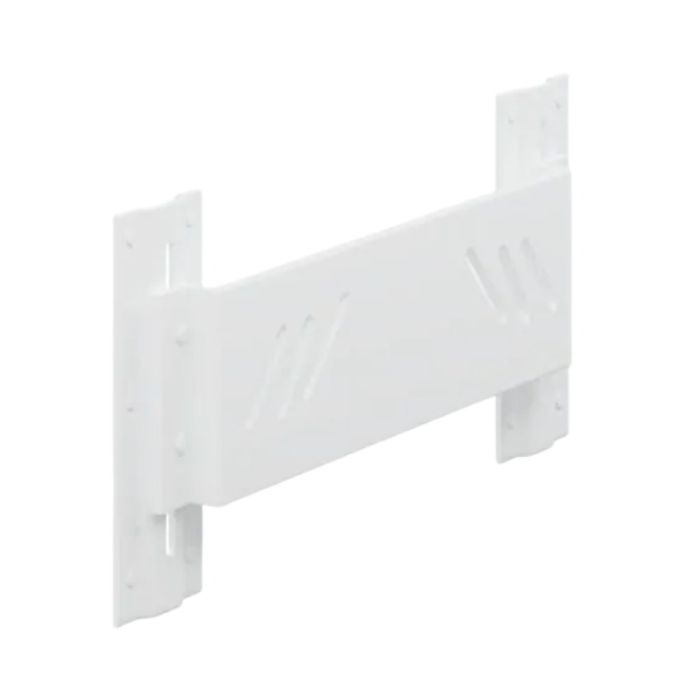

Pressalit VALUE Mounting Plate, Manually Height ADJ

Product Code: R1214000

Delivery in 2–3 working days

Collection in Ready in 2 hours

Accessories & Add-ons

£278.46 Incl. Vat
£232.05 Excl. Vat

Pressalit VALUE height adjustable washbasin bracket, for mounting the MATRIX Small and Curve/Curve Il washbasins.

Manually operated, it is suitable for occasional height adjustments.

With the bracket mounted at the recommended height, the washbasin can be adjusted by 150mm from 750mm to 900mm above floor level.

Key benefits:

  • Manually operated height adjustable washbasin bracket
  • Suitable for occasional adjustments up to 150mm
  • Adapts to progressive needs of individuals
  • Good access to working mechanism
  • For mounting the MATRIX Small and Curve/Curve Il washbasins
  • Includes fixing kit for brick wall
  • Rilsan-coated steel with clean white finish

Technical details:

  • Overall width of basin bracket (mm): 725
  • Width of washbasin bracket (mm): 600
  • Height of washbasin mounting plate (mm): 180
  • Width of wall each wall channel fixing (mm): 125
  • Height of each wall channel fixing (mm): 350
  • Height adjustment (mm): 150
  • For washbasins weighing (kg): 16-22
  • Maximum load (kg): 80
  • Weight (kg): 7.88
  • Colour: White

Declaration of conformity:

  • CE UK MDR This product is in compliance with all relevant requirements of:
  • - Regulation (EU) 2017/745 on medical devices
  • For the UK: - Medical Device Regulation (MDR) 2002 on medical devices

Materials:

  • Basic material: Steel
  • Surface material: Rilsan coated

Optional Pressalit WRAS approved waste kit:

  • 500mm Flexible Feeds and 700mm Flexible Waste System (Product Code: R2071)
  • 700mm Flexible Feeds and 700mm Flexible Waste System (Product Code: R2075)

Warranty:

  • 5 year manufacturer warranty

Please note:

  • This bracket is NOT suitable for regular height adjustments on a daily basis
  • It requires two people to raise/lower the attached basin, and so should only be used for occasional height adjustments

Manufacturer Pressalit
Bracket Range Pressalit VALUE
Bracket Operation Manual
Bracket Adjustment Bolt Adjustment
Height Adjustment (mm) 150
For Washbasin Range MATRIX Curve, MATRIX Small
Bracket Mounting Wall
Safety Stop No
