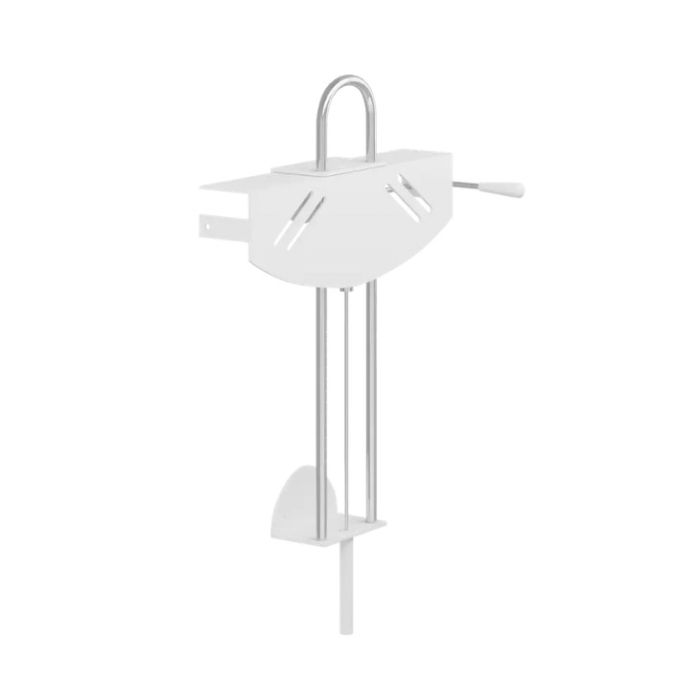

Pressalit VALUE Washbasin Bracket, Manually Height ADJ, Gas Lever

Pressalit VALUE height adjustable washbasin bracket, for mounting the MATRIX Small and Curve/Curve Il washbasins.

Manually operated with lever control, the integrated gas cylinder assists the user in raising and lowering the washbasin to the required height.

The bracket allows for 315mm of continuous height adjustment.

Key benefits:

• Height adjustable washbasin lift
• Manual operation with gas-assisted lever control
• For standing or seated users
• Adapts to progressive needs of individuals
• Can be height adjusted 315mm from 660 to 975mm
• Manual operation with gas-assisted lever control
• Lever control arm can be installed on the left or right hand side
• Ideal for multi-user environments such as care homes
• Good access to working mechanism
• Note: Assistance is required to push the rear of the washbasin on the downward stroke
• Clean white finish
• For mounting the MATRIX Small and Curve/Curve Il washbasins

Technical details:

• Height adjustment range (mm): 320
• Total width of bracket (mm): 540
• Total height of bracket (mm): 860
• Height of basin fixing plate (mm): 180
• Protrusion of bracket from the wall (excluding lever arm) (mm): 105
• Protrusion of lever arm from the wall (mm): 270
• Flexible washbasin mounting c/c range (mm): 270 to 470
• Suitable for washbasins that weigh (kg)16-22
• Maximum load (kg): 80
• Bracket weight (kg): 12.42
• Includes fixing bolts for washbasin
• Includes fixings for brick wall. The plugs not supplied, the installer should select according to the wall type
• Colour: White

Materials:

• Basic material: Steel
• Surface material: Rilsan coated

Declaration of conformity:

• CE UK MDR-MASK This product is in compliance with all relevant requirements of:
• - Regulation (EU) 2017/745 on medical devices
• - Council Directive 2006/42/EC on machinery

For the UK:

• - Medical Device Regulation (MDR) 2002 on medical devices
• - Supply of Machinery (Safety) Regulations 2008

Optional Pressalit WRAS approved waste kit:

• 500mm Flexible Feeds and 700mm Flexible Waste System (Product Code: R2071)
• 700mm Flexible Feeds and 700mm Flexible Waste System (Product Code: R2075)

Warranty:

• 5 year manufacturer warranty
