Purus Plate 130

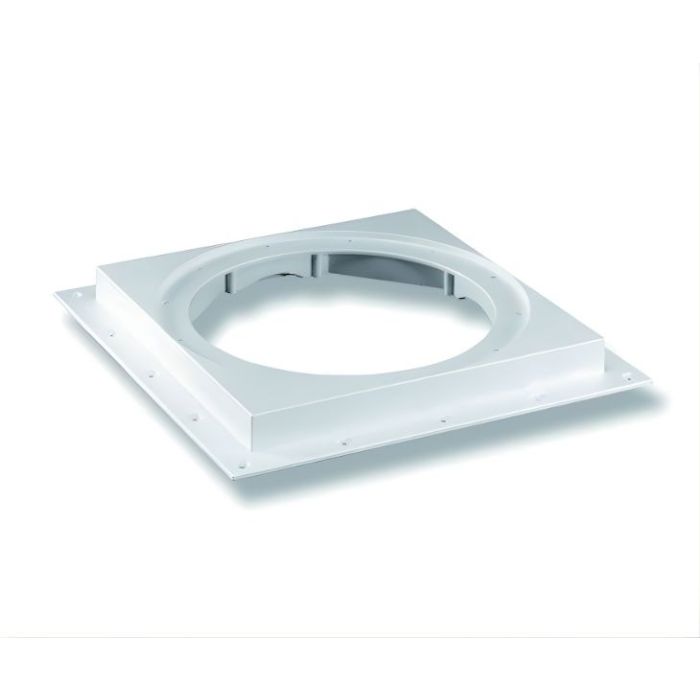

The Purus Plate 130 is a mounting frame to fix the Minimax range of Purus wastes into a timber floors and for building falls into timber floors when a floor former is not being used, suitable for use with vinyl flooring and wet room tanking systems.

Constructed from ABS plastic, the cut-out has a diameter of 197mm that will accept the waste listed below.

Technical details:

• Overall dimensions (mm): 240 x 240
• Waste mounting deck (raised internal square) (mm): 200 x 200
• Total height (mm): 25
• Overall diameter of cut-out (mm): 197
• Suitable for use with vinyl or tiled floor finishes
• Ideal for building falls into timber floors

Compatible Purus wastes:

• Product Code: 7113764UK - Purus Minimax 50, Horizontal Outlet - OPT Security Fixings
• Product Code: 52719 - Purus Minimax 2-Part Wet Floor Gulley, HORIZ Outlet - OPT Security Fixings
• Product Code: 7113538UK - Purus Mini Brage 110 Vertical Outlet - OPT Security Fixings
• Product Code: 7113539UK - Purus Mini Brage 50 Vertical Waste Outlet - OPT Security Fixings
• Product Code: 7113535UK - Purus Mini Oden 50, Horizontal Outlet - OPT Security Fixings
