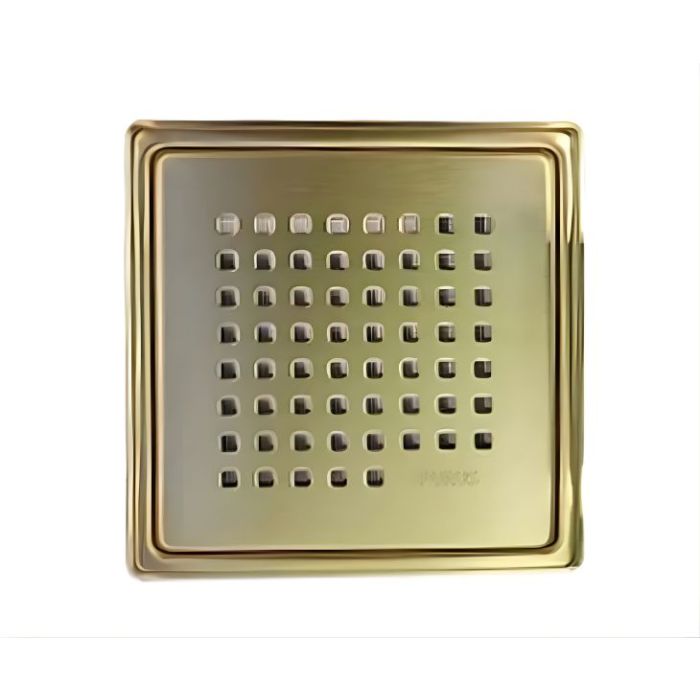

Purus SS PVD Coated Chess Design Grid for Tiled Floors, 155x155mm - Brushed Brass

Brushed Brass PVD coated luxury stainless steel square tiling frame with removable Chess design grid. Create a premium finishing touch to any tiled wet room floor.

PVD (Physical Vapour Deposition) is Titanium Ion Plating which improves the performance of stainless steel by increasing wear, scratch and corrosion resistance making its durability far superior to conventional coating methods such as electroplating or powder-coating.

The two-part grate is designed for use with 130mm diameter wastes and the all Purus Mini, Max, Oden Brage wastes.

The frame should be placed centrally over the waste so to allow full access to the trap for cleaning.

Start tiling the floor former from the edge of the frame outwards, on completion of the grouting fill the joint between the frame and tiles with silicone sealant.

The grid is removable for access and maintenance of the Purus wastes below.

Technical details:

• Dimensions: 155 x 155mm
• Height: 6mm
• Grate design style: Chess design grid and frame
• Material: Stainless steel
• Finish: Durable Brushed Brass PVD coated finish
• Load Class K3 (300kg)
• The frame can be rotated to the desired location of the tiles

Compatible with:

• Purus Minimax 50 with Horizontal Outlet (Product Code: 7113764UK)
• Purus Minimax 2-Part Wet Floor Gulley, Horizontal Outlet (Product Code: 52719)
• Purus Mini Brage 110 Vertical Outlet (Product Code: 7113538UK-F)
• Purus Mini Brage 50 Vertical Waste Outlet (Product Code: 7113539UK)
• Purus Mini Oden 50, Horizontal Outlet (Product Code: 7113535UK)
