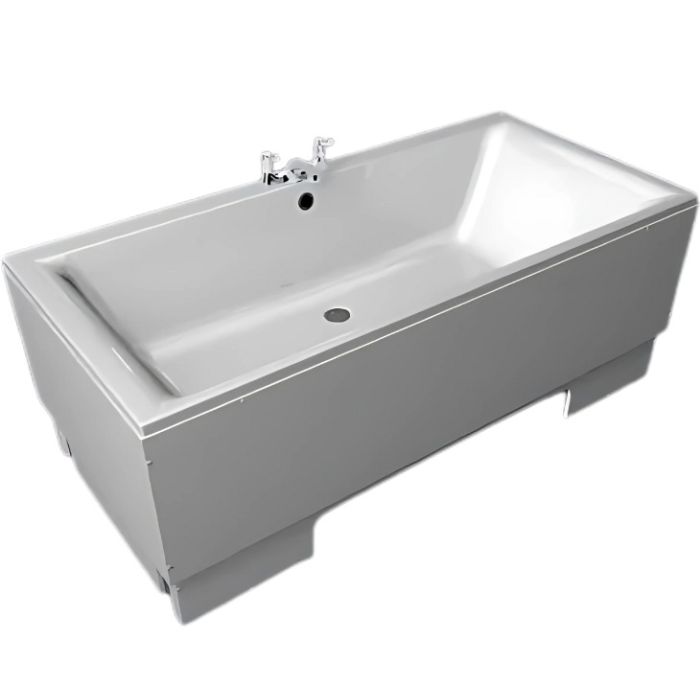

Renaissance Bariatric Excel 400 Height Adjustable Bath 1900x900mm - Full or Hoist Panels

The Renaissance height adjustable bariatric bath is wider and longer than most baths. The bath with full panels is intended for use with overhead ceiling track hoists with slings and/or cradles and the bath with hoist access panels is designed for use with mobile hoists. Hence this bath is supplied without a lifting/swing seat.

With 340mm of height adjustment the bath prevents repetitive strain on the carer's back, as the bath can be raised or lowered to the carer's desired position.

Key benefits:

• Height adjustable bath, with a stepless range of 340mm
• Includes all panels: 1x front and 1x rear panels, 2x end panels
• Electrically operated with battery backup for client evacuation, in the event of power failure
• Centre chrome pop-up waste
• Bath height in raised position (mm): 1060
• Bath height in lowered position (mm): 720
• Front panel cut-out for hoist access (mm): 1030 L x 150 H
• Safe-working Load 30st / 185kg
• Acrylic bath shell, manufactured in the UK, CE compliant

Handset:

• Easy to use
• The “Bath up” button raises the bath to a comfortable height
• The “Bath down” button lowers the bath after bathing
• The bath can be stopped at any height by simply lifting your finger off the button

Choice of Hoist or Full Front / Rear Panel:

• Select as required
• Hoist access front / rear panel or Full front / rear panel

Tap options, supplied fitted and plumbed:

• Pair of Lever Taps with Underbath TMV3 Valve - WRAS approved
• Bath Filler with Underbath TMV3 Valve - WRAS approved. Giving you the ability to control the water temperature through one outlet
• TMV2 Bath/Shower mixer is popular in a domestic situation, Ideal if the bath is used primarily by one person. (Not suitable for commercial installations i.e care homes)
• Bath/shower Mixer with Top-fixing shower with Underbath TMV3 Valve - WRAS approved
• If taps are NOT selected, the bath will be supplied with tap holes undrilled

Shower option: Note: A bath filler not included

• TMV3 Shower System CAT5 Fluid Safe (Shepherd's Crook) is the necessary choice in multi-user situations for commercial installations i.e. care homes

Sensory options:

• To make the bathing experience more enjoyable and relaxing, the bath can be customised with three sensory systems:

Optional Air Spa System:

• The Air Spa system has 12 jets in the base of the bath and has three settings and auto-dry
• 1 - Pressing the button once gives a gentle massage effect
• 2 - Pressing it again gives a stronger massage
• 3 - Pressing it a third time gives a vigorous massage
• 4 - A fourth press switches the system off
• Once the bath has drained, the system will briefly operate to dry out the jets
• Note: The Air jets are not recessed and are "proud" of the surface of the bath

Optional Colour-changing Lights:

• Pair of Chromotherapy Colour-Changing Lights
• These can be set at one specific colour, by pressing the “manual” button
• Pressing the “auto” button the lights slowly change from one colour to another flooding your bath with soothing light

Optional Bluetooth Wireless Sound System:

• The Bluetooth Audio system allows you to connect wirelessly to a system so that you can listen to music or audio books; whatever is your preference

Delivery:

• Standard delivery - one man delivering to curbside
• Two man delivery - delivery to ground floor bathroom
• Please contact us if the intended location of the bath is beyond the ground floor or is difficult to access

Commissioning:

• Commissioning by Renaissance ensures correct installation and training on safe use of the bath
• This is optional for domestic installations, but is essential for commercial properties to maintain LOLER compliance
• Ongoing Service and Maintenance Packages are available to ensure a trouble-free, long-term future

Electrical requirements:

• 230V AC supply - requires a 30mA RDC with a 4A waterproof switched fused spur (not supplied)
• Supplied with a standard UK 3 pin plug for testing and setting up purposes, this must be removed and wired to your 4A waterproof fused spur
• Backup battery requires a continuous power supply to maintain the batteries condition
• All electrical installations should be performed by a qualified electrician

Warranty:

• Mechanical and electronic components have a full 12 month warranty
• Bath shell has a 25 year manufacturer guarantee against material and manufacturing defects

Please note:

• The bath filler taps shown in the main image are not included
• These baths are custom-made, once the manufacturing process has begun, we cannot accept returns
• Upon placing your order you will be required to complete and return an order form prior to manufacture

Manufacturer product codes:

• 1990XL4CF, 1990XL4CH
