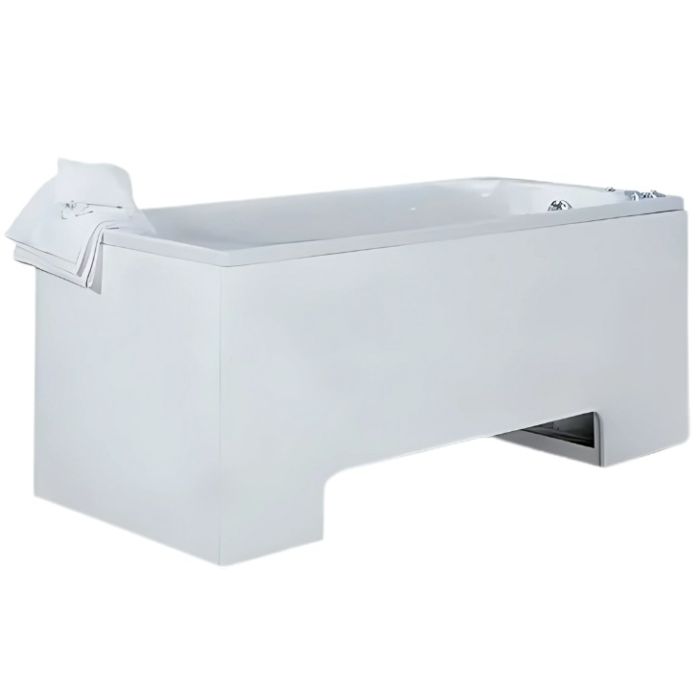

Renaissance Excel 100 Fixed Bath, Full or Hoist Panels - Choice of Size & Waste

The Renaissance Excel 100 is a fixed height bath with a cut front panel for use with mobile hoists or a full front panel where an overhead track hoist is used to lift the bather in and out of the bath.

Key benefits:

• Fixed height bath with front mobile hoist access panel or full front panel for use with overhead track hoists
• 1700x750mm End waste
• 1700x750mm Centre waste
• 1800x800mm End waste
• 1900x900mm End waste* Hoist panels only
• Chrome pop-up waste in a end or central position
• Bath height (mm): 720
• Front panel cut-out for hoist access (mm): 1030 L x 150 H
• Max. load 30st / 185kg
• Acrylic bath shell, manufactured in the UK, CE compliant

Optional Luxury changing top for use with hoists:

• Compatible with the 1700 and 1800mm baths only
• Removable changing top, with removable machine washable mesh cover. The optional head and support cushions are shown in the image
• Luxury Changing Top (For use with 1700x750mm centre waste bath)
• Luxury Changing Top (For use with 1800x800mm end waste bath)

Panel options:

• The bath includes a front hoist access panel or full panel for overhead hoists as standard
• Front panel cut-out for hoist access (mm): 1030 L x 150 H
• Rear and end panels are available as additions, where installing the bath end on, or centrally in a room

Tap options, supplied fitted and plumbed:

• Pair of Lever Taps with Underbath TMV3 Valve - WRAS approved
• Bath Filler with Underbath TMV3 Valve - WRAS approved. Giving you the ability to control the water temperature through one outlet
• TMV2 Bath/Shower mixer is popular in a domestic situation, Ideal if the bath is used primarily by one person. (Not suitable for commercial installations i.e. care homes)
• Bath/shower Mixer with Top-fixing shower with Underbath TMV3 Valve - WRAS approved
• If taps are NOT selected, the bath will be supplied with tap holes undrilled

Shower option: Note: A bath filler not included

• TMV3 Shower System CAT5 Fluid Safe (Shepherd's Crook) is the necessary choice in multi-user situations for commercial installations i.e. care homes

Sensory options:

• To make the bathing experience more enjoyable and relaxing, the bath can be customised with three sensory systems:

Optional Air Spa System:

• The Air Spa system has 12 jets in the base of the bath and has three settings and auto-dry
• 1 - Pressing the button once gives a gentle massage effect
• 2 - Pressing it again gives a stronger massage
• 3 - Pressing it a third time gives a vigorous massage
• 4 - A fourth press switches the system off
• Once the bath has drained, the system will briefly operate to dry out the jets
• Note: The Air jets are not recessed and are "proud" of the surface of the bath

Optional Colour-changing Lights:

• Pair of Chromotherapy Colour-Changing Lights
• These can be set at one specific colour, by pressing the “manual” button
• Pressing the “auto” button the lights slowly change from one colour to another flooding your bath with soothing light

Optional Bluetooth Wireless Sound System:

• The Bluetooth Audio system allows you to connect wirelessly to a system so that you can listen to music or audio books; whatever is your preference

Electrical requirements - Required for optional extras only:

• 230V AC supply - requires a 30mA RDC with a 4A waterproof switched fused spur (not supplied)
• Supplied with a standard UK 3 pin plug for testing and setting up purposes, this must be removed and wired to your 4A waterproof fused spur
• All electrical installations should be performed by a qualified electrician

Warranty:

• Mechanical and electronic components have a full 12 month warranty
• Bath shell has a 25-year manufacturer guarantee against material and manufacturing defects

Delivery:

• Standard delivery - one man delivering to curb side
• Two-man delivery - delivery to ground floor bathroom
• Please contact us if the intended location of the bath is beyond the ground floor or is difficult to access

Please note:

• These baths are custom-made, once the manufacturing process has begun, we cannot accept returns
• Upon placing your order you will be required to complete and return an order form prior to manufacture

Manufacturer product codes:

• 1775XL1CH, 1775XL1EH, 1880XL1EH, 1775XL1CF, 1775XL1EF, 1880XL1EF, 1990XL1EH
