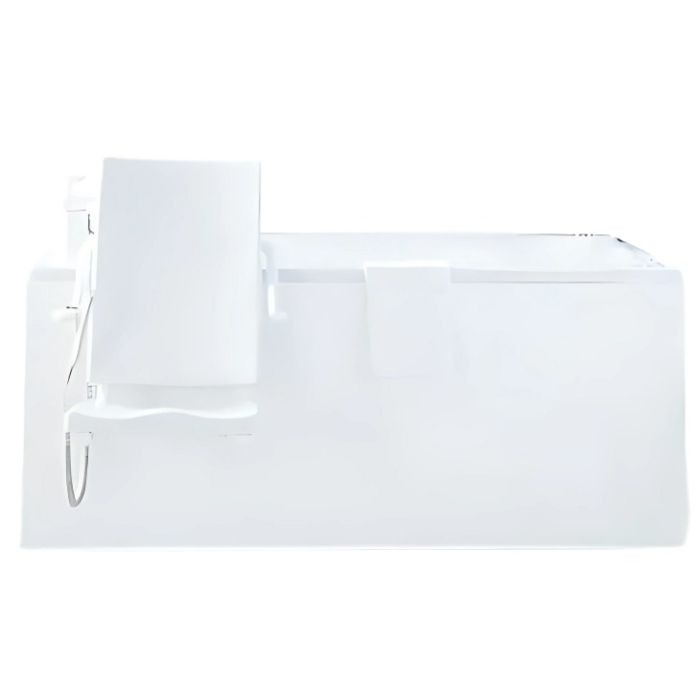

Renaissance Excel 300 Fixed Bath, Powered Swing Seat, Full or Hoist Panels - Choice of Size & Waste

The Renaissance Excel 300 is a fixed height bath with powered seat, moving both up and down as well as traversing in and out of the bath.

With a host of customisable options, the Excel 300 is an ideal choice in many care situations, assisting the bather to enter and exit the bath safely.

Key benefits:

• Fixed height bath with powered swing seat
• Electrically operated with battery backup for client evacuation, in the event of power failure
• Seat has a removable insert to ease cleaning
• Choice of size - 1700x750mm or 1800x800mm with left or right swinging seat
• Choice of waste location - End or Centre
• Chrome pop-up waste in a choice of position - opposing end of seat or centre
• Bath height (mm): 720
• Seat height (out of bath) in raised position (mm): 863
• Seat height (out of bath) in lowered position (mm): 473
• Safe-working Load 24st / 150kg
• Acrylic bath shell, manufactured in the UK, CE compliant

Handset:

• Easy to use
• The “Seat in” button lifts the seat up, swings it over and then lowers it into the bath
• The “Seat out” does the reverse, it lifts the seat up out of the bath, swings it over the side and them lowers it on the outside of the bath
• The seat can be stopped at any point by simply taking your finger off the button

Panel options:

• Full front panel or hoist access front panel
• Front panel cut-out for hoist access (mm): 1030 L x 150 H
• Additional rear and end panels are available, select as required

Tap options, supplied fitted and plumbed:

• Pair of Lever Taps with Underbath TMV3 Valve - WRAS approved
• Bath Filler with Underbath TMV3 Valve - WRAS approved. Giving you the ability to control the water temperature through one outlet
• TMV2 Bath/Shower mixer is popular in a domestic situation, Ideal if the bath is used primarily by one person. (Not suitable for commercial installations i.e care homes)
• Bath/shower Mixer with Top-fixing shower with Underbath TMV3 Valve - WRAS approved
• If taps are NOT selected, the bath will be supplied with tap holes undrilled

Shower option: Note: A bath filler not included

• TMV3 Shower System CAT5 Fluid Safe (Shepherd's Crook) is the necessary choice in multi-user situations for commercial installations i.e. care homes

Seat upgrades:

• Lap Belt - for securing bather in the seat
• Nursing Arms - improves comfort by allowing bather to rest arms

Sensory options:

• To make the bathing experience more enjoyable and relaxing, the bath can be customised with three sensory systems:

Optional Air Spa System:

• The Air Spa system has 12 jets in the base of the bath and has three settings and auto-dry
• 1 - Pressing the button once gives a gentle massage effect
• 2 - Pressing it again gives a stronger massage
• 3 - Pressing it a third time gives a vigorous massage
• 4 - A fourth press switches the system off
• Once the bath has drained, the system will briefly operate to dry out the jets

Optional Colour-changing Lights:

• Pair of Chromotherapy Colour-Changing Lights
• These can be set at one specific colour, by pressing the “manual” button
• Pressing the “auto” button the lights slowly change from one colour to another flooding your bath with soothing light

Optional Bluetooth Wireless Sound System:

• The Bluetooth Audio system allows you to connect wirelessly to a system so that you can listen to music or audio books; whatever is your preference

Delivery:

• Standard delivery - one man delivering to curbside
• Two man delivery - delivery to ground floor bathroom
• Please contact us if the intended location of the bath is beyond the ground floor or is difficult to access

Commissioning:

• Commissioning by Renaissance ensures correct installation and training on safe use of the bath
• This is optional for domestic installations, but is essential for commercial properties to maintain LOLER compliance
• Ongoing Service and Maintenance Packages are available to ensure a trouble-free, long-term future

Electrical requirements:

• 230V AC supply - requires a 30mA RDC with a 4A waterproof switched fused spur (not supplied)
• Supplied with a standard UK 3 pin plug for testing and setting up purposes, this must be removed and wired to your 4A waterproof fused spur
• Backup battery requires a continuous power supply to maintain the batteries condition
• All electrical installations should be performed by a qualified electrician

Warranty:

• Mechanical and electronic components have a full 12 month warranty
• Bath shell has a 25 year manufacturer guarantee against material and manufacturing defects

Please note:

• These baths are custom-made, once the manufacturing process has begun, we cannot accept returns
• Upon placing your order you will be required to complete and return an order form prior to manufacture

Manufacturer product codes:

• 1775XL3CLF, 1775XL3CLH, 1775XL3CRF, 1775XL3CRH, 1775XL3ELF, 1775XL3ELH, 1775XL3ERF, 1775XL3ERH, 1880XL3ELF, 1880XL3ELH, 1880XL3ERF, 1880XL3ERH
