Renaissance Excel 600 Height Adjustable Bath, Powered Swing Detachable Transporter Seat, Hoist Panels - Choice of Size & Waste

The Renaissance Excel 600 is a height adjustable bath for use in nursing situations or where particular care is required.

The electrically operated bath rises smoothly and quietly once the seat has been gently powered into the bath by the hand control.

This bath offers the ability to the bather to move from the bedroom to the bath. The detachable Seat with transporter enables this to happen.

Once in the bathroom the seat can be lifted off the Transporter, straight into the bath, without the need for further lifting/handling of the bather.

With a host of customisable options, the Excel 600 is an ideal choice for care situations, assisting the bather to enter and exit the bath safely, while allowing the carer to move the bath to comfortable working height.

Key benefits:

• 340mm Height adjustable bath with with powered swing detachable seat, that mounts onto the wheeled Transporter
• The Transporter: Once the seat has been lowered onto the Transporter the person can be wheeled to another room with ease
• Electrically operated height adjustable bath and lifting seat with traverse
• The transporters seat has removable insert, to allow more personal cleaning from underneath the seat
• Electrically operated with battery backup for client evacuation, in the event of power failure
• Seat has a removable insert to ease cleaning
• Choice of size and handing
• Chrome pop-up waste in a choice of position - opposing end of seat or centre
• Includes strong, robust, MDF panels: 2x hoist access side panels, 2x end panels
• Bath height Low / High lifting range (mm): 720 to 1060
• Bath height in raised position (mm): 1060
• Bath height in lowered position (mm): 720
• Seat height (out of bath) in raised position (mm): 863
• Seat height (out of bath) in lowered position (mm): 473
• Front panel cut-out for hoist access (mm): 1030 L x 150 H
• Safe-working Load 24st / 150kg
• Acrylic bath shell, manufactured in the UK, CE compliant

Handset had 4 simple control buttons:

• Easy to use
• The “Seat in” button lifts the seat up, swings it over and then lowers it into the bath
• The “Bath up” button raises the bath to a comfortable height
• The “Bath down” button lowers the bath after bathing
• The “Seat out” does the reverse - lifts the seat up out of the bath, swings it over the side and then lowers on the outside of the bath
• The seat can be stopped at any point by simply taking your finger off the button

Safety Feature

• If mains power is lost at any time, an alarm will sound if the handset is in use
• The bath will then simply lower and the seat will lift out of the bath and come to a stop once it has reached its lowest point outside the bath
• Neither the seat nor the bath will move again until the mains electric has been restored

Tap options, supplied fitted and plumbed:

• Pair of Lever Taps with under bath TMV3 Valve - WRAS approved
• Bath Filler with under bath TMV3 Valve - WRAS approved. Giving you the ability to control the water temperature through one outlet
• TMV2 Bath/Shower mixer is popular in a domestic situation, Ideal if the bath is used primarily by one person. (Not suitable for commercial installations i.e. care homes)
• Bath / shower Mixer with Top-fixing shower with under bath TMV3 Valve - WRAS approved
• If taps are NOT selected, the bath will be supplied with tap holes undrilled

Shower option: Note: A bath filler not included

• TMV3 Shower System CAT5 Fluid Safe (Shepherd's Crook) is the necessary choice in multi-user situations for commercial installations i.e. care homes

Seat upgrades:

• Lap Belt - for securing bather in the seat
• Nursing Arms - improves comfort by allowing bather to rest arms

Sensory options:

• To make the bathing experience more enjoyable and relaxing, the bath can be customised with three sensory systems:

Optional Air Spa System:

• The Air Spa system has 12 jets in the base of the bath and has three settings and auto-dry
• 1 - Pressing the button once gives a gentle massage effect
• 2 - Pressing it again gives a stronger massage
• 3 - Pressing it a third time gives a vigorous massage
• 4 - A fourth press switches the system off
• Once the bath has drained, the system will briefly operate to dry out the jets

Optional Colour-changing Lights:

• Pair of Chromotherapy Colour-Changing Lights
• These can be set at one specific colour, by pressing the “manual” button
• Pressing the “auto” button the lights slowly change from one colour to another flooding your bath with soothing light

Optional Bluetooth Wireless Sound System:

• The Bluetooth Audio system allows you to connect wirelessly to a system so that you can listen to music or audio books; whatever is your preference

Delivery:

• Standard delivery - one man delivering to curb side
• Two man delivery - delivery to ground floor bathroom
• Please contact us if the intended location of the bath is beyond the ground floor or is difficult to access

Commissioning:

• Commissioning by Renaissance ensures correct installation and training on safe use of the bath
• This is optional for domestic installations, but is essential for commercial properties to maintain LOLER compliance

Electrical requirements:

• 230V AC supply - requires a 30mA RDC with a 4A waterproof switched fused spur (not supplied)
• Supplied with a standard UK 3 pin plug for testing and setting up purposes, this must be removed and wired to your 4A waterproof fused spur
• Backup battery requires a continuous power supply to maintain the batteries condition
• All electrical installations should be performed by a qualified electrician

Warranty:

• Mechanical and electronic components have a full 12 month warranty
• Bath shell has a 25 year manufacturer guarantee against material and manufacturing defects

Please note:

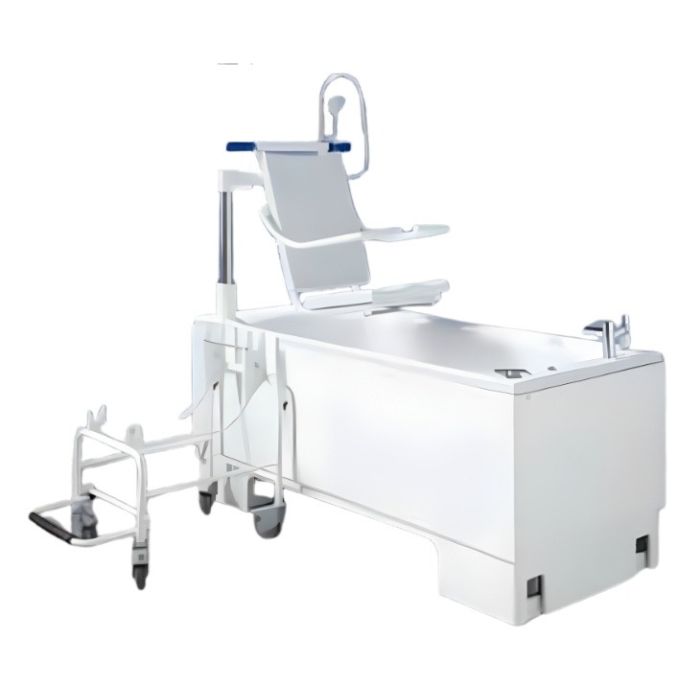

• Main image shows the bath with taps, CAT5 Fluid Safe shower and nursing armrests - these are available as additions above
• These baths are custom-made, once the manufacturing process has begun, we cannot accept returns
• Upon placing your order you will be required to complete and return an order form prior to manufacture

Manufacturer product codes:

• 1775XL6ELDS, 1775XL6ERDS, 1775XL6CLDS, 1775XL6CRDS, 1880XL6ELDS, 1880XL6ERDS
