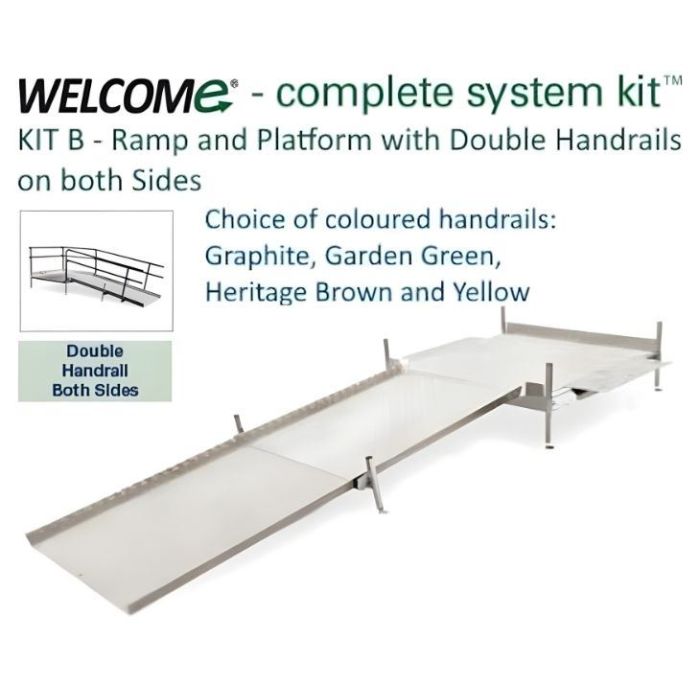

Welcome Kit B, 122cm Sq. Platform, Plus Choice of Ramp Length 120 to 480cm, STD Ht. 38cm - 2x Dbl Handrails, 4x Colours

Welcome modular wheelchair ramp system for outward opening doors and where a rest area is required. The platform can be used in both straight through and turning configurations. With two double handrails available in 4x colour combinations, located on both sides of the ramp.

Available in a range of ramp lengths 120cm (4ft) to 480cm (16ft), plus a 122cm (4ft) square platform with a standard door plate 80 x 15cm (2ft 6.2”), that can be placed on any side. Larger platforms can be created by joining platforms together (Product Code: WRP12-G) order separately.

This system offers fast assembly, by one person and can be easily transported, dismantled and re-assembled and re-used as required. Offering huge benefits over traditional concrete ramps.

Suitable for a minimum step height 12.5cm (5”) to 38cm (15”) that can be increased to a maximum height of 55cm (22”) with Leg Extensions (Product Code: WLX).

Straight ramp kits without a platform are also available.

Key benefits:

• Fully compliant with Building Regulations Document M for residential dwellings
• Extremely durable construction and finish - designed for years of outdoor use
• Easily modified, adapted and reused
• Fast one-person install the heaviest component is 16kg
• The Gripdeck wearing surface is friendly to pets, high heels and has a superb grip when wet
• Built to last, the system has a huge 400kg capacity
• The handrails are pre-galvanised steel with a powder coated finish that is durable yet ‘warm to the touch’
• Height adjustable legs can be adjusted to suit ground variations and a range of step heights
• Standard self-supporting 80 x 15cm doorplate included
• Range of optional extra wider / deeper doorplates available
• Materials: Aluminium and galvanised steel
• Designed, manufactured and stocked in the UK for delivery in 1 to 3 days depending on your Postcode

Choice of 4x handrail colour combinations:

• Original Graphite: Universally appealing soft dark grey - Posts and upper rail
• Garden Green: A traditional deep green, perfect for garden environments - Posts and upper rail
• Heritage Brown: A dark, rich brown to complement traditional and heritage buildings - Posts and upper rail
• Safety Yellow: A rich yellow, perfect for visual safety needs
• Safety Yellow horizontal rails: Posts in Original Graphite
• All rails have Black plastic end caps and Black straps securing the horizontal rail
• Colour matched Bowends also available for the end of the Double handrail (Product Code: WRBE) order separately

Technical specification:

• Overall length of platform and ramp - 240cm (8ft) to 600cm (20ft)
• Range of ramp lengths, see menu list - 120cm (4ft) to 480cm (16ft)
• Internal ramp width - 90cm (3ft)
• External ramp width - 100cm (39.4”)
• Kerb height - 8cm (3”)
• Platform width - 122cm (4ft)
• Platform length - 122cm (4ft)
• Platform - Minimum installed height 12.5cm (5”)
• Platform - Maximum installed height 38cm (15”)
• Mid rail height - 60cm (24”)
• Upper rail height - 90cm (35”)
• Leg Extensions (Product Code: WLX) order separately in pairs - Maximum installed height 55cm (22”)

Warranty:

• 10-year Design life

Manufacturer product codes:

• WRB12-E, WRB18-E, WRB24-E, WRB30-E, WRB36-E, WRB42-E, WRB48-E
